Data Event Poller: DB2UDBPublishByReference Project

The MSSQLPublishByReference project contains one process: db2udbpublishbyreference.PubByRef process. This project demonstrates how the plug-in handles polling of data from a referenced object.

PubByRef Process

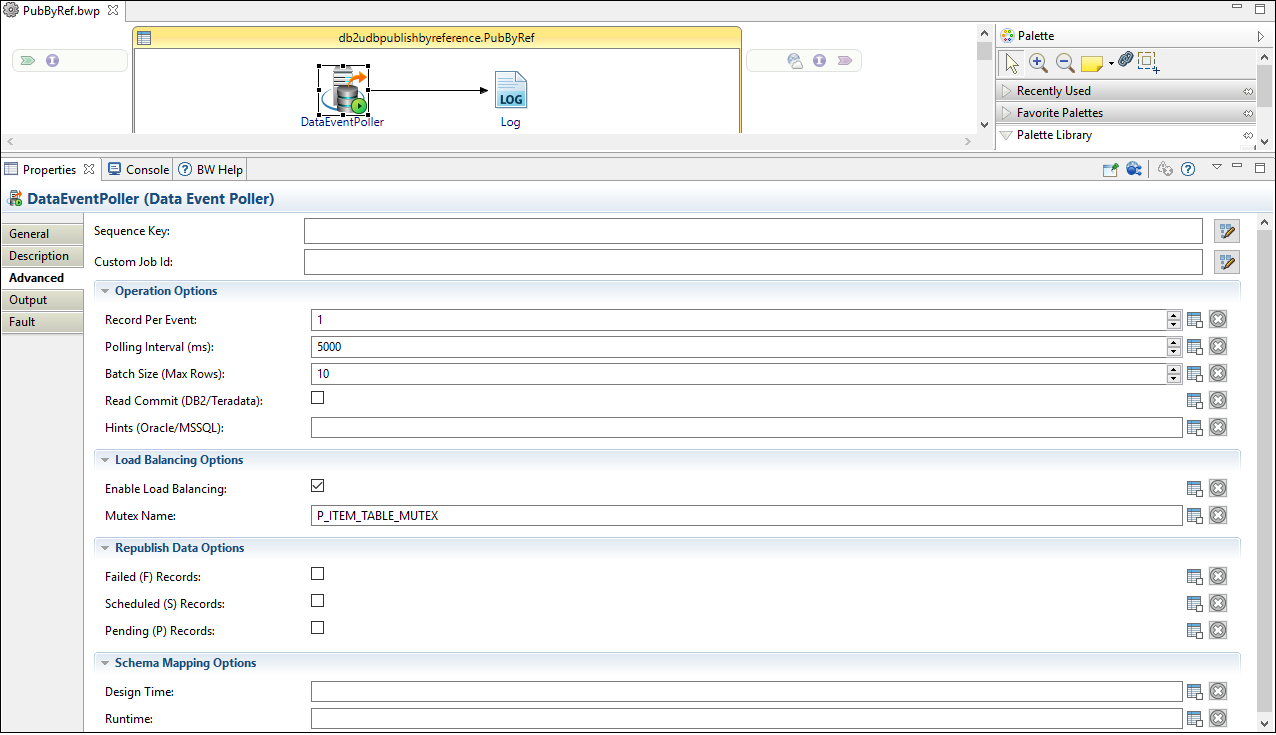

In this example, the DataEventPoller activity polls the data from the referenced object. The following figure shows the PubByRef process:

JDBC Connection Resource

In this example, the JDBC Connection resource is configured as follows:

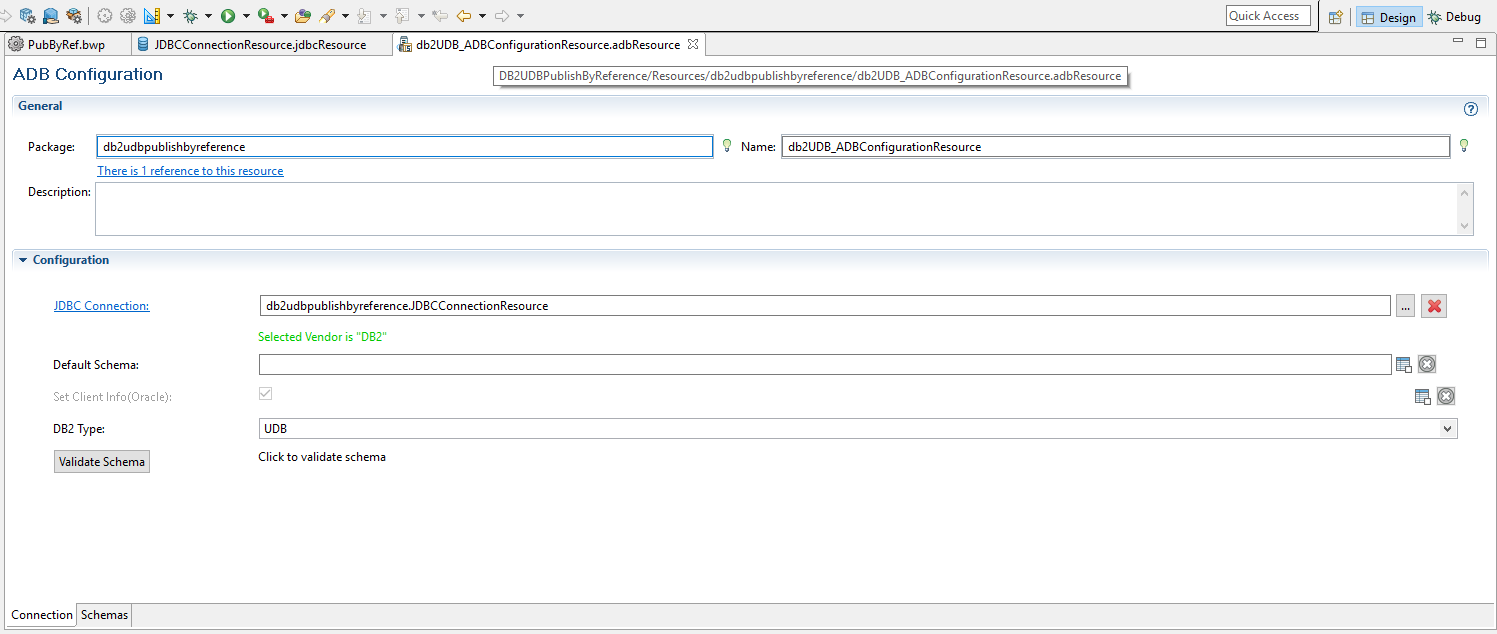

ADB Configuration Resource

In this example, the ADB Configuration resource is configured as follows:

The table schema is defined by using the Schemas tab. The different tabs on the right are shown below.

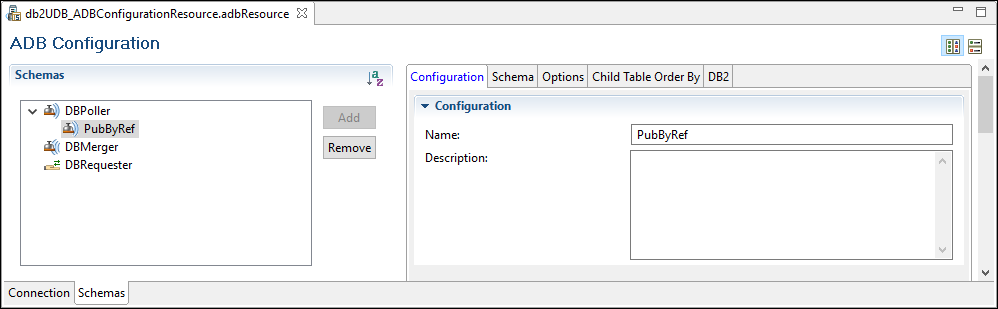

The Configuration tab:

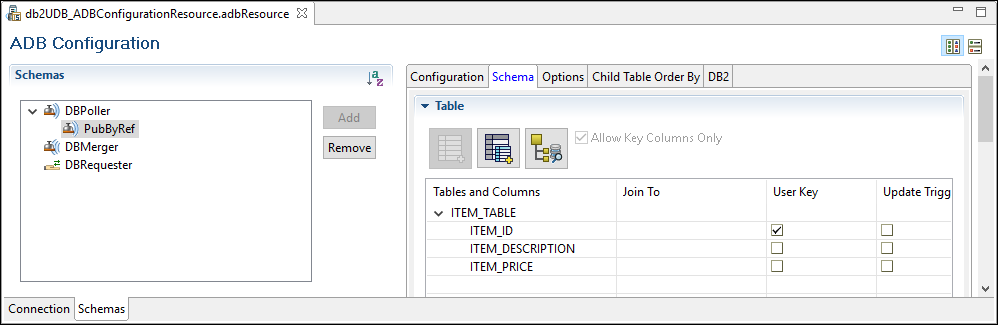

The Schema tab:

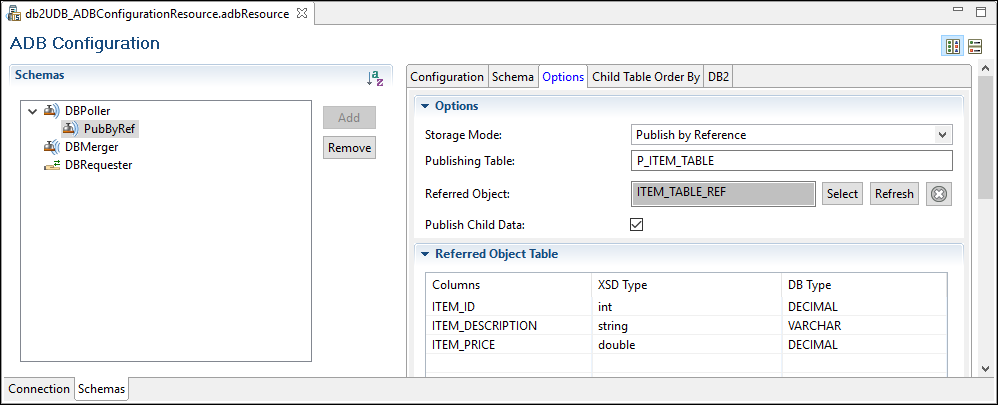

The Options tab:

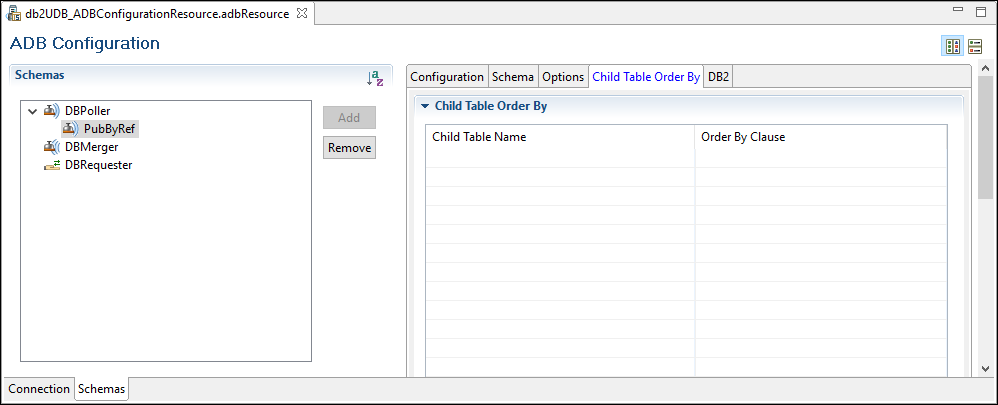

The Child Table Order By tab:

The DB2 tab:
