The MSSQLServerDataMergerParent project contains one process:
mssqldatamergerparent.ParentData process. This process demonstrates how the plug-in inserts data in the parent table.
ParentData Process

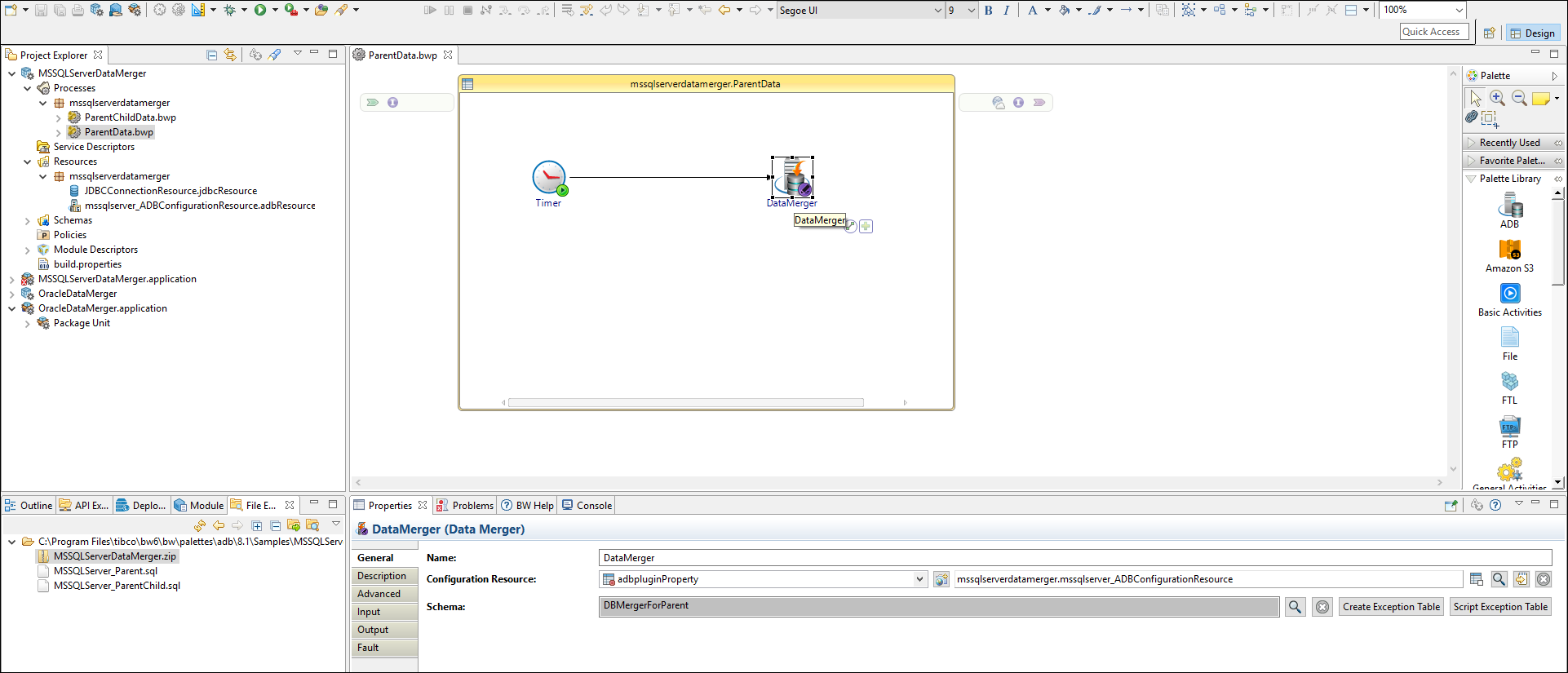

The following figure shows the
ParentData process:
JDBC Connection Resource
In this example, the JDBC Connection resource is configured as follows:
ADB Configuration Resource

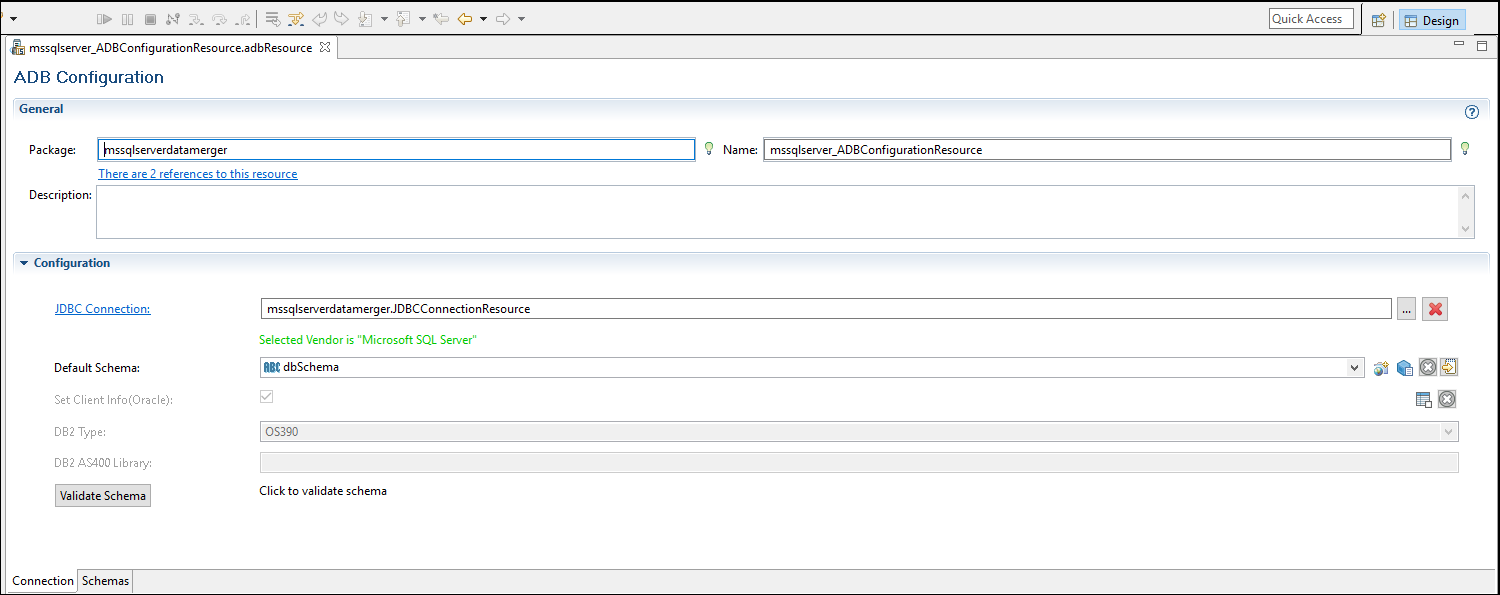

In this example, the ADB Configuration resource is configured as follows:
The table schema is defined by using the Schema tab. The different tabs on the right are shown below.

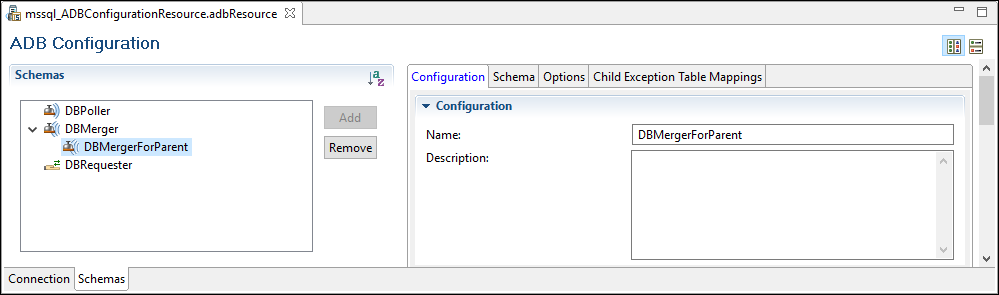

The Configuration tab:

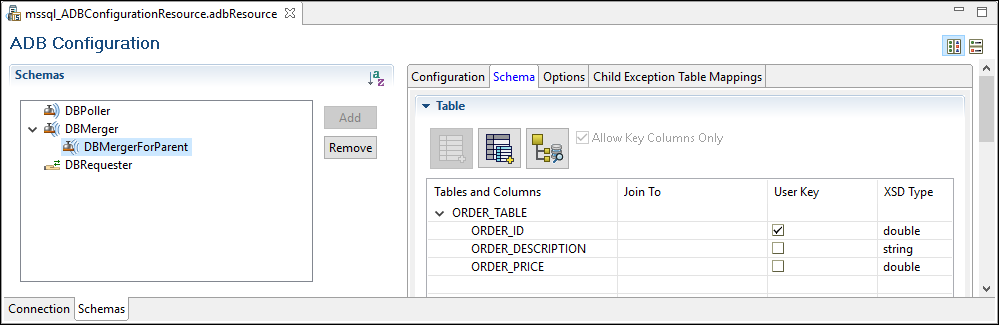

The Schema tab:

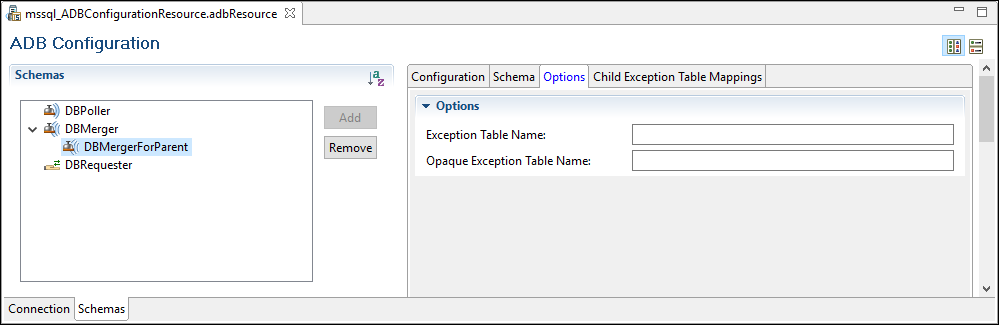

The Options tab:

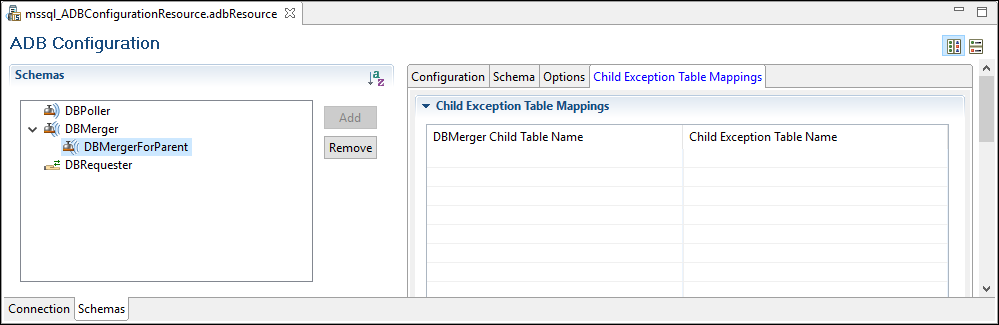

The Child Exception Table Mappings tab:
