Overview
Advanced Message Queuing Protocol (AMQP) is an open standard for passing business messages between applications or organizations. This protocol is used to connect systems, provide business processes with the information they require, and reliably transmit instructions to achieve the goals of applications.
By using this plug-in, you can send messages to or receive messages from an AMQP broker queue. In addition, you can also use this plug-in to subscribe to messages from an AMQP broker queue.
You can also publish messages and subscribe to the messages sent to the topic entity for Azure Service Bus broker.

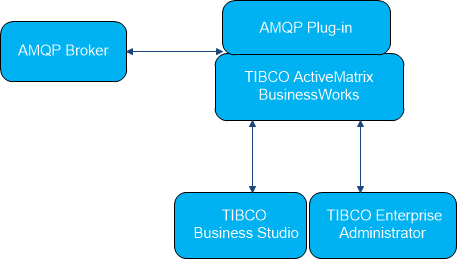

The following figure describes the relationship among an AMQP broker, TIBCO ActiveMatrix BusinessWorks™ Plug-in for AMQP, and TIBCO ActiveMatrix BusinessWorks™.
The following list describes each item and the relationship between them in the previous figure.
- The AMQP broker is a server. You can use ActiveMatrix BusinessWorks™ Plug-in for AMQP to communicate with the AMQP broker.
- ActiveMatrix BusinessWorks Plug-in for AMQP plugs into ActiveMatrix BusinessWorks™ and is connected to an AMQP broker.
- ActiveMatrix BusinessWorks is an easy-to-use integration product suite for enterprise applications.
- TIBCO Business Studio™ consists of a graphical user interface (GUI) used by ActiveMatrix BusinessWorks with the plug-ins to design business processes, and the process engine used to execute those processes.
- TIBCO® Enterprise Administrator provides a centralized administrative interface to manage and monitor the plug-in applications deployed in an enterprise.
