Installing Plug-ins by using BusinessWorks Plug-ins Manager

You can install the plug-in by using BusinessWorks Plug-ins Manager.

Prerequisites

To install plug-ins using the plug-ins manager, you must have version 6.7.0 or later of TIBCO ActiveMatrix BusinessWorks.

Start TIBCO Business Studio for BusinessWorks.

Platform	Step
Microsoft Windows	Click Start > All Programs > TIBCO > `TIBCO_HOME` > TIBCO Business Studio `<version>` > Studio for Designers
Linux or macOS	Run the TIBCO Business Studio for BusinessWorks executable file located at `TIBCO_HOME`/studio/`<version>`/eclipse.

Open the TIBCO BusinessWorks Plug-ins Manager in one of the following ways:
- From the menu bar, select Help > BusinessWorks Plug-ins Manager.

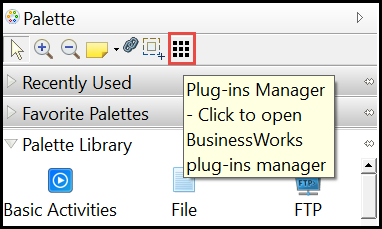

- When a process is open, in the Palette section (right pane), click the Plug-ins Manager icon
The TIBCO BusinessWorks Plug-ins Manager dialog box opens, listing all available plug-ins.
In the TIBCO BusinessWorks Plug-ins Manager dialog box, select one or more plug-ins that you want to install, and then click Install.
The list of plug-ins is displayed based on your selection of options on the Options tab.
In the Install wizard, perform the following steps:
1. On the Install page, confirm that the required plug-ins are selected for installation and click Next.
2. On the Install Details page, review the plug-in details and click Next.
3. To continue, accept the terms of agreement and click Finish.

Restart TIBCO Business Studio for BusinessWorks to verify the installed plug-ins.
