Working with the IterateResultSet Project

The IterateResultSet project contains a process that shows how to use ActiveMatrix BusinessWorks™ Plug-in for ActiveSpaces to handle the output of a batch operation.

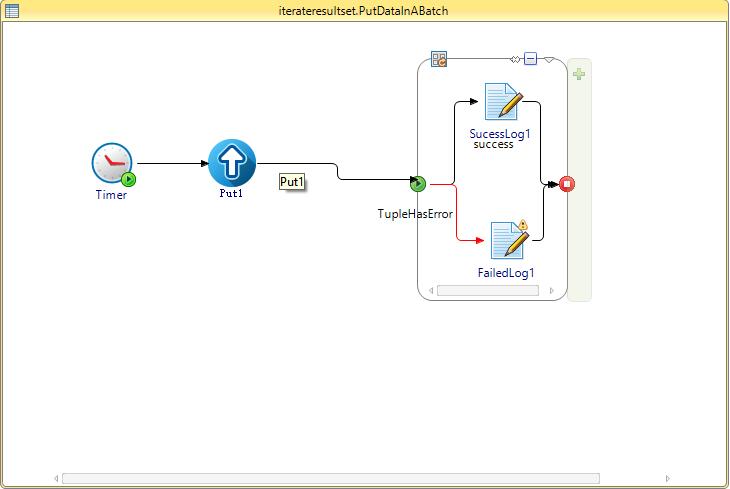

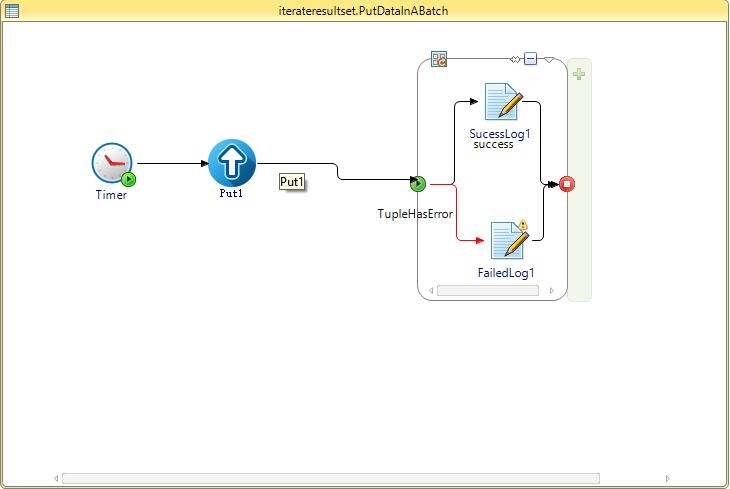

The process is designed with the following activities:

The following table describes the activities in this process:

Activity Description
Start Starts the process.
Put Stores a batch of rows into the table.
  • If an error occurs during the Put operation, the group iterates over every result parameter in the Output tab of the Put activity.
  • If no errors occur during the Put operation, the PutAgain operation is performed.
SuccessLog Writes a message to the SucessTuple.txt file when the value of the HasError parameter in the Output tab of the Put activity is false.

The SucessTuple.txt file is located in the TIBCO_HOME/bw/palettes/activespaces/version_number/samples/IterateResultSet/output directory.

FailedLog Writes a message to the FailedTuple.txt file when the value of the HasError parameter in the Output tab of the Put activity is true.

The FailedTuple.txt file is located in the TIBCO_HOME/bw/palettes/activespaces/version_number/samples/IterateResultSet/output directory.
