Configuring a Process

After a project is created, you can see an empty process created automatically. You must configure the process by adding activities, conditions, and services to the empty process to complete a task.

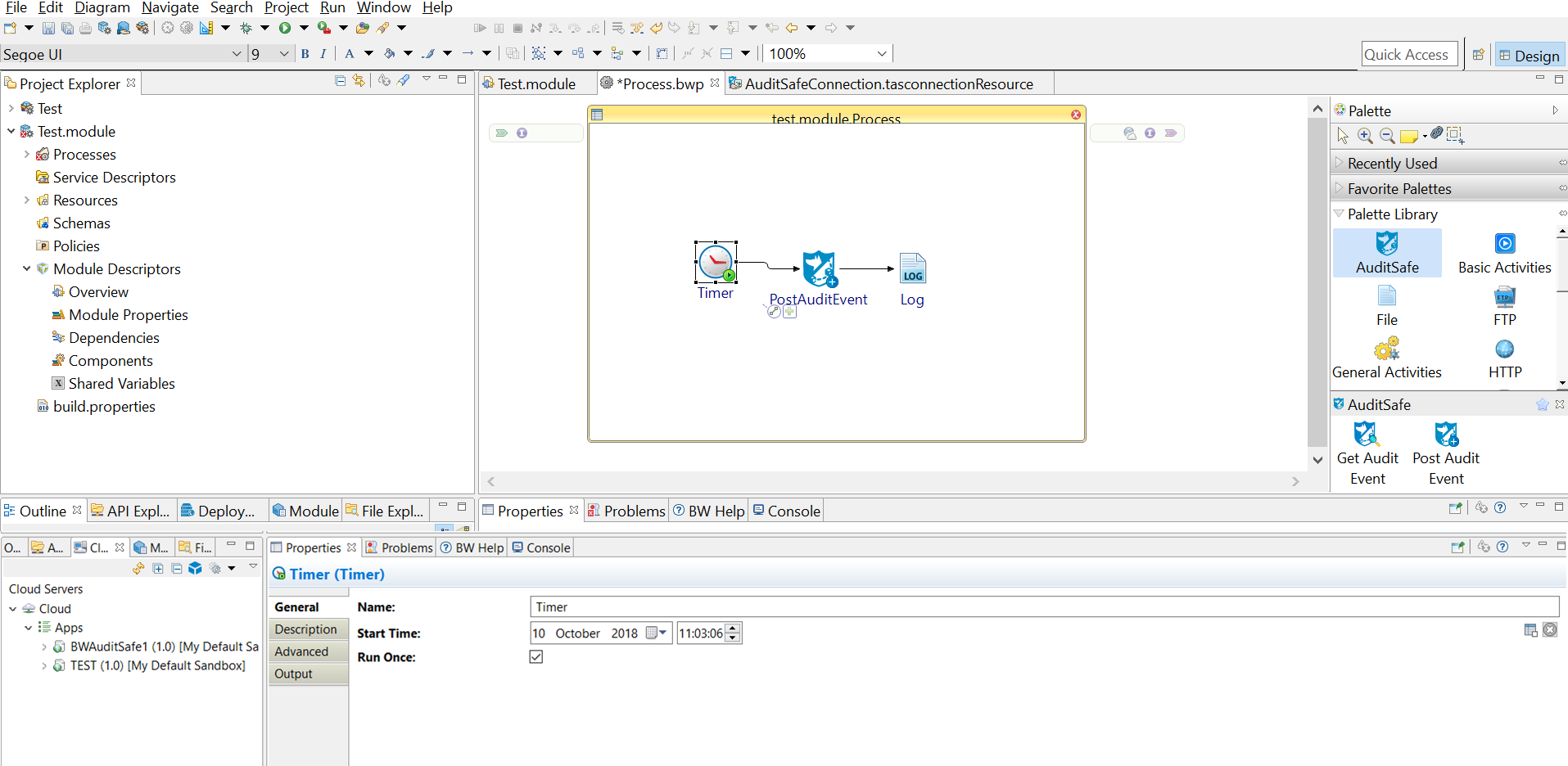

1. Select an activity from the Palette view and drop it in the Process editor. For example, select and drop the Timer activity and Log activity from the General Activities palette and the Post Audit Event activity from the AuditSafe palette.
2. Click the link icon to create links between the activities and configure the condition types.
3. Configure the added activities. For more information, see TIBCO AuditSafe Palette.
   Note: TIBCO AuditSafe shared resource is required when configuring the activities. For more details on how to create the TIBCO AuditSafe shared resource connection, see Creating a TIBCO AuditSafe Shared Resource Connection.
4. To save the configured project, click File > Save.
