Configuring a Process

A newly created project contains an empty process. Configure the process by adding activities, conditions, and services to complete a task.

Prerequisites

  1. Ensure that an empty process is created when creating a project. See Creating a Project for details.
  2. Ensure that you have established an BigQuery connection. See Creating the BigQuery Connection Resource for details.

Procedure

  1. In the Project Explorer view, click the created project and open the empty process from the Processes folder.

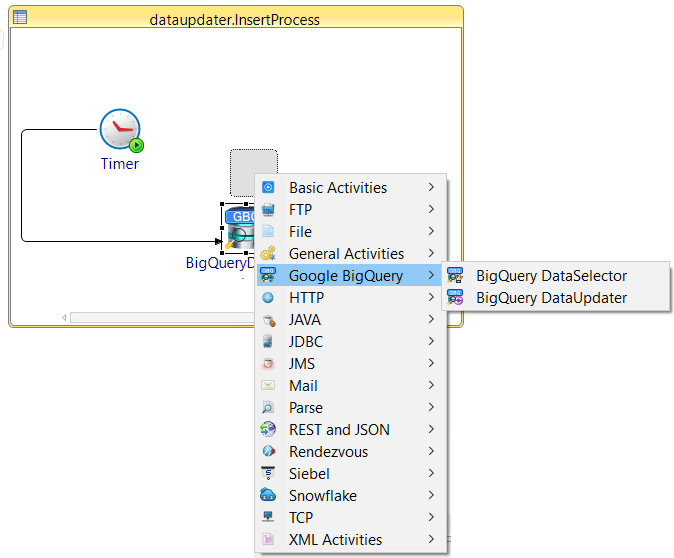

  2. Select an activity from the Palette view and drag it to the Process editor. For example, select and drop the Timer activity from the General Activities palette.
  3. Click LINK_Activity and drag to create the new activity. In this manner, create links between the activities and configure the condition types.
    Note: You must add a starter activity before adding a Google BigQuery activity.
  4. Configure the Google BigQuery activity added fromGoogle BigQuery Palette.
    Note: A BigQuery Connection shared resource is required when configuring the activities. For details on creating the BigQuery Connection shared resource, see Creating the BigQuery Connection Resource.
  5. Save the project.
