Schemas

The type of service and the associated entities to generate XSD schema are defined on the Schemas page.

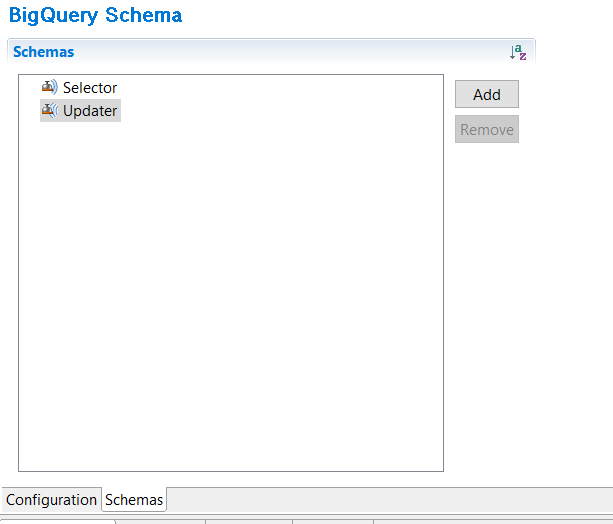

The Schemas section on the left lists the schema type. You can add or remove schemas. You can add the following schema types:
  • Selector
  • Updater
When a new Selector or Updater schema is added, a corresponding section is displayed on the right and consists of different tabs corresponding to the activity. The following sections describe the fields on these tabs for each activity:
  • Selector Schema
  • Updater Schema

Selector Schema

Updater Schema

The descriptions of the fields in the above tabs is as follows:

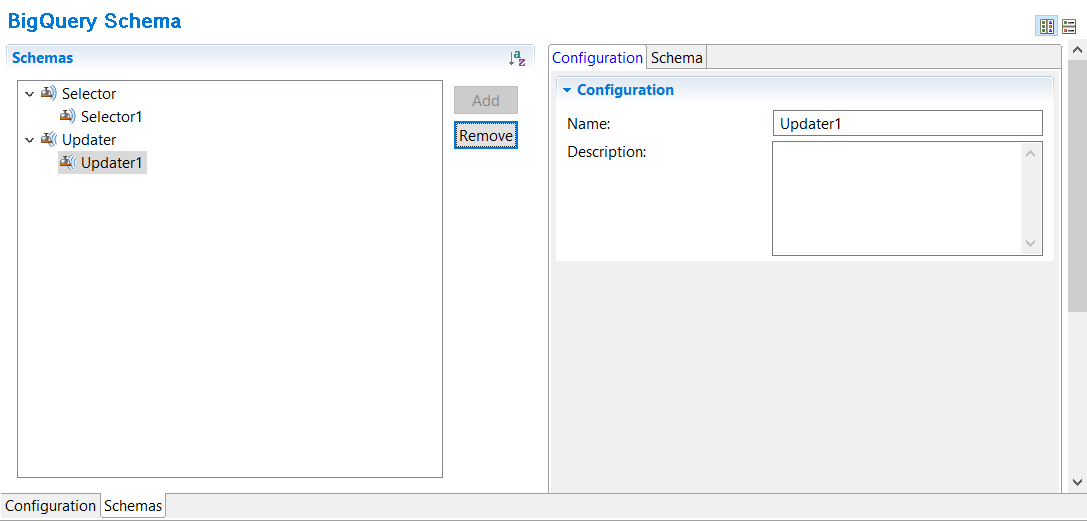

Shared Resource > Schemas Page > Configuration Fields
Field Module Poperty? Description
Name No You can update the schema name. For more information, see Entity Naming Conventions.
Description No A short description for the schema
Shared Resource > Schemas Page > Schema Fields

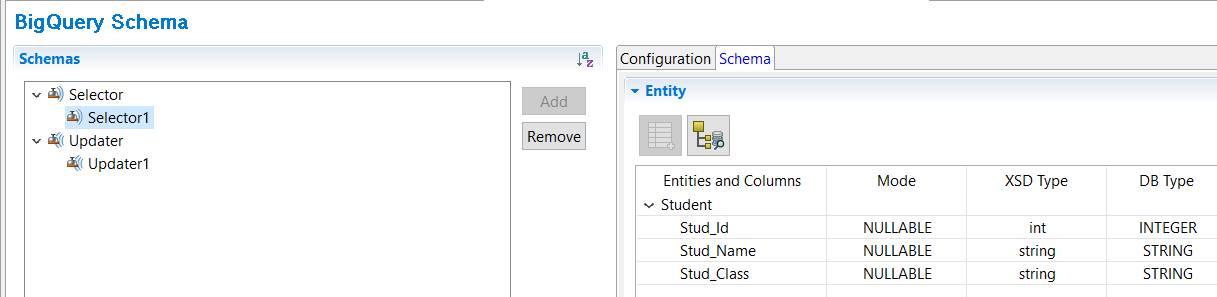

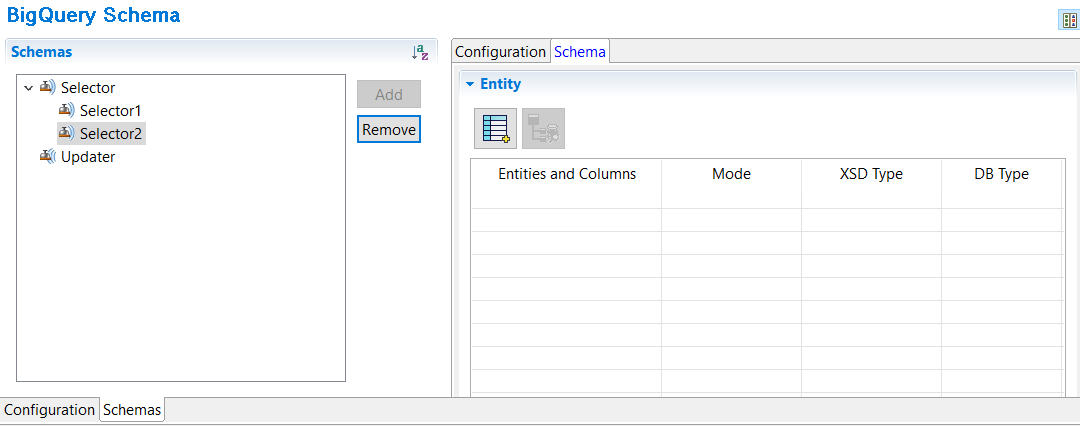

Fields for Selector Activity
Field Module Poperty? Description
Entities and Columns No Displays the selected entity and its columns.
Mode No Displays the mode of the columns of the entity. This is a read-only column. If the Mode field is populated as Required, the activity input for that column is mandatory.
XSD Type No Displays the XSD type of the column. This is a read-only column.
DB Type No Displays the data type of the database column. This is a read-only column.
You can add new entity by clicking on this icon.
You can refresh the schema by clicking this icon.

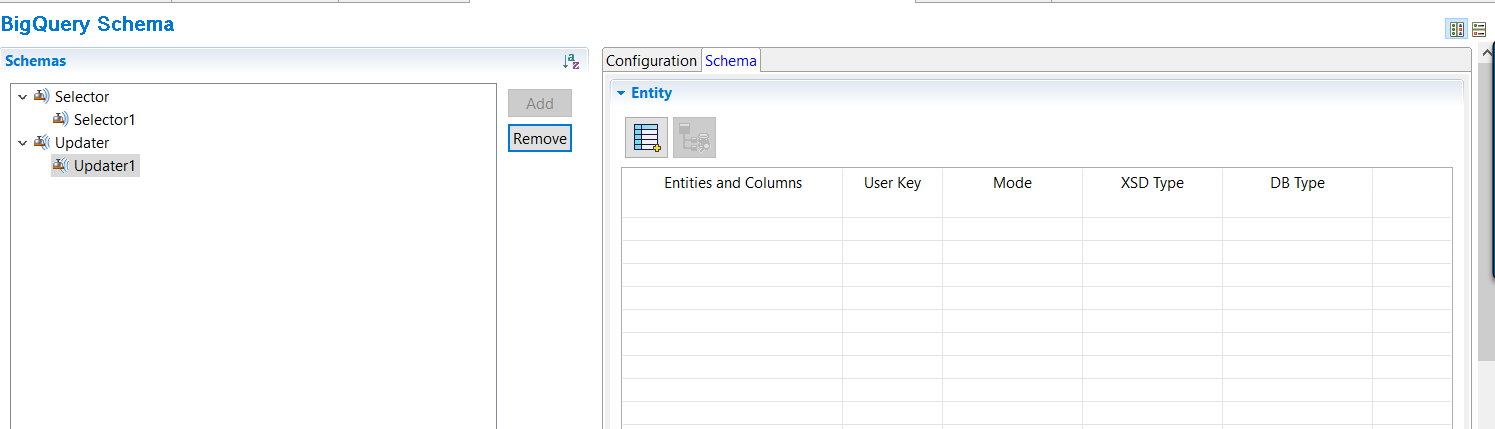

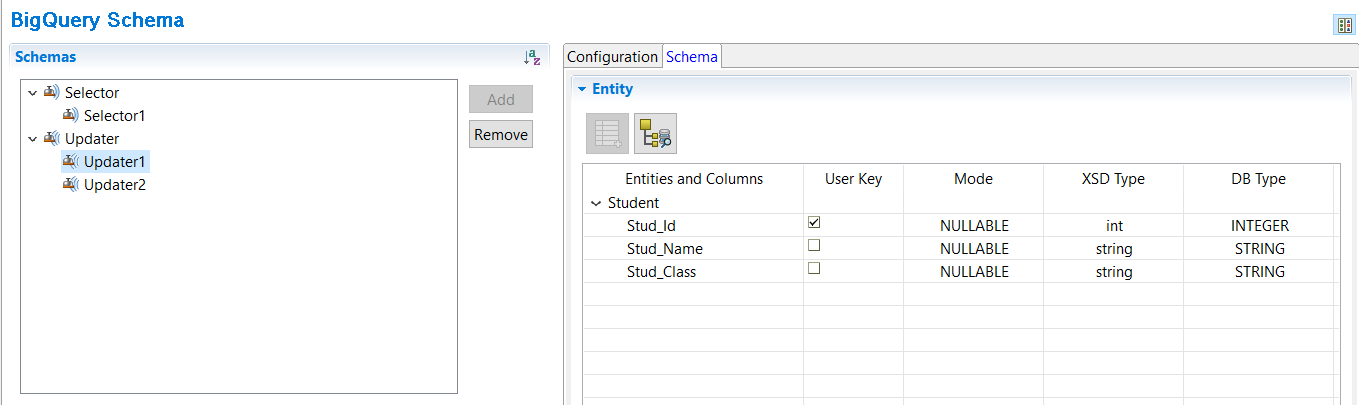

Fields for Updater Activity
Field Module Poperty? Description
Entities and Columns No Displays the selected entity and its columns.
User Key No This property is mandatory for Update operation and optional for Insert operation.
Mode No Displays the mode of the columns of the entity. This is a read-only column. If the Mode field is populated as Required, the activity input for that column is mandatory.
XSD Type No Displays the XSD type of the column. This is a read-only column.
DB Type No Displays the data type of the database column. This is a read-only column.
You can add new entity by clicking on this icon.
You can refresh the schema by clicking this icon.

User Key
