Testing a Process

After configuring a process, you can test the process to check if the process completes your task. Debug the application you have configured to ensure that the application configuration is correct.

Before you begin

Ensure that you have configured a process, as described in Configuring a Process.

    Procedure
  1. In TIBCO Business Studio for BusinessWorks, open the process you have configured.
  2. On the toolbar, click Run > Debug Configurations.
  3. In the left panel, click BusinessWorks Application > BWApplication.
    By default, all the applications in the current workspace are selected on the Applications tab. Ensure that only the application you want to debug is selected on the Applications tab in the right panel.
  4. Click Debug to test the process in the selected application.

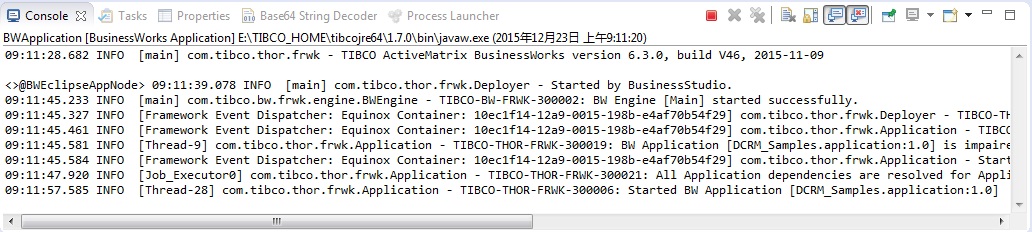

    TIBCO Business Studio for BusinessWorks changes to the Debug perspective. Logs are displayed in the Console view.

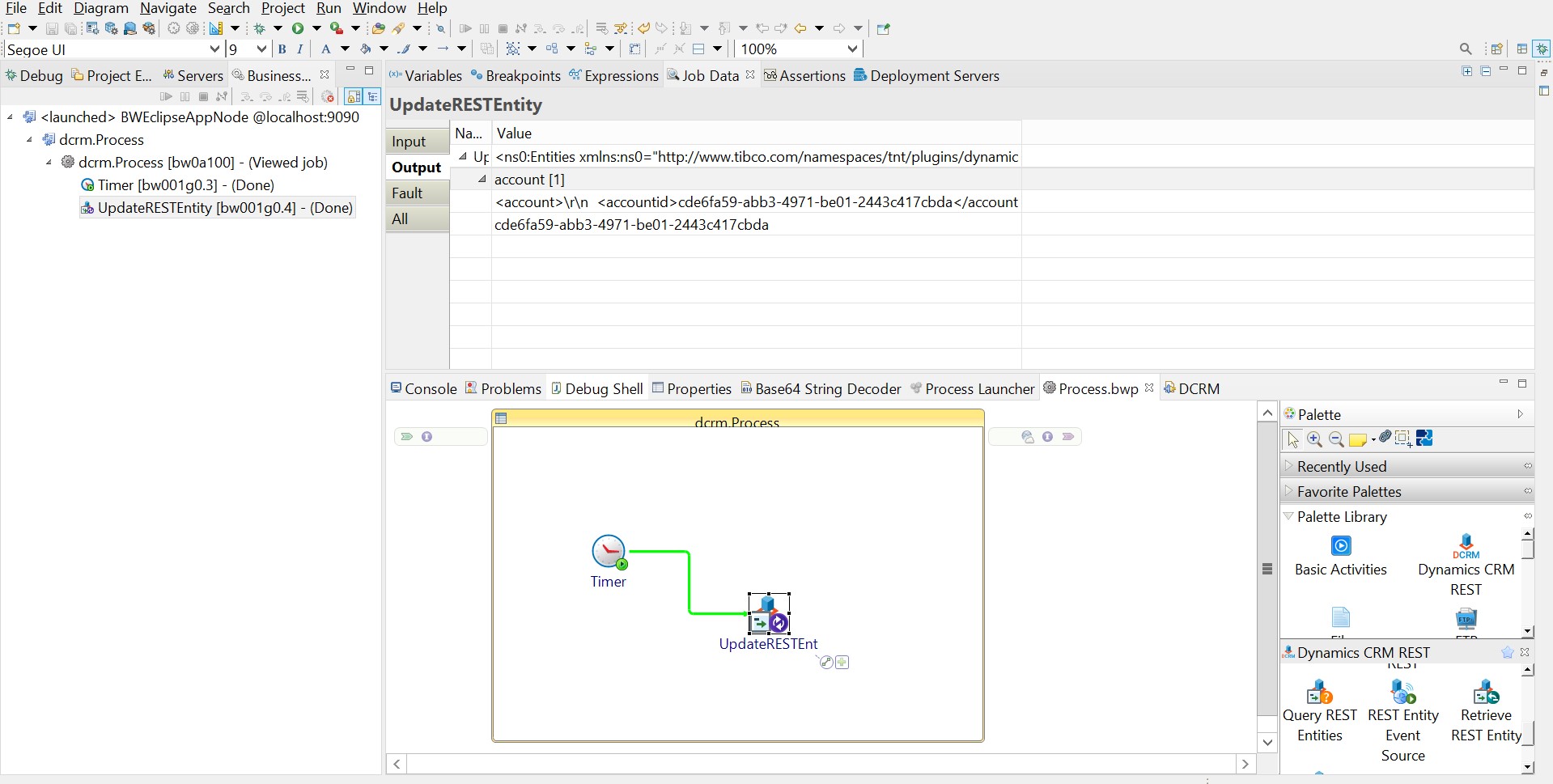

  5. On the Debug tab, expand the running process and click an activity.
  6. In the upper-right corner, click the Job Data tab, and then click the Output tab to check the activity output.
