Configurations for remote_object_release

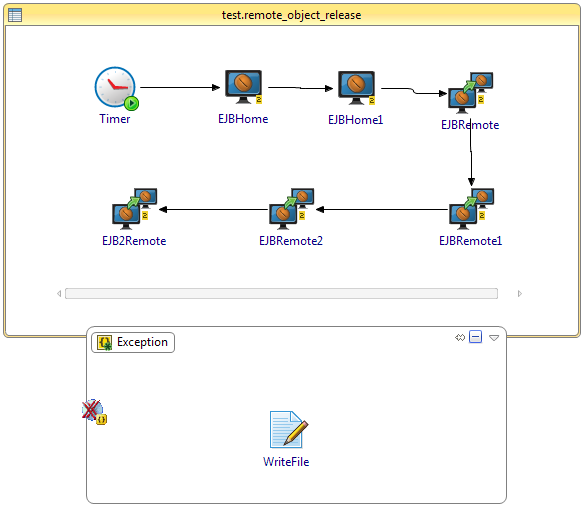

The remote_object_release process shows how to release EJB 2.x remote objects in one process instance.

Activity	Description
Timer	This activity starts the process at a specific time.
EJBHome	This activity performs a JNDI lookup in the test.NewEJBResource EJB Configuration shared resource and create an EJB 2.x remote object.
EJBHome1	This activity performs a JNDI lookup in the test.NewEJBResource EJB Configuration shared resource and create another EJB 2.x remote object.
EJBRemote	This activity invokes a remote method on the remote object which is created by the EJBHome activity. The Release Remote Object check box is selected in Advance tab of this activity.
EJBRemote1	is activity invokes a remote method on the remote object which is created by the EJBHome1 activity. The Release Remote Object check box is clear in Advance tab of this activity.
EJBRemote2	This activity invokes a remote method on the remote object which is created by the EJBHome activity. As the EJB 2.x object was already released after the EJBRemote activity is completed, a null pointer exception occurs.
EJB2Remote	This activity invokes a remote method on the remote object which is created by the EJBHome1 activity.
Write File	This activity writes the exception details to the specified file.
