Configurations for ejb_with_java_invoke

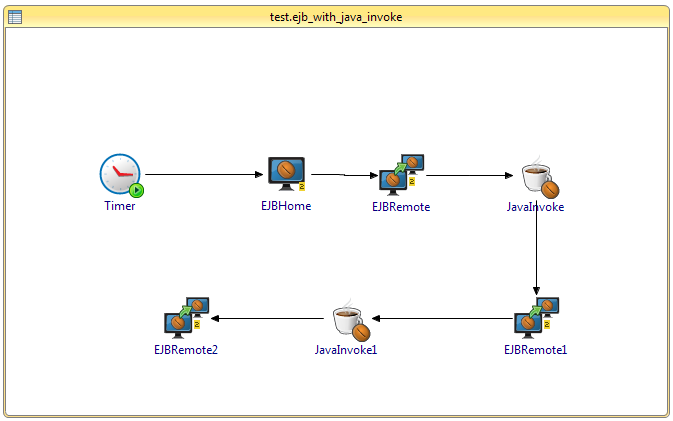

The ejb_with_java_invoke process shows how to use the EJB activities with the Java Invoke activities, to add, update and delete data in a catalogue.
| Activity | Description |
|---|---|
| Timer | This activity starts the process at a specific time. |
| EJBHome | This activity performs a JNDI lookup in the test.NewEJBResource EJB Configuration shared resource and create an EJB 2.x remote object. |
| EJBRemote | This activity invokes the addCatalogue() method on the remote object which is created by the EJBHome activity. As a result, a record is added in the catalogue. |
| JavaInvoke | This activity invokes a Java class method to check if the catalogue record is added after the EJBRemote activity. |
| EJBRemote1 | This activity invokes the updateCataloguePrice() method on the remote object that is created by the EJBHome activity. As a result, a record is updated in the catalogue. |
| JavaInvoke1 | This activity invokes a Java class method to check if the catalogue record is updated after the EJBRemote1 activity. |
| EJBRemote2 | This activity invokes the deleteCataloguePrice() method on the remote object that is created by the EJBHome activity. As a result, a record is deleted in the catalogue. |
