Configurations for remote_object_release

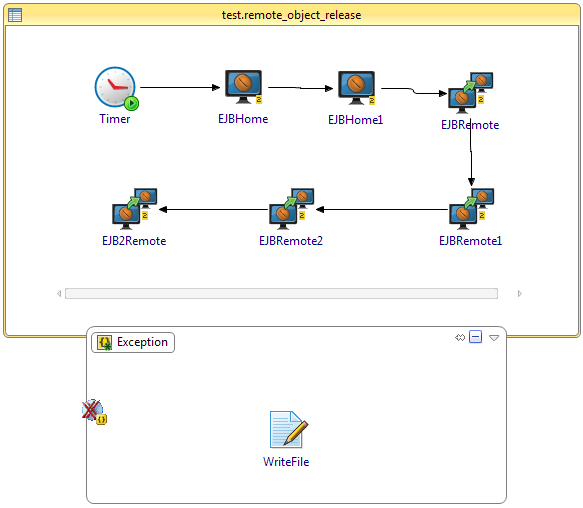

The remote_object_release process shows how to release EJB 2.x remote objects in one process instance.
| Activity | Description |
|---|---|
| Timer | This activity starts the process at a specific time. |
| EJBHome | This activity performs a JNDI lookup in the NewEJBResource.ejbResource EJB Configuration shared resource and creates an EJB 2.x remote object. |
| EJBHome1 | This activity performs a JNDI lookup in the NewEJBResource.ejbResource EJB Configuration shared resource and creates another EJB 2.x remote object. |
| EJBRemote | This activity invokes a remote method on the remote object that is created by the EJBHome activity. The Release Remote Object check box is selected in the Advance tab of this activity. |
| EJBRemote1 | This activity invokes a remote method on the remote object that is created by the EJBHome1 activity. The Release Remote Object check box is cleared in the Advance tab of this activity. |
| EJBRemote2 | This activity invokes a remote method on the remote object that is created by the EJBHome activity.
After the EJBRemote activity is completed and then the EJB 2.x object is released, a null pointer exception occurs. |
| EJB2Remote | This activity invokes a remote method on the remote object that is created by the EJBHome1 activity. |
| Write File | This activity writes the exception details to the specified file. |
