Importing the Sample Project

Before running the project, you must import the sample project to TIBCO Business Studio.

Prerequisites

  • Ensure that you have started JBoss Application Server version 7.1.x.
  • Ensure that the .jar files, ejb3server.jar and jboss7stateless.jar, in the TIBCO_HOME/bw/palettes/ejb/version_number/Samples/Examples/Examples/lib directory, are deployed to your JBoss Application Server.

Procedure

  1. Start TIBCO Business Studio using one of the following ways:
    • Microsoft Windows: click Start > All Programs > TIBCO > TIBCO_HOME > TIBCO Business Studio version_number > Studio for Designers.
    • Mac OS and Linux: run the TIBCO Business Studio executable file located in the TIBCO_HOME/studio/version_number/eclipse directory.
  2. From the menu, click File > Import.
  3. In the Import dialog, expand the General folder and select the Existing Studio Projects into Workspace item. Click Next.
  4. Click Browse next to the Select root directory field to locate the sample. Click Finish.
    The sample project is located in the TIBCO_HOME/bw/palettes/ejb/version_number/Samples directory.

Result

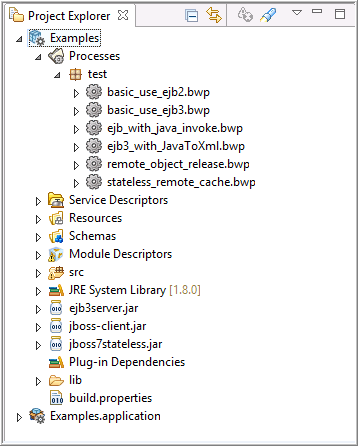

The sample project is imported to TIBCO Business Studio.
