Configuring Outbound Proxy Settings

You can set an outbound proxy for all the activities.

Procedure
1. Open the process for which you want to start the outbound proxy.

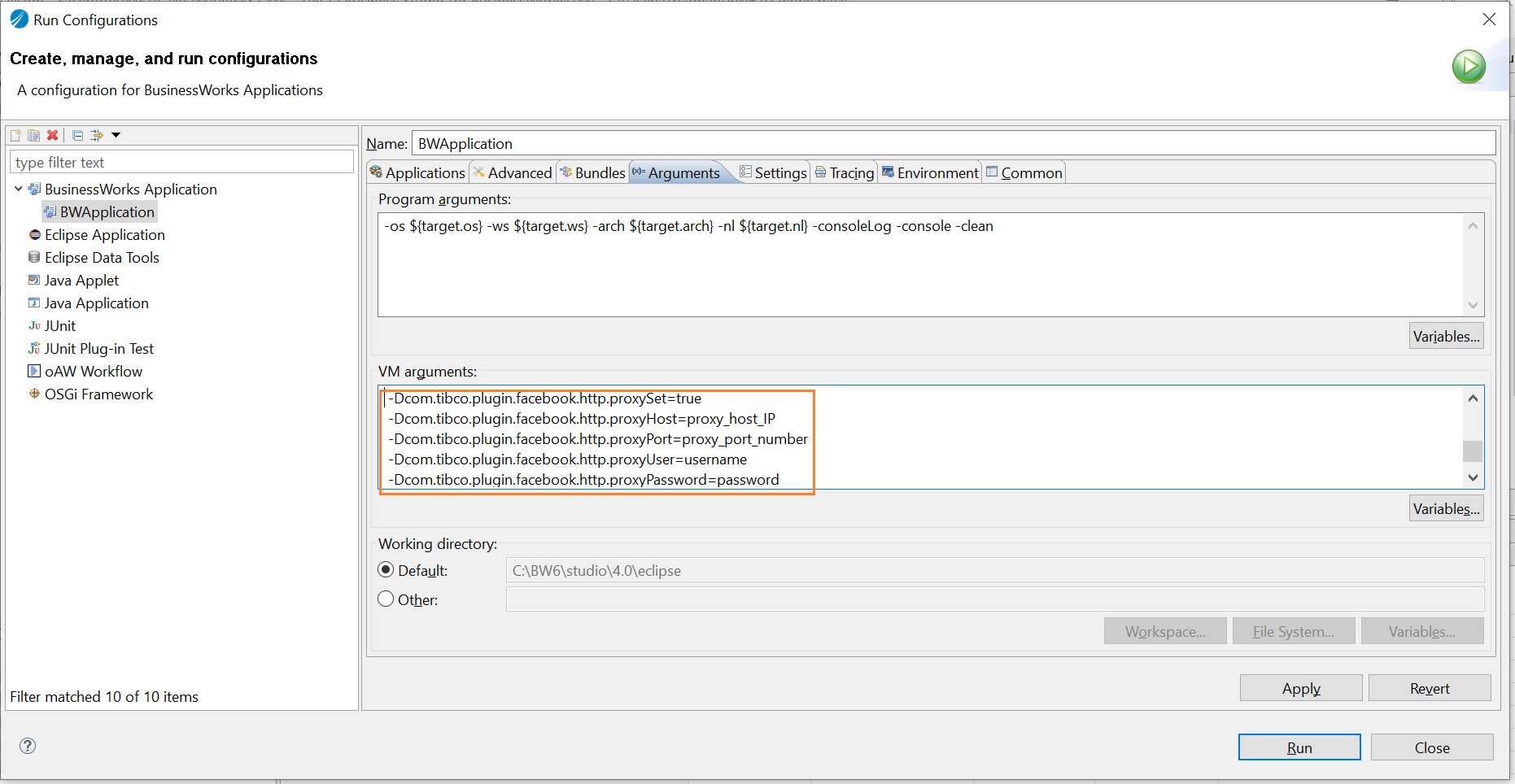

2. From the menu, click Run > Run Configurations.
3. Click BusinessWorks Application > BWApplication in the left panel.
4. Click the Arguments tab in the right panel.
5. In the VM arguments field, add the following parameters:
   • -Dcom.tibco.plugin.facebook.http.proxySet=true
   • -Dcom.tibco.plugin.facebook.http.proxyHost=proxy_host_IP
   • -Dcom.tibco.plugin.facebook.http.proxyPort=proxy_port_number
   • -Dcom.tibco.plugin.facebook.http.proxyUser=username
   • -Dcom.tibco.plugin.facebook.http.proxyPassword=password



   Note:

   • If you want to close the outbound proxy, delete all the previous parameters, or set the -Dcom.tibco.plugin.facebook.http.proxySet parameter to false.
   • The username and password parameters are optional when the connection is anonymous.
   • If the password is encrypted, see Using Encrypted Password.
6. Click Apply.



   Note: If you want to deploy the process, you have to add the following parameters to the bwcommon.tra file, which is located in the TIBCO_HOME\bw\version\bin directory:

   java.extended.properties=-Dcom.tibco.plugin.facebook.http.proxySet=true
   -Dcom.tibco.plugin.facebook.http.proxyHost=proxy_host_IP
   -Dcom.tibco.plugin.facebook.http.proxyPort=proxy_port_number
   -Dcom.tibco.plugin.facebook.http.proxyUser=username
   -Dcom.tibco.plugin.facebook.http.proxyPassword="password"

   See TIBCO ActiveMatrix BusinessWorks™ Administration for more details.
