Creating a Project

The first task of using the plug-in is creating a project. After creating a project, you can add resources and processes.

An Eclipse project is an application module configured for ActiveMatrix BusinessWorks. An application module is a resource unit that is named, versioned, and packaged as part of an application.

Procedure

  1. Start TIBCO Business Studio by using one of the following ways:
    • Microsoft Windows: click Start > All Programs > TIBCO > TIBCO_HOME > TIBCO Business Studio version number > Studio for Designers.
    • Linux: run the TIBCO Business Studio executable file located in the TIBCO_HOME/studio/version_number/eclipse directory.
  2. From the menu, click File > New > BusinessWorks Resources to open the BusinessWorks Resource wizard.
  3. In the Select a wizard dialog box, click BusinessWorks Application Module and click Next to open the New BusinessWorks Application Module wizard.
  4. In the Project dialog box, configure the project you want to create:
    1. In the Project name field, enter a project name.
    2. By default, the created project is located in the workspace currently in use. If you do not want to use the default location for the project, clear the Use default location check box and click Browse to select a new location.
    3. Use the default version of the application module, or enter a new version in the Version field.
    4. Keep the Create empty process and Create Application check boxes selected to automatically create an empty process and an application when creating a project.
    5. Select the Use Java configuration check box if you want to create a Java module.
      A Java module provides the Java tooling capabilities.
    6. Click Finish to create the project.

Result

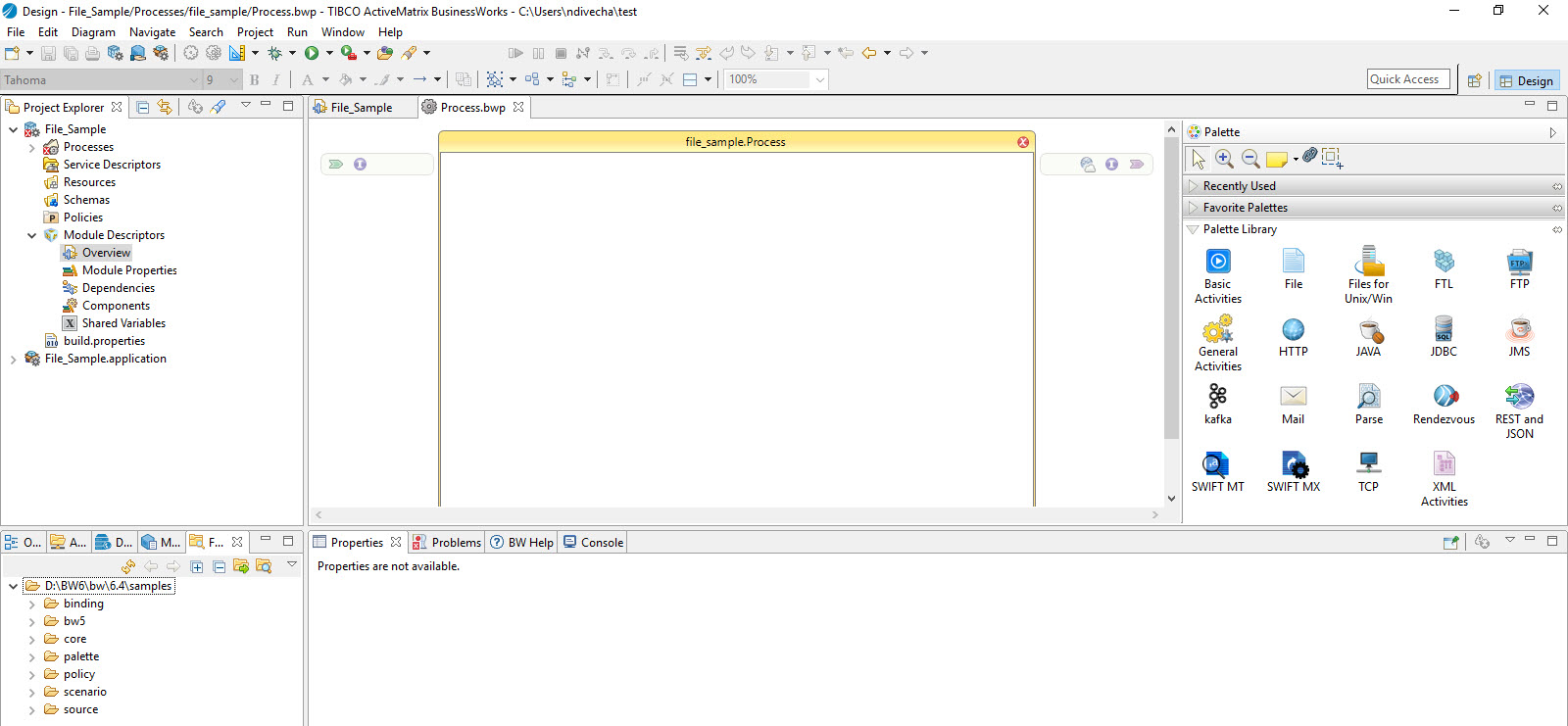

The project with the specified settings is displayed in the Project Explorer view.
