Setting Up and Running the Examples
Use the following information to set up and run TIBCO ActiveMatrix™ BusinessWorks Plug-in for HL7 examples.
Copy Guidelines and Maps
The HL7 Plug-in examples make use of guidelines and maps. Before using any of the examples, you must copy the associated files to the appropriate directory.
For each example, guidelines and map files are found in the example's \Guidelines directory. For example: \bw\palettes\hl7\x.x\samples\ParserAndRenderer\DataAndGuidelines\Guidelines.
Copy the guideline and map files as follows:
- Copy the .std, .xsd, and .map files to Translator's \database directory.
- Copy the .std files to Instream's \database directory.
(Note that the .std files are copied to the \database directory for BOTH TIBCO Foresight® Instream® and TIBCO Foresight® Translator® .)
Optional: Set Environment Variables for the Process
TIBCO Foresight® Instream® and TIBCO Foresight® Translator® environment variables should have been set as part of the Plug-in for HL7 Postinstallation tasks (refer to TIBCO ActiveMatrix BusinessWorks™ Plug-in for HL7 Installation). Doing so tells Activematrix BusinessWorks where to access the TIBCO Foresight® Instream® and TIBCO Foresight® Translator® executables when the products are used in a TIBCO ActiveMatrix™ BusinessWorks HL7 Plug-in process.
- Open the desired process and click within the process.
- Select
Run > Run Configurations....
The Run Configuration screen appears.
- Select the environment tab and double click on PATH.
The Edit Environment Variable screen appears.
- Add the path to the desired location of the Instream\bin and/or Translator\bin directories at the beginning of the string, before the first $ character, and with a
; (Windows platforms) or
: (Unix platforms) at the end of each segment of added text.
Example: C:\tibco64\instream\8.4\bin;C:\tibco64\translator\3.4\bin;${env_var:FTL_HOME}...........
For example:
${env_var:FTL_HOME}/bin${system_property:path.separator}${env_var:RV_HOME}/bin${system_property:path.separator}${env_var:PATH}
becomes
C:\tibco64\instream\8.4\bin;C:\tibco64\translator\3.4\bin;${env_var:FTL_HOME}/bin${system_property:path.separator}${env_var:RV_HOME}/bin${system_property:path.separator}${env_var:PATH}
- Select the Apply button.
- Select the Close button.
Verify File Paths in the Examples
Before running an example, verify the file path used in the example is correct for your environment.
- Open the desired example.

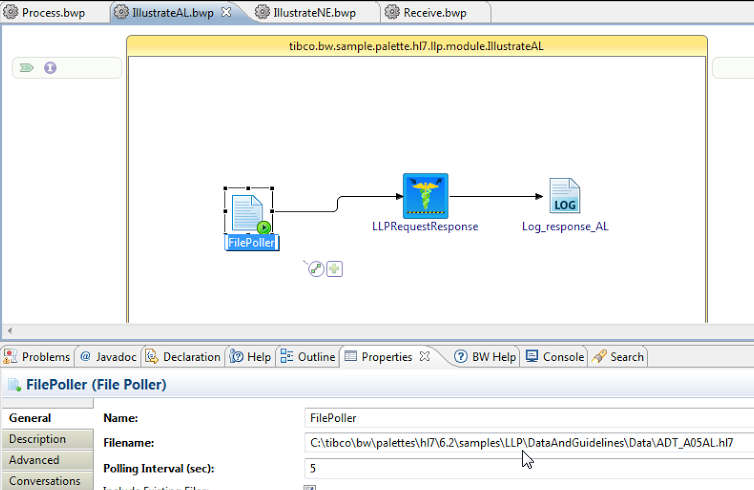

In this image, the IllustrateAL.bwp process is opened.
- Check the file path. In this example the FilePoller activity is set to pick up the input file at the following path <BW_HOME>\samples\palette\hl7\x.x\samples\LLP\DataAndGuidelines\Data\ADT_A05AL.hl7. You may need to alter the file path if you have saved the samples to a different location.
