HL7 Custom Functions

An important part of any HL7 integration project is the data mapping from one message format to another. TIBCO ActiveMatrix BusinessWorks™ offers advanced functionality in data mapping, including drag-and-drop and a comprehensive suite of built-in functions.

However, no matter how complete the built-in functions are, there is always a need to customize, especially in the healthcare industry. TIBCO ActiveMatrix BusinessWorks™ Plug-in for HL7 includes a useful set of custom functions.

See the TIBCO ActiveMatrix BusinessWorks™ documentation for detailed information on how to write, load, and use your own custom functions.

Using HL7 Custom Functions

TIBCO ActiveMatrix BusinessWorks™ Plug-in for HL7 includes a set of HL7-related custom functions, which are specified in the bwpluginhl7_HOME/resources/HL7CustomFunctions.class file.

To use these functions:

Create or open a project in TIBCO Business Studio™.
Load the pre-defined class file into the project using the Java Custom Function resource.

Custom Functions Usage

To see the HL7 specific custom functions:

Click on an Activity on the process editor.
In the properties pane, select the appropriate tab (usually the Input tab) and click the Functions tab in the XPath Formula Builder dialog.

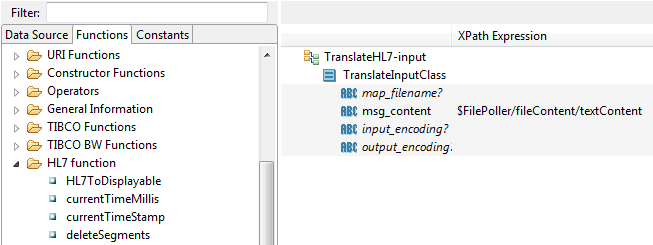

Expand the HL7 Functions folder. The custom HL7 functions appear.

Available HL7 Custom Functions

Function	Description and Sample Usage
HL7ToDisplayable	Replaces \r with system line separator. Sample usage: HL7ToDisplayable($hl7Msg)
currentTimeMillis	Returns current time in milliseconds.
currentTimeStamp	Returns current timestamp in HL7 format: yyyyMMddhhmmss.
deleteSegments	Returns HL7 message after the specified segments are removed. Sample usage: deleteSegment($hl7Msg, "ZSH:EVN") Sample output: Message will have EVN and ZSH segments removed
displayableToHL7	HL7 requires that all segments end with \r . This function converts DOS/UNIX format file into HL7 ER7 format. Sample usage: displayableToHL7($hl7MsgInDisplayFormat)
extractField	Extracts the indexed field from HL7 Message from the first segment with a given segment name. Sample usage: extractField($Hl7MsgString, $segmentName,$index )
generateNewGUID	Generates Unique ID.
separateMsgsFromBatch	Returns individual messages in the batch by removing FHS/BHS/BTS/FTS segments.
trimEmptyFields	Trims empty fields from an HL7 message.
