Illustrate AL Process

The Illustrate AL process sends the HL7 message string to the server and receives an acknowledgment message in response.

Example Process

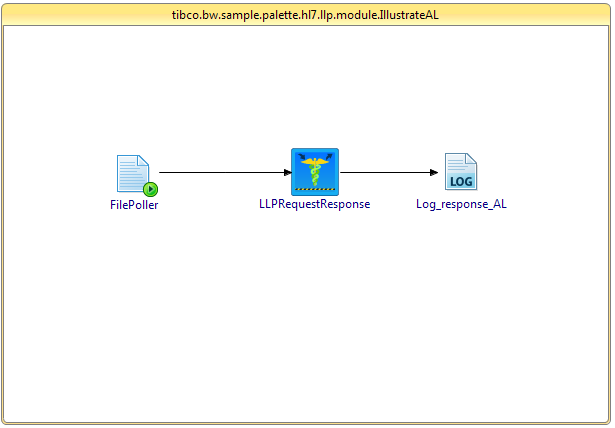

The Illustrate AL Process is illustrated here:

Process Definition

The process performs the following operations:
  1. The FilePoller activity polls the file named ADT_A05AL.hl7 in the directory specified in the File Name field of the Configuration tab. If the file exists then the process starts.
  2. The LLP Request Response activity sends the HL7 messages in the ADT_A05AL.hl7 file to the server, and then receives an acknowledgement message as response from the server.
  3. After the process executes successfully, a Success message is written to the Console. Select Window > Show Console in TIBCO Business Studio™ to view the log messages.
