Illustrate NE Example

The Illustrate NE process sends the HL7 message string to the server and expects no response.

Example Process

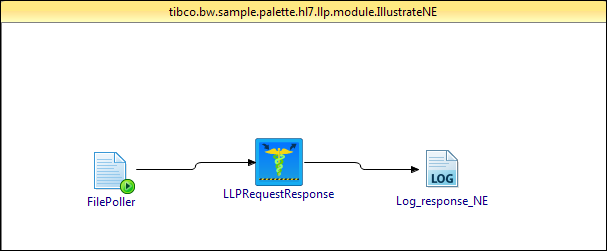

The Illustrate NE Process is illustrated here:

Process Definition

This process is similar to the Illustrate AL process with one exception: it expects no response. This option is configured through the General tab of the LLPRequestResponse activity by using the Is One Way check box, as shown here.

See Illustrate AL Process for more details on the Process Definition.
