SaveXMLtoMongoDB.bwp
This process demonstrates how to use the plug-in to save XML documents into MongoDB.

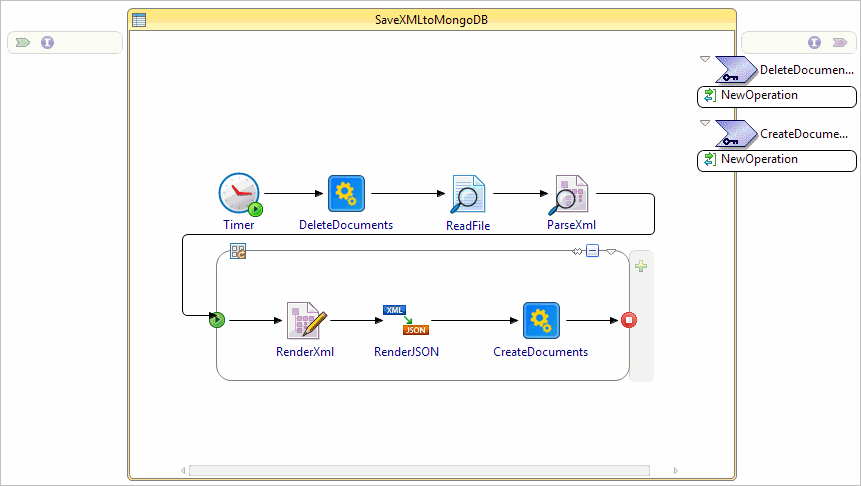

The process is designed with the following activities:
The following table describes the activities in the process.
| Activity | Description |
|---|---|
| Timer | Starts the process. |
| DeleteDocuments | Invokes the DeleteDocument subprocess to deletes documents from the specified collection. |
| ReadFile | Reads the specified XML file and converts it to a string. |
| ParseXml | Parses the string and converts it into an XML format file. |
| RenderXml | Generates a new XML file. |
| RenderJSON | Converts the newly generated XML file into a JSON file. |
| CreateDoucments | Invokes the CreateDocument subprocess to insert documents into the specified collection. |
