GridFSPhotoOperate.bwp
This process demonstrates how to use the plug-in to insert, query, or delete a file from a specified bucket.

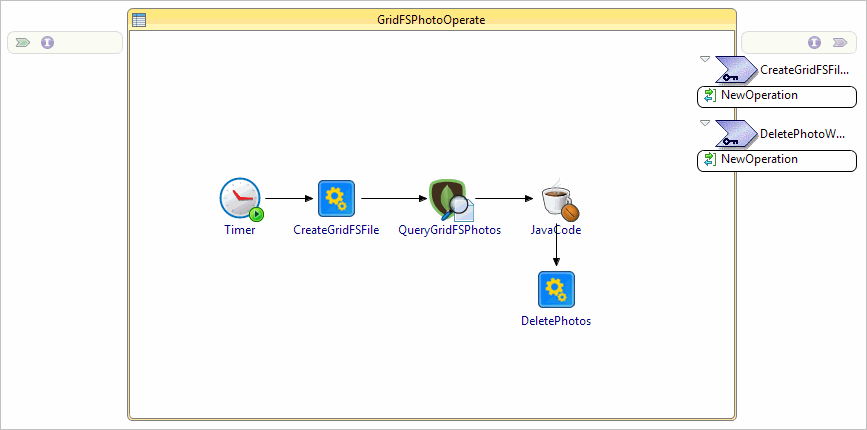

The process is designed with the following activities:
The following table describes the activities in the process:
| Activity | Description |
|---|---|
| Timer | Starts the process |
| CreateGridFSFile | Invokes the CreateGridFSFile subprocess to insert a file in the specified bucket and specify a new name for the inserted file |
| QueryGridFSPhotos | Queries the inserted file from the specified bucket |
| JavaCode | Obtains an instance of InputStream and writes the file stream to the inserted file |
| DeletePhotos | Invokes the DeletePhoto subprocess to delete the inserted file from the specified bucket |
