QueryJSONtoXML.bwp
This process demonstrates how to use the plug-in to parse JSON documents into XML documents.

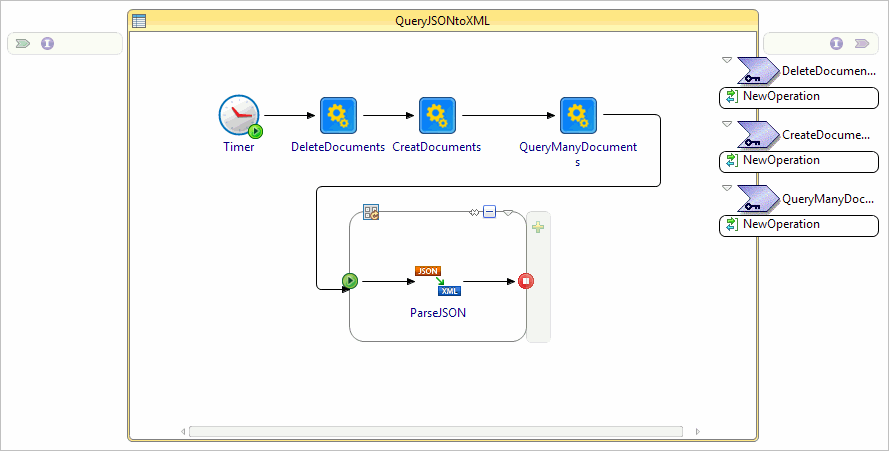

The process is designed with the following activities:
The following table describes the activities in the process:
| Activity | Description |
|---|---|
| Timer | Starts the process |
| DeleteDocuments | Invokes the DeleteDocument subprocess to delete documents from the specified collection |
| CreateDocuments | Invokes the CreateDocument subprocess to insert documents in the specified collection |
| QueryDocuments | Invokes the QueryDocument subprocess to query documents in the specified collection |
| ParseJSON | Parses the JSON documents into XML documents |
