Creating a Project

The first task to use the plug-in is to create a project.

An Eclipse project is an application module configured for TIBCO ActiveMatrix BusinessWorks. An application module is the smallest unit of resources that is named, versioned, and packaged as part of an application.

    Procedure
  1. Start TIBCO Business Studio™ using one of the following ways:
    Microsoft Windows: click Start > All Programs > TIBCO > TIBCO_HOME > TIBCO Business Studio version_number > Studio for Designers.
    Mac OS and Linux: Run the TIBCO Business Studio executable file in the TIBCO_HOME/studio/version_number/eclipse directory.
  2. From the menu, click File > New > BusinessWorks Resources to open the BusinessWorks Resource wizard.
  3. In the "Select a wizard" dialog, click BusinessWorks Application Module, and then click Next to open the New BusinessWorks Application Module wizard.
  4. In the Project dialog, configure the project that you want to create:
    1. In the Project name field, enter a project name.
    2. By default, the created project is placed in the workspace currently in use. If you do not want to use the default location for the project, clear the Use default location checkbox and click Browse to select a new location.
    3. Use the default version of the application module, or enter a new version in the Version field.
    4. Select the Create empty process and Create Application checkboxes to create an empty process and an application automatically while creating the project.
    5. Select the Use Java configuration checkbox if you want to create a Java module.
      A Java module provides Java tooling capabilities.
    6. Click Finish to create the project.

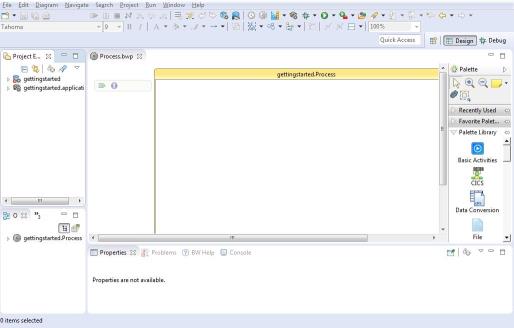

ResultThe project with the specified settings is displayed in the Project Explorer view.
