Oracle Fusion Cloud Apps Connection Shared Resource

To create an Oracle Fusion Cloud Apps Connection and invoke REST APIs available in any Oracle Cloud instances, fill in the details on the Configuration tab and the Schema tab.

Configuration

General
Property Module Property Description
Package No
Name No Displayed as the label for the shared resource in the process.
Description No Description for this shared resource
Tenant
Property Module Property Description
URL Yes

Mandatory

Enter the tenant URL in the following format:

https://<service_name>-<tenant_name>.<service_type>.<dcX>.ocs.oraclecloud.com
Version No

Mandatory

Enter the version for the Oracle Fusion Cloud Apps Connection.

You can get the version for the selected Oracle Fusion Cloud Apps Connection from the Oracle Help Center.

The Tenant version is used to download the swagger file.

Authentication
Property Module Property Description
Authentication Type No

Select the authentication type.

The Oracle Fusion Cloud Apps Connection supports Basic and OAuth 2.0 authentication.

By Default the Basic Authentication type is selected.
User Name Yes

Mandatory for Basic Authentication type.

The valid Username used to connect/log on to the tenant.
Password Yes

The valid password assigned to the username

Mandatory for Basic Authentication type.
OAuth 2.0

Note: To invoke the REST endpoints of Oracle Fusion Cloud Applications Suite and get the details required for OAuth 2.0 authentication, create a client application on Oracle Identity Cloud Service. For more information about creating an application, see Oracle Help Center.
Property Module Property Description
Identity Server URL Yes

Mandatory for OAuth 2.0 authentication type

Specify the Oracle Identity Cloud Service URL.
Client ID Yes

Mandatory for OAuth 2.0 authentication type

It is a credential equivalent to the user Id that your application uses to communicate with Oracle Identity Cloud Service.

The client ID appears in the Application Added dialog when you create a client application on Oracle Identity Cloud Service.
Secret ID Yes

Mandatory for OAuth 2.0 authentication type

It is a credential equivalent to the password that your application uses to communicate with Oracle Identity Cloud Service.

The Secret ID appears in the Application Added dialog when you create a client application.
Scope Yes

Mandatory for OAuth 2.0 authentication type

Application scope determines which of its resources are available to other applications.
Certificate Yes

Mandatory for OAuth 2.0 authentication type

An authorization certificate for the trusted partner.
Certificate Alias Yes

Mandatory for OAuth 2.0 authentication type

Alias given when importing the certificate.
Certificate password Yes

Mandatory for OAuth 2.0 authentication type

Certificate password for trusted partner.
Note: To use OAuth 2.0, a module property com.tibco.bw.palette.oerp.accessTokenInterval should be defined in minutes. The value should be the Access Token Expiration defined on the Oracle Identity Server. If the module property is not created by the user, the expiration time would be set to 60 minutes by default.
Advanced
Property Module Property Description
No. of Threads Yes

Select the number of threads in the thread pool provided by the Oracle Fusion Cloud Apps Connection Resource.

The number of threads should be between 1 to 99. The default value is 8.

Schema

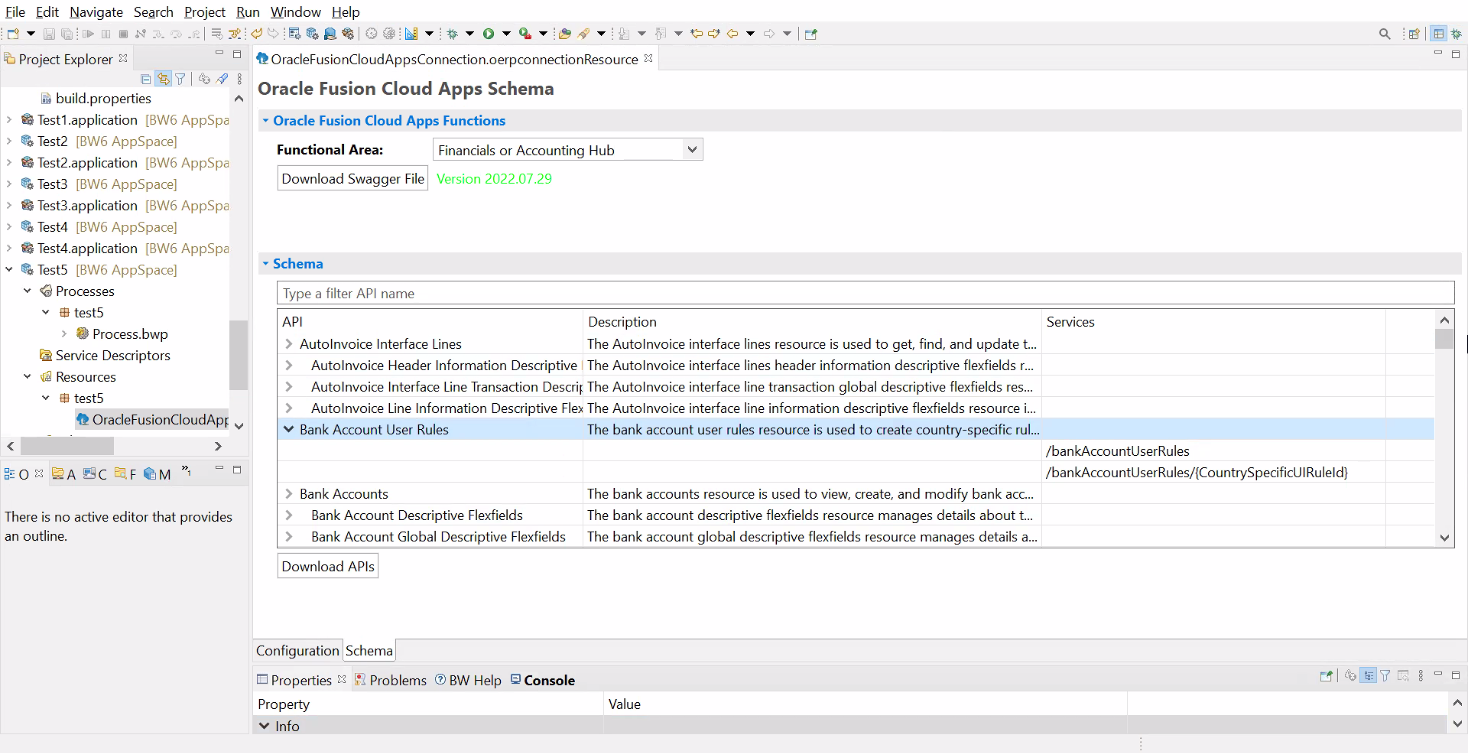

On the Schema tab, select Functional Area from Oracle Fusion Cloud Apps functions and click the Download Swagger File button.
All the available APIs provided by Oracle Server are then rendered under the schema section with their hierarchies and services. You can expand and view services endpoints for any specific API.

To download a specific API, perform the following steps:

1. Select the Functional Area.

2. Select the API from the Schema panel.

3. Click the Download APIs button.
