Configuring a Process

After creating a project, an empty process is created by default. Processes capture and manage the flow of business information in an enterprise between different data sources and destinations. You can configure a process by adding activities.

Prerequisites

Ensure that you have created an empty process when creating a project. See Creating a Project for more details.

Procedure

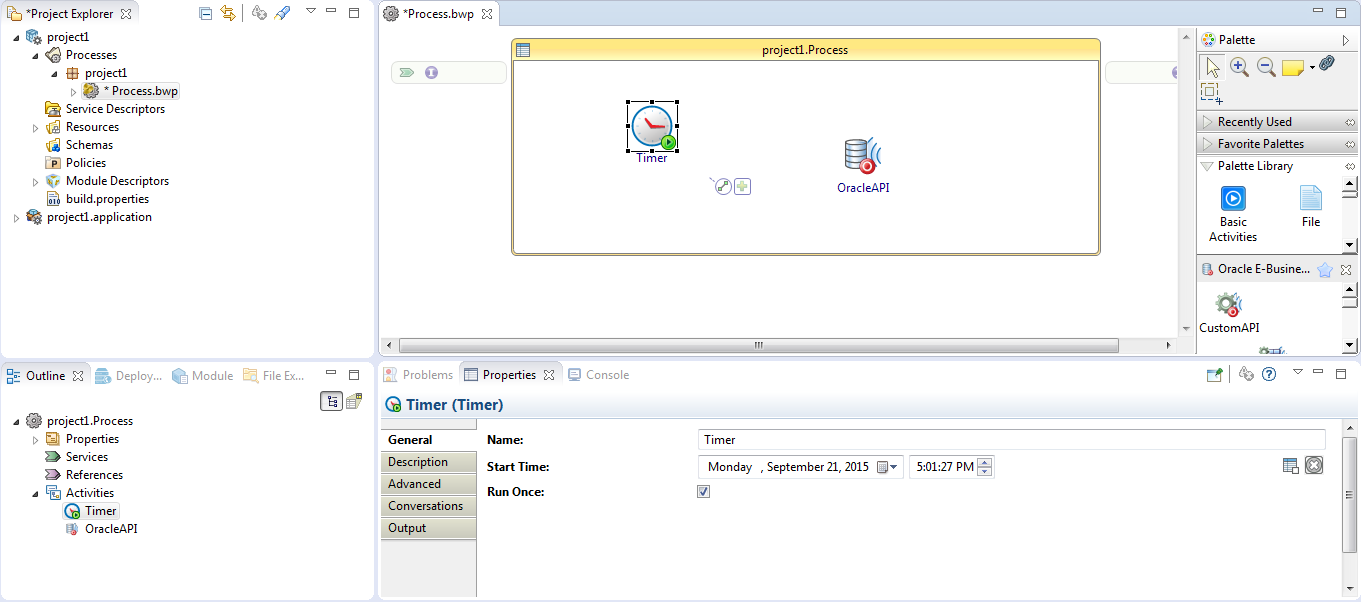

In the Project Explorer view, expand the created project, and open the empty process from the Processes folder.
Select an activity from the Palette view, and drop it in the Process editor. For example, select and drag the Timer activity from the General Activities palette and the Oracle API activity from the Oracle E-Business Suite palette.
Drag the icon to create a link between the activities.
Configure the added activities as described in Oracle E-Business Suite Palette.

Note: An OEBS connection is required when configuring the OEBS activities. See Creating an Oracle E-Business Suite Connection for more details about how to create an OEBS connection.
Click File > Save to save the project.

Result

The process with configured activities is saved: process_name.bwp. The process is saved in the Processes\project_name directory by default or the directory you specified.
