EGO_ITEM_PUB Package Configuration

You can use the EGO_ITEM_PUB package to create inventory items and assembly items.

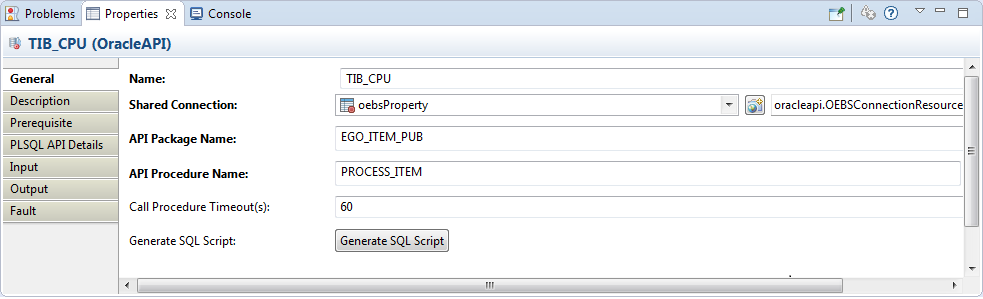

The following figure shows a sample configuration of the EGO_ITEM_PUB package:

Note: As defined in Oracle Integration Repository, EGO_ITEM_PUB.PROCESS_ITEM is a convenient wrapper to Process_Item. You can use this API to create or update an item by passing only the most important and commonly used item attributes.

The following table lists the EGO_ITEM_PUB package inputs of the TIB_CPU activity in the OracleAPI project:

Parameter	Type	Input
P_API_VERSION	NUMBER	1.0
P_INIT_MSG_LIST	VARCHAR2	T
P_COMMIT	VARCHAR2	T
P_TRANSACTION_TYPE	VARCHAR2	CREATE
P_LANGUAGE_CODE	VARCHAR2	US
P_TEMPLATE_ID	NUMBER	259
P_TEMPLATE_NAME	VARCHAR2	Purchased Item
P_SEGMENT1	VARCHAR2	TIB_CPU
P_ORGANIZATION_ID	NUMBER	204
P_ORGANIZATION_CODE	VARCHAR2	V1
P_CATALOG_STATUS_FLAG	VARCHAR2	N
P_DESCRIPTION	VARCHAR2	TIBCO EBS Plug-in Create CPU item
P_PRIMARY_UOM_CODE	VARCHAR2	Ea
P_INVENTORY_ITEM_STATUS_CODE	VARCHAR2	Active
P_BOM_ENABLED_FLAG	VARCHAR2	Y
P_ENG_ITEM_FLAG	VARCHAR2	N

Note: You can define these parameters manually or automatically by defining a module property. For how to define module properties, see "Using Process and Module Properties" in TIBCO ActiveMatrix BusinessWorks Samples.
