After configuring the process, you might want to debug or test the process.
Prerequisites
Ensure that you have configured the process. For more information, see
Configuring a Process.
Procedure
In TIBCO Business Studio, navigate to the process that you want to test.
On the toolbar, click
and select
Debug > Debug Configurations
Click
BusinessWorks Application > BWApplication in the left panel of the opened dialog. By default, all applications in the current workspace are selected on the
Applications tab. Ensure that only the application you want to debug is selected in the right panel of the
Applications tab.
Click
Debug to test the process in the selected application.

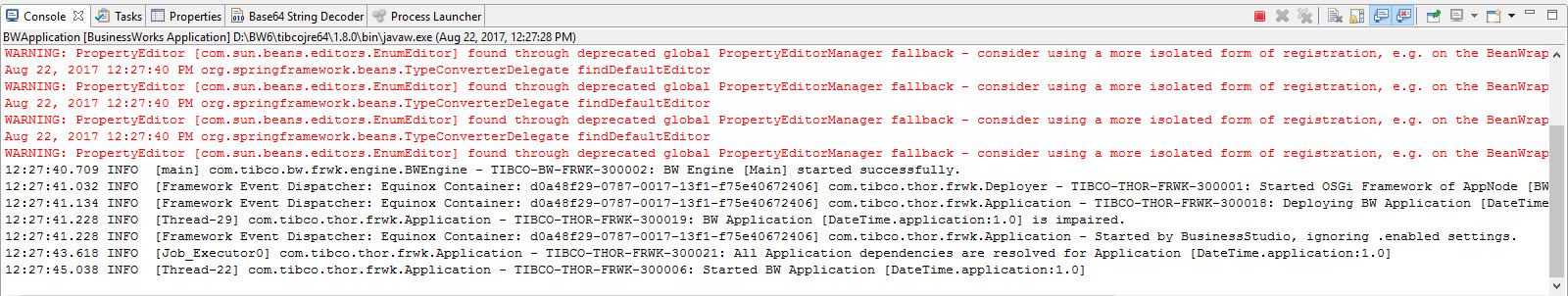

TIBCO Business Studio switches to the Debug perspective. The debug information is displayed in the
Console view, as shown in the following figure.
In the
Debug tab, expand the debugged process and click an activity.
In the upper-right corner, click the
Job Data view, and then click the
Output tab to check the activity output.
