Creating a Project

The first task using the plug-in is creating a project. After creating a project, you can add resources and processes.

An Eclipse project is an application module configured for TIBCO ActiveMatrix BusinessWorks. An application module is the smallest unit of resources that is named, versioned, and packaged as part of an application.

Note: When you import an existing project to the current workspace of TIBCO Business Studio, if you click Select root directory in the Import Projects dialog, you must select the Copy projects into workspace check box.
    Procedure
  1. Start TIBCO Business Studio using one of the following ways:
    Microsoft Windows: click Start > All Programs > TIBCO > TIBCO_HOME > TIBCO Business Studio version_number > Studio for Designers.
    Mac OS and Linux: run the TIBCO Business Studio executable file located in the TIBCO_HOME/studio/version_number/eclipse directory.
    Note: On Mac OS, to load the environment variables in the launchd.conf file correctly, ensure that the shell is bash when you start TIBCO Business Studio on a command line.
  2. From the menu, click File > New > BusinessWorks Resources to open the BusinessWorks Resource wizard.
  3. In the "Select a wizard" dialog, click BusinessWorks Application Module and click Next to open the New BusinessWorks Application Module wizard.
  4. In the Project dialog, configure the project that you want to create:
    1. In the Project name field, enter a project name.
    2. By default, the created project is located in the workspace current in use. If you do not want to use the default location for the project, clear the Use default location check box and click Browse to select a new location.
    3. Use the default version of the application module, or enter a new version in the Version field.
    4. Keep the Create empty process and Create Application check boxes selected to automatically create an empty process and an application when creating the project.
    5. Select the Use Java configuration check box if you want to create a Java module.
      A Java module provides the Java tooling capabilities.
    6. Click Finish to create the project.

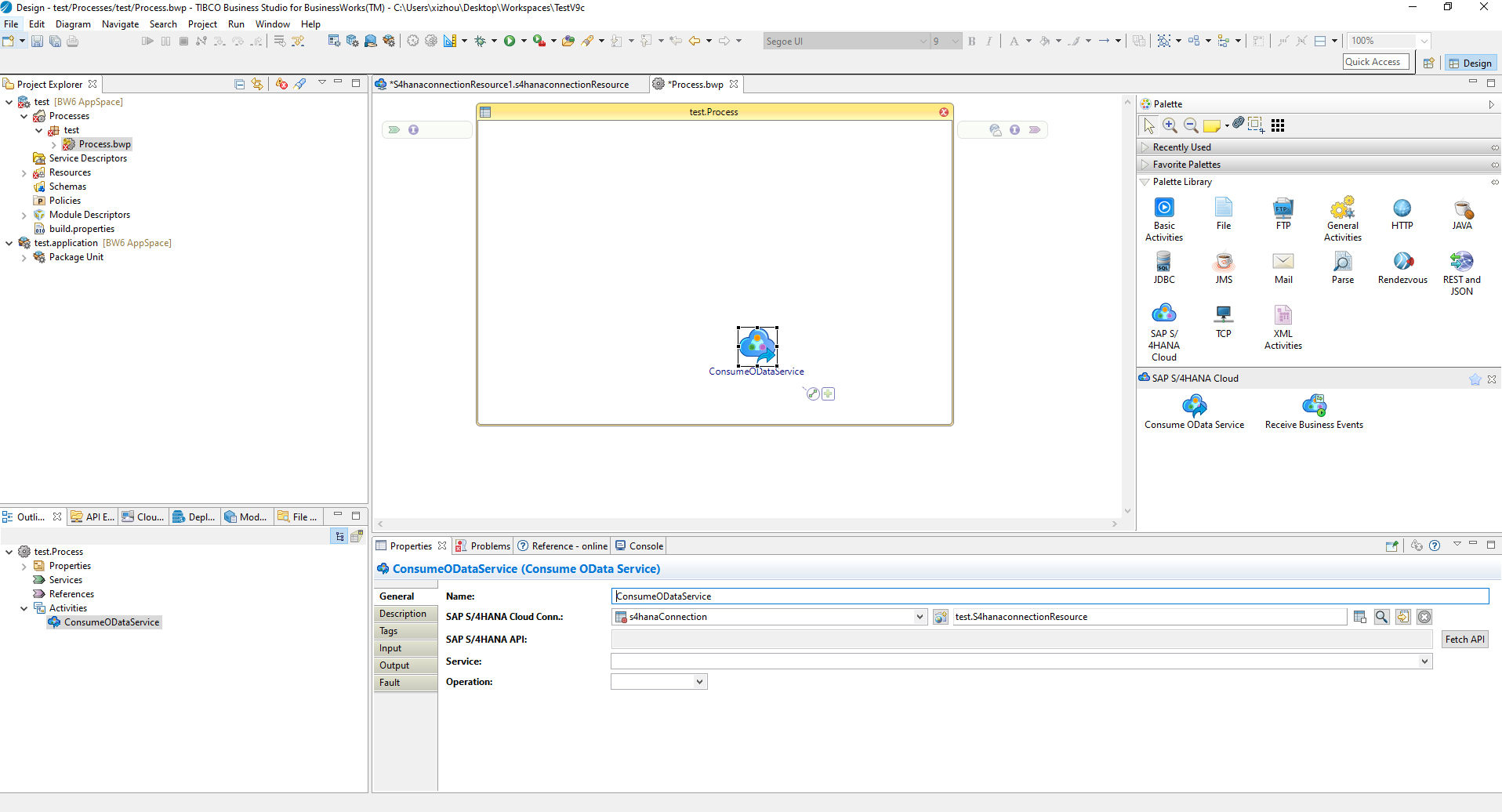

ResultThe project with the specified settings is displayed in the Project Explorer view.
