Proxy Settings

The Plug-in HTTP proxy property is provided in TIBCO ActiveMatrix BusinessWorks Plug-in for Salesforce.com.

When using Proxy, you have to operate proxy settings.

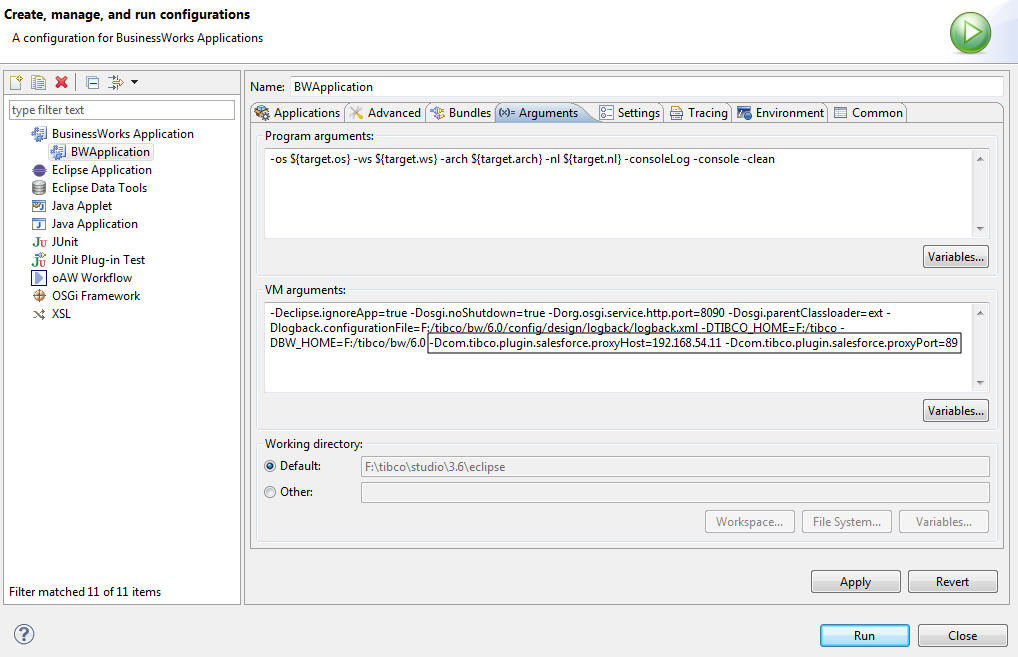

To conveniently configure Proxy in TIBCO Business Studio, you can write the property line -Dcom.tibco.plugin.salesforce.proxyHost=192.168.54.11 -Dcom.tibco.plugin.salesforce.proxyPort=89 into the place described by the following figure:

When you configure Proxy for deployment, you have to write the property lines

com.tibco.plugin.salesforce.proxyHost=192.168.54.11
com.tibco.plugin.salesforce.proxyPort=89

into the TIBCO_HOME\bw\6.3\domains\defaultdomain\appnodes\defaultappspace\defaultappnode\config file.

Property	Description
`com.tibco.plugin.salesforce.proxyHost`	Required. The proxy host name or its IP address.
`com.tibco.plugin.salesforce.proxyPort`	Required. The port on which the proxy service is listening.
`com.tibco.plugin.salesforce.proxyUser`	Optional. The user name for logging on to the proxy server.
`com.tibco.plugin.salesforce.proxyPwd`	Optional. The password for logging on to the proxy server.
`com.tibco.plugin.salesforce.proxyTimeout`	Optional. The timeout value in minutes for an HTTP call. This property is to help avoid long wait times when attempting to retry through a proxy.
