Salesforce Composite Graph
The Salesforce Composite Graph activity allows more number of subrequest to be added in single API call than the Composite Dependent Activity. You can use the output of one subrequest as the input to any subsequent subrequest in the same graph.
General
To establish a connection with the Salesforce.com server, you must provide the following information on the General tab:
| Field | Module Property? | Description |
|---|---|---|
| Name | No | The name displayed as the label of the activity in the process. |
| Salesforce Connection | Yes | The path to the Salesforce shared resource.
Click
Choose/Create Default Resource |
Description
On the Description tab, you can enter a short description for the Salesforce Composite Graph activity.
Input
On the Input tab for the Salesforce Composite Graph activity, you can specify the following input values:
| Input Items | Data Type | Description |
|---|---|---|
| SalesforceSessionInput (All fields in this section are optional.) | ||
| externalSessionUsed | Boolean | Specifies whether an external session ID is used.
If the value is set to
In this case, when the session has to be refreshed, the refreshed operation cannot be performed and an error occurs. |
| sessionId | String | The unique ID associated with this session |
| serverUrl | String | The web address of the endpoint that is used by this operation |
| graphRequests | The body of the subrequest in JSON format or using Salesforce graph Batch subrequest.
For more information about creating dependent requests, see Creating a Composite Graph Subrequest. |
|
| SalesforceOptionalInput (All fields in this section are optional.) | ||
| timeout | Boolean | The timeout value.
It specifies the duration (in milliseconds) for which an internal API call waits before data is returned. |
| HttpHeader (All fields in this section are optional.) | Request headers and their values to include with the subrequest.
For more information, see the Salesforce API documentation. |
|
| key | String | HTTP header name |
| value | String | HTTP header value |
Creating a Salesforce Composite Graph Subrequest
- To create a subrequest, in the upper right corner of the
Input tab, click
Create Salesforce Composite Subrequest
.

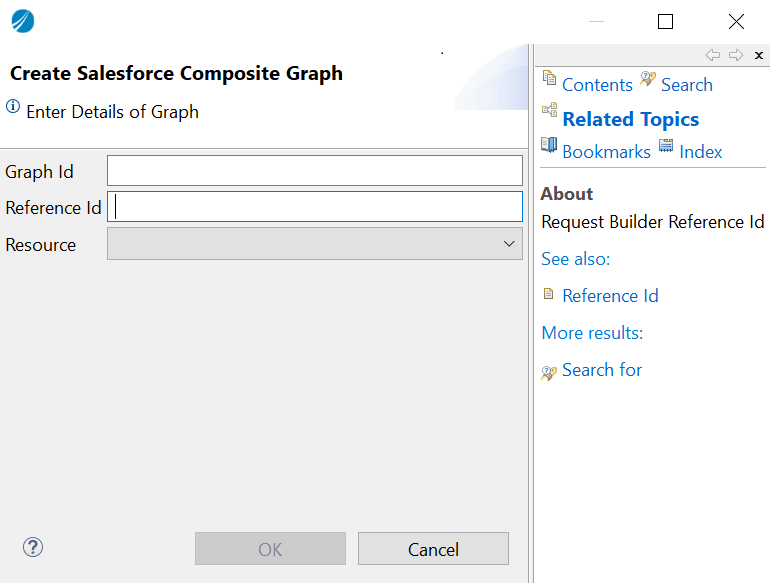

- In the
Create Salesforce Composite SubRequest dialog box that is displayed, enter the graph ID, reference ID, and then select the resource. Depending on the resource selected, provide further inputs and click
OK.
Note: As per Salesforce.com, the Composite Graph activity does not support queryAll and query options.
The following fields appear on the Input tab. For more information about these fields, see the Salesforce Composite API documentation.
| Input Item | Data Type | Description |
|---|---|---|
| graphRequests | ||
| graphinput | graph input is displayed in the order that graphs are created | |
| graphId | string | Unique ID that can be given to the created graph |
| subRequest | Subrequests are displayed in the order that subrequest is created | |
| referenceId | String | Unique Reference ID that identifies a particular subrequest and can be used as reference in other subsequent sub-requests |
| url | String | URL of the REST API endpoint |
| method | String | HTTP method (Examples: GET, POST, PATCH, DELETE) |
| httpHeaders | Request headers and their values to include with the subrequest | |
| key | String | HTTP header name |
| value | String | HTTP header value |
| body | ||
| sObject | Provide input for the subrequest body.
Condition: The sObject is substituted with the object type only when you select the following items in the Salesforce Composite Subrequest wizard:
|
|
Output
The Output tab displays the activity results.
The following table lists the output elements on the Output tab of the Salesforce Composite Dependent activity:
| Output Item | Data Type | Description |
|---|---|---|
| SalesforceCompositegraphOutput | ||
| graph+ | ||
| graphId | String | The ID that maps to the graph's response |
| graphResponse | The response of the graph that is created | |
| compositeResponse | ||
| referenceId | Boolean | The ID that maps to the subrequest's response |
| httpStatusCode | String | An HTTP status code for the current subrequest |
| httpHeaders | Request headers and their values to include with the subrequest | |
| key | String | HTTP header name |
| value | String | HTTP header value |
| body | String | Response body of the subrequest in JSON format |
| IsSuccessful? | Boolean | Indicates true if all the subrequests are successful and false if there is even one unsuccessful subrequest. |
Fault
On the Fault tab, you can find the error code and error message of the Salesforce Composite Graph activity.
| Fault | Thrown when... |
|---|---|
| SalesforceRestException | There is a problem with REST request, response or some other REST API issue |
| SalesforceLoginException | An error occurs when logging in to the Salesforce.com server |
| SalesforceConnectionNotFoundException | An error occurs when the external session ID is not used or the Salesforce connection is not configured correctly |
