Configuring a Process

After creating a project, an empty process is created. You can add activities to an empty process to complete a task.

Prerequisites

Ensure that you have created an empty process when creating a project. See Creating a Project for details.

Procedure

  1. In the Project Explorer view, click the created project and open the empty process from the Processes folder.

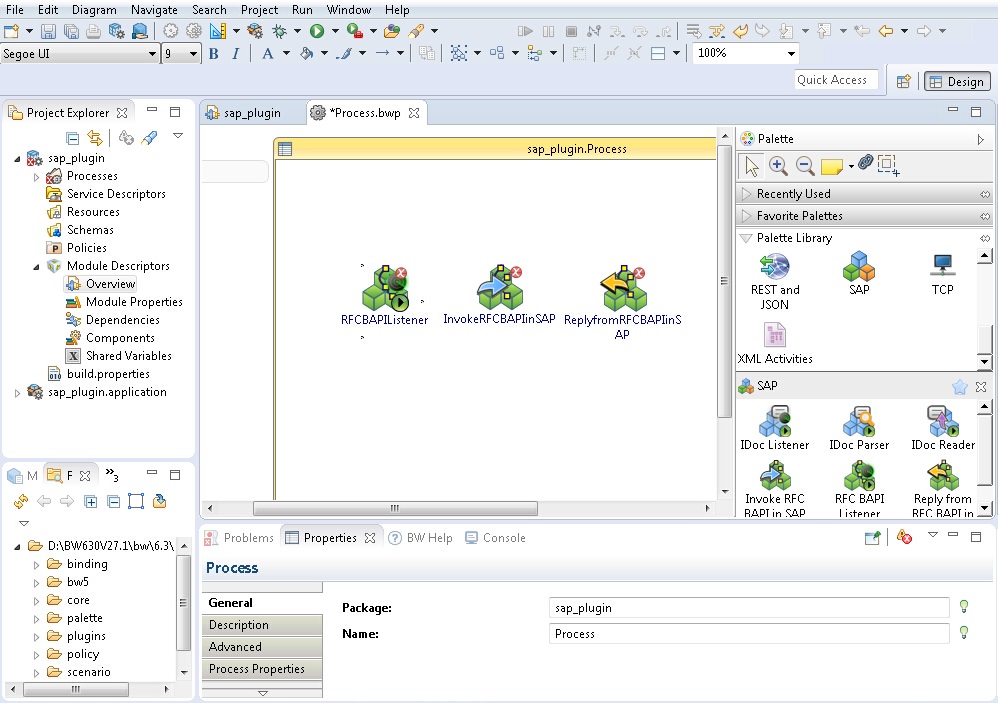

  2. Select an activity from the Palette view and drop it in the Process editor. For example, select and drop the RFC BAPI Listener, the Invoke RFC BAPI in SAP, and the Reply from RFC BAPI in SAP activities from the SAP palette.

  3. Drag the icon to create a transition between the added activities.
  4. Configure the added SAP activities.
    See SAP Palette for details.
    Note: When mapping the output of the previous activity as the input of the current activity, choose the AutoMap option.
  5. Click Save to save the project.
