Schema

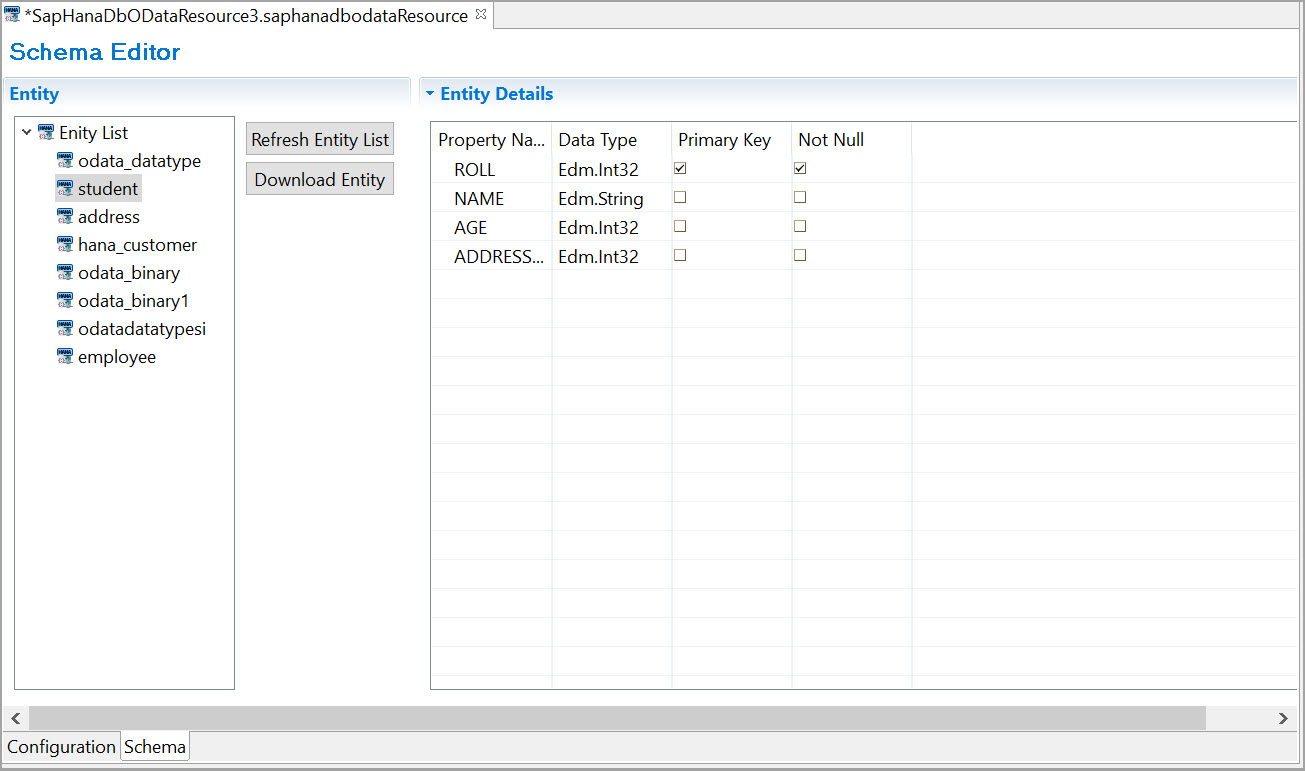

The Schema tab lists the entities that are exposed as OData services in the XS OData file entered as part of URL in Configuration tab.
Note: For this release, only TABLE entity is supported.


On the Schema tab, perform the following tasks:
  • Refresh Entity List: Update the entity list.
  • Download Entity: Download the metadata of the selected entity.
    Note: Only one entity can be downloaded at a time.
Note: Before launching TIBCO Business Studio for BusinessWorks, add the following VM argument to the TIBCO_HOME/studio/<version>/eclipse/TIBCOBusinessStudio.ini file:

-Djavax.xml.stream.XMLInputFactory=com.sun.xml.internal.stream.XMLInputFactoryImpl
