Event Handler Configuration

On the Event Handler Configuration tab, you can bind or unbind the event handler with one or more Microsoft SharePoint lists.

Before configuring event handlers, you have to select one JMS connection entry on the JMS Configuration tab.

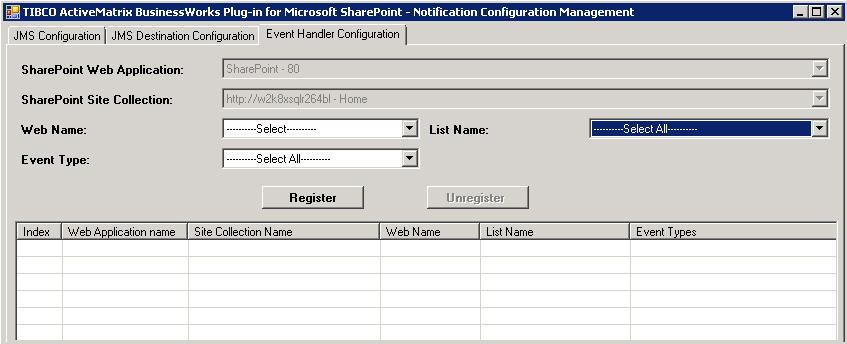

The following table lists the GUI elements on the Event Handler Configuration tab:

GUI Element Description
SharePoint Web Application This field is not configurable. The value is taken from the JMS Configuration tab.
SharePoint Site Collection This field is not configurable. The value is taken from the JMS Configuration tab.
Web Name (Required) Specify the target website in the site collection.
List Name (Required) Specify the list that you want to monitor.
Event Type (Required) Specify the event type. The following options of the event type are available:
  • Select All: the event handler is triggered when any events occur on the list you have specified.
  • ItemAdded: the event handler is triggered when a new list item is added to the list you have specified.
  • ItemUpdated: the event handler is triggered when an existing list item is updated from the list you have specified.
  • ItemDeleting: the event handler is triggered when an existing list item is about to be deleted from the list you have specified.
  • ItemDeleted: the event handler is triggered when an existing list item is deleted from the list you have specified.
Register Click this button to bind the event handler to the selected lists. If you select the Select All item in the List Name list, the event handlers are bound to all the lists after clicking this button.
Unregister Click this button to unbind the event handler from the selected lists. If you select the Select All item from the List Name list, and check all the entries from the table, the event handlers are unbound from all the lists after clicking this button.
