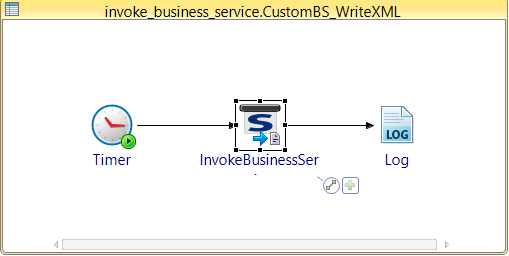

Sample Project to Show the Custom Business Service Write XML

You can use the example CustomBS_WriteXML.bwp to understand how the XML Write to File Business service invoked using the Business Service activity.

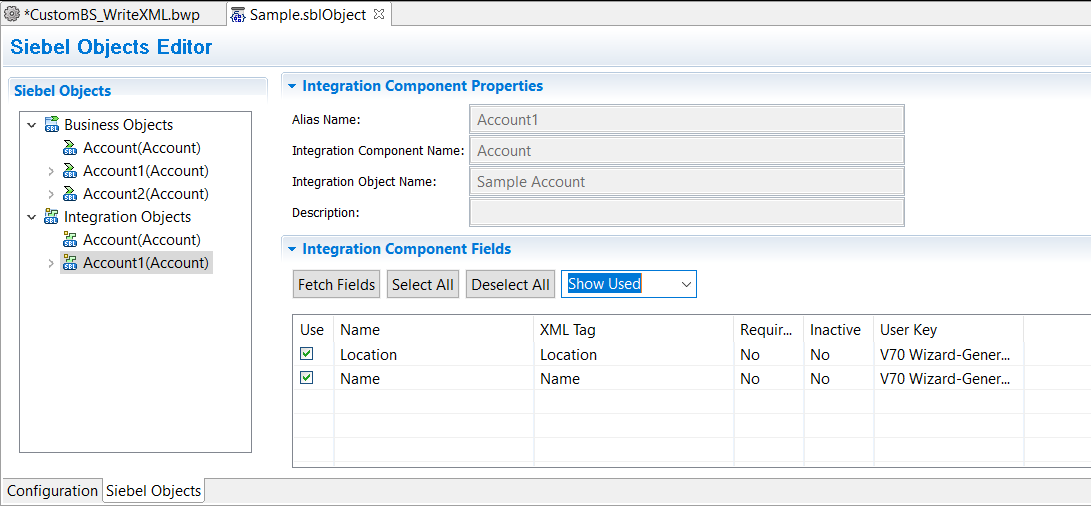

The following figure shows the Custom Business Service Write XML using the Siebel Objects Editor:

This is application invokes the WriteEAIMsg Business Service Method of EAI XML Write to File Business Service and create the file in Siebel Server with input parameters populated in the Input tab of the Invoke Business Service Activity.
