Creating a Load SWIFT MT Schema Shared Resource

After creating a project, you can add a Load SWIFT MT schema shared resource to select a SWIFT specification and message type. This shared resource is used for the Parse SWIFT MT, Render SWIFT MT, and Route SWIFT MT activities.

Before you begin The Load SWIFT MT Schema shared resource is available at the Resources level. Ensure that you have created a project, as described in Creating a Project.
    Procedure
  1. Expand the created project in the Project Explorer view.
  2. To open the schema loader wizard, right-click the Resources folder, and then click New > Load SWIFT MT Schema.
  3. The resource folder, package name, and resource name of the Load SWIFT MT Schema are provided by default. If you do not want to use the default configurations, change them accordingly. Then, click Finish.

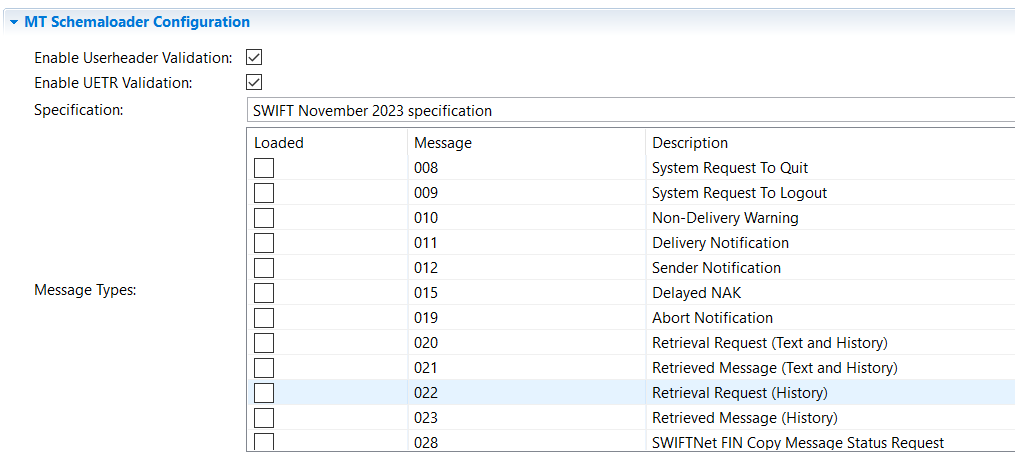

    The following schema loader editor appears:

    On creation of the MT Schema Shared Resource, the Enable Userheader Validation and Enable UETR Validation checkboxes are by default checked.

  4. From the Specification list, select a SWIFT specification.
  5. In the Message Types table, find the appropriate message type schema, and then select the checkbox in the Loaded column.
  6. Click Load Selected to load the message type schemas.
    Note: To make the message types available or unavailable in the project, click Load Selected or Unload Selected after selecting or deselecting the message type.
