Configurations for MatchRecords Process

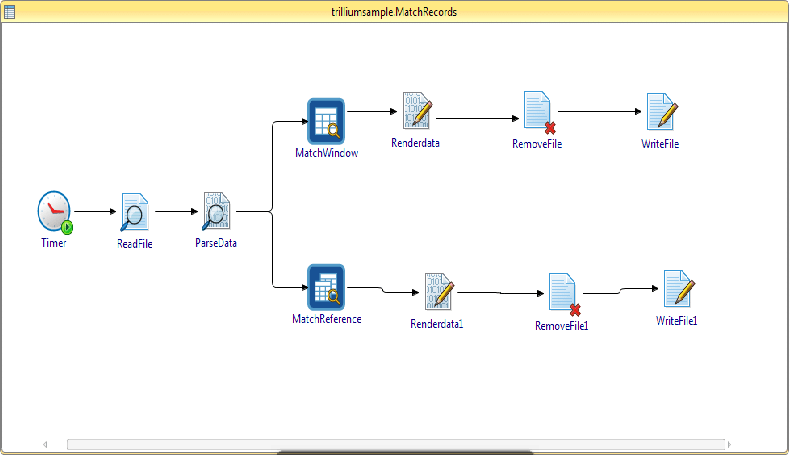

The MatchRecords process contains the following activities.

Activity	Description
Timer	Starts the process at a specific time.
ReadFile	Reads the MatchWindowRecords.csv file located in the TrilliumSample\Data folder.
ParseData	Takes the input from the MatchWindowRecords.csv file and processes it by converting it into a specified schema tree.
MatchWindow	Sends data to a Matcher service running on Trillium Software Director, finds out many records in the match window and returns matched patterns.
Renderdata	Takes an input of a data schema and renders it as a text string.
RemoveFile	Deletes the matched output file.
WriteFile	Generates the MatchedWindowRecords.csv file located in the TrilliumSample\Data folder.
MatchReference	Sends data to a Matcher service running on Trillium Software Director, finds out many records in the match window and returns matched patterns for the matching candidate.
Renderdata1	Takes an input of a data schema and renders it as a text string.
RemoveFile1	Deletes the matched output file.
WriteFile1	Generates the MatchedReferenceRecords.csv file located in the TrilliumSample\Data folder.
