Invoke Oracle Tuxedo Service

Use the Invoke Tuxedo Service activity to invoke a Tuxedo service as an asynchronous request/response.

General



The various tabs in the Invoke Oracle Tuxedo Service window are explained as follows.

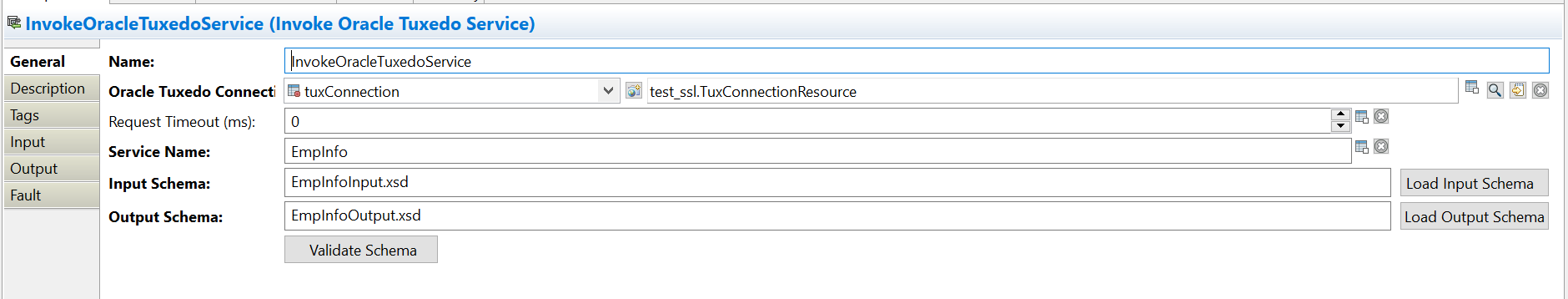

In the General tab, you can specify the reference to the Oracle Tuxedo Connection shared resource and XSD schemas related to the Oracle Tuxedo service invoked by the activity.

The following table lists the configurations in the General tab of the Invoke Oracle Tuxedo Service activity:

Field Module Property Visual Difference Description
Name No Yes Specify the name to be displayed as the label for the activity in the process.
Oracle Tuxedo Connection Yes Yes Click to select an Oracle Tuxedo Connection shared resource. The Oracle Tuxedo Connection is strictly used for runtime since schema is downloaded using the Oracle Tuxedo Schema shared resource.
Request Timeout (ms) Yes Yes Timeout property at activity level which would end request to Oracle Tuxedo server should the timeout value is met.
Service Name Yes Yes Specify the service name to invoke Oracle Tuxedo service.
Note:
  • You can use only Literal values as module property is not supported.
  • For the projects developed in previous versions where the Service Name property did not exist, the Service Name can be maintained in this release manually or by using the Refactor process available in TIBCO Business Studio.
Input Schema No Yes The XSD schema used for the request to the Oracle Tuxedo server. Click the Load Input Schema button to pick up the schema.
Output Schema No Yes The XSD schema used for the reply from the Oracle Tuxedo server. Click the Load Output Schema button to pick up the schema.
Validate Schema No NA Validates the input and output XSD schema field name and field ID with Jolt Repository field name and field ID for mentioned service name.

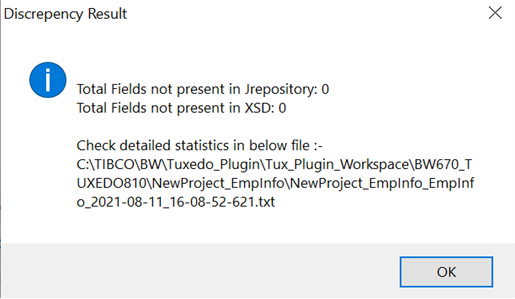

Note: The summary shown on the pop-up screen only shows discrepancies where a field exists in XSD but not in Jolt Repository and vice versa. The generated file contains more information concerning discrepancies in field IDs. To check for incorrect field IDs, execute the Refactor process available in TIBCO Business Studio.

After you click Validate Schema, it generates a .txt file displaying the discrepancy of field ID of XSD schema and field ID of jrepository. A sample .txt file is shown below :

Total matches:0

Total mis-matches: 10

Following fields are mis-matched for XSD and Jrepository:

Field_Name: EMPID XSD Field_ID: 33558533 JRepository Field_ID: 33554433

Field_Name: SALARY XSD Field_ID: 100667401 JRepository Field_ID: 100663301

Field_Name: CITY XSD Field_ID: 167776269 JRepository Field_ID: 167772169

Field_Name: DEPTNAME XSD Field_ID: 167776264 JRepository Field_ID: 167772164

Field_Name: HRA XSD Field_ID: 4107 JRepository Field_ID: 7

Field_Name: EVENT_NAME XSD Field_ID: 167776270 JRepository Field_ID: 167772170

Field_Name: DEPTID XSD Field_ID: 33558534 JRepository Field_ID: 33554434

Field_Name: EMPNAME XSD Field_ID: 167776263 JRepository Field_ID: 167772163

Field_Name: BASIC XSD Field_ID: 134221834 JRepository Field_ID: 134217734

Field_Name: CFLAG XSD Field_ID: 67112972 JRepository Field_ID: 67108872

Total fields which are not present in Jrepository but present in XSD: 0

Total fields which are not present in XSD but present in Jrepository: 0

Note: If there is any mismatch of the field name between XSD Schema and Jolt Repository, the user can get it corrected by contacting the Oracle Tuxedo administrator team.

Description

In the Description tab, you can enter a short description for the Invoke Oracle Tuxedo Service activity.

Input

The Input tab contains the request message for invoking the Oracle Tuxedo service.

Output

The Output tab contains the reply message from the Oracle Tuxedo service.

Fault

The Fault tab contains the fault schemas used by the activity when generating a specific error. The fault name would be TuxedoPluginException.

The following table lists error schema elements in the Fault tab of the Invoke Oracle Tuxedo Service activity:
Error Schema Element Data Type Description
msg String Displays the error message.
msgCode String Displays the error code.
