Setting the Required Configurations for Fulfillment Catalog

Prerequisites

Note: Ensure that the Fulfillment Catalog application is up and running.

Procedure

  1. Access Fulfillment Catalog Configurator.
  2. Go to Tools > Add-on Plug-in Installer. The MDM Plug-in add-on installer pop up is displayed.

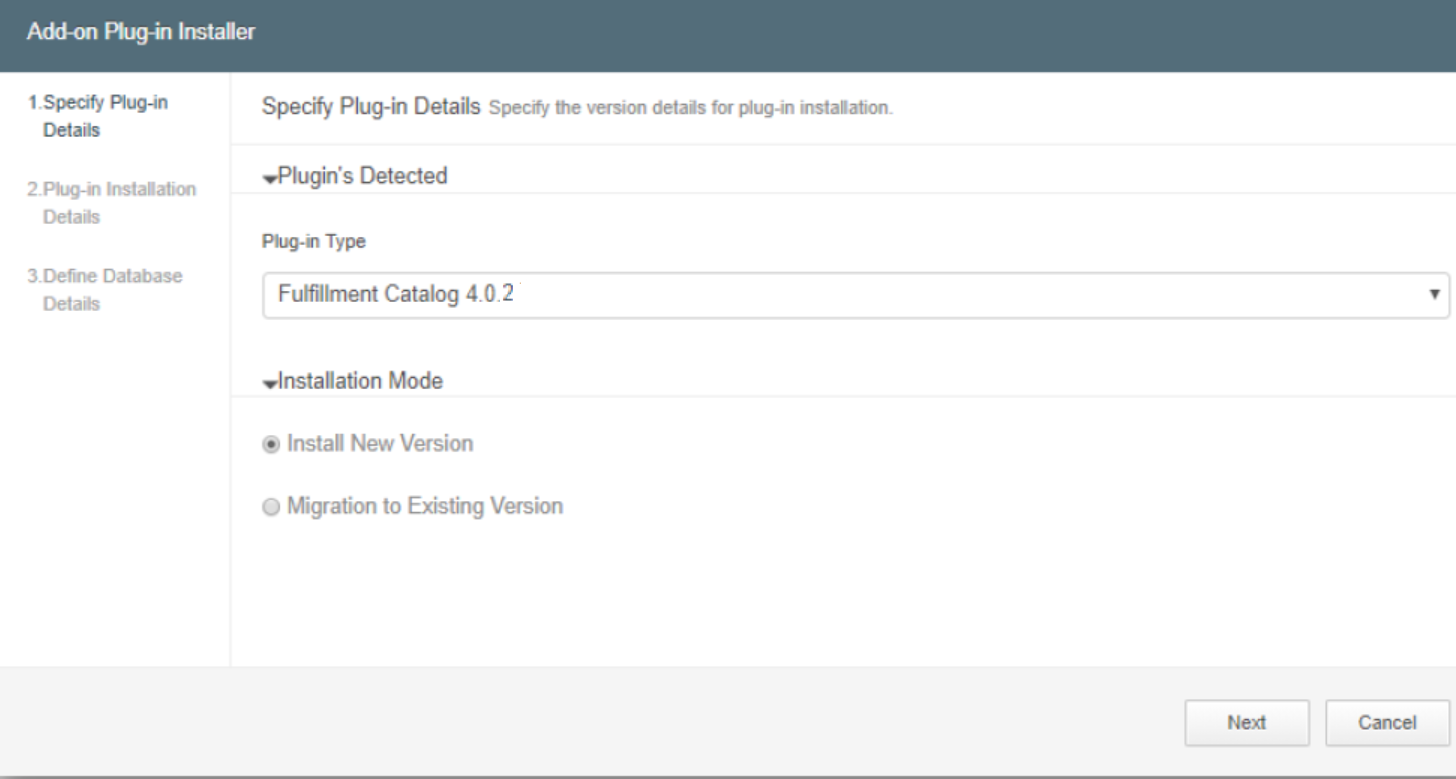

    Plug-in Type Selection
  3. Select the Plug-in type as Fulfillment Catalog 4.0.2 and click Next.
  4. Select the Installation Mode.
  5. Click Next.

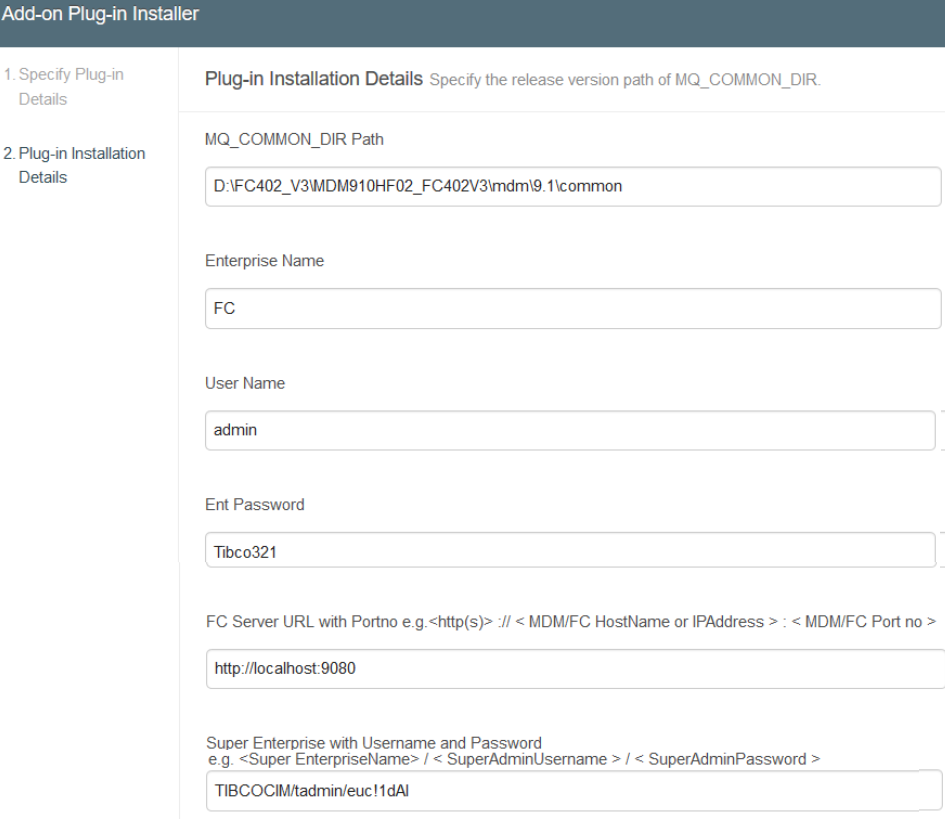

  6. Specify the Enterprise Name,User Name,Ent Password, FC Server URL with Portno, Super Enterprise with Username and Password, as per the syntax and verify the $MQ_COMMON_DIR path. Click Next.
    Plug-in Configurator
  7. Click Finish. The Configurator creates the enterprise with the provided username and password as admin. These details must be the same as those used in TIBCO MDM. For detailed information on the Configurator, see TIBCO MDM System Administration document.
    Note: You can use any username, but you must use the same username for Fulfillment Catalog.
  8. On the Installation Summary page, click the OK button.
    Verify the following components:

    • Verify the following configuration settings under the $MQ_COMMON_DIR directory:

      • Maps (.xsl) are created in the $MQ_COMMON_DIR/<createdenterprisename>/maps directory.
      • Workflow files are created in the $MQ_COMMON_DIR/<createdenterprisename>/workflow directory.
      • Rulebase file is created in $MQ_COMMON_DIR/<createdenterprisename>/rulebase directory
    Note: After the installation, log in to TIBCO Fulfillment Catalog. Verify the following:
    • Whether the enterprise and default credentials (admin) were successfully created.
    • Whether the repositories were created, and whether the process definition was configured.
    • To integrate Fulfillment Catalog with Fulfillment Provisioning, provided you have Fulfillment Provisioning configured on your machine, refer to the Integration Between Fulfillment Catalog and Fulfillment Provisioning section in the TIBCO Fulfillment Catalog User's Guide.
