Setting Up TIBCO Product and Service Catalog Metadata Studio Project

To set up the TIBCO Product and Service Catalog metadata studio project, perform the following steps:

Procedure

  1. Open the workspace of MDM Studio.

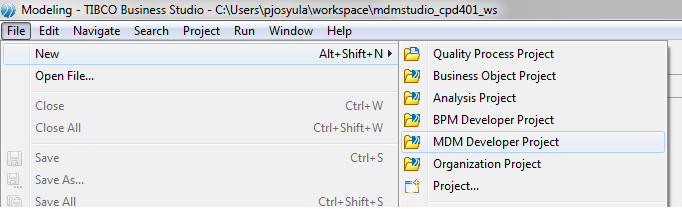

  2. Click File > New > MDM Developer Project.
    The New MDM Developer Project dialog opens.

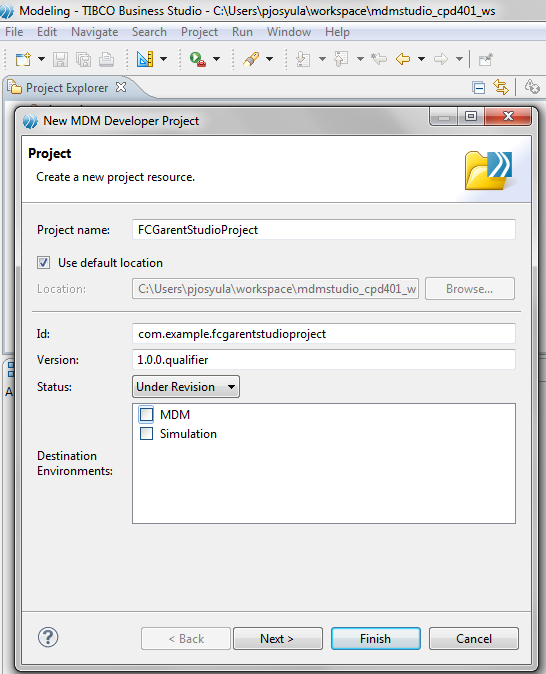

  3. Enter a name for the project for the Project name field and click Next.

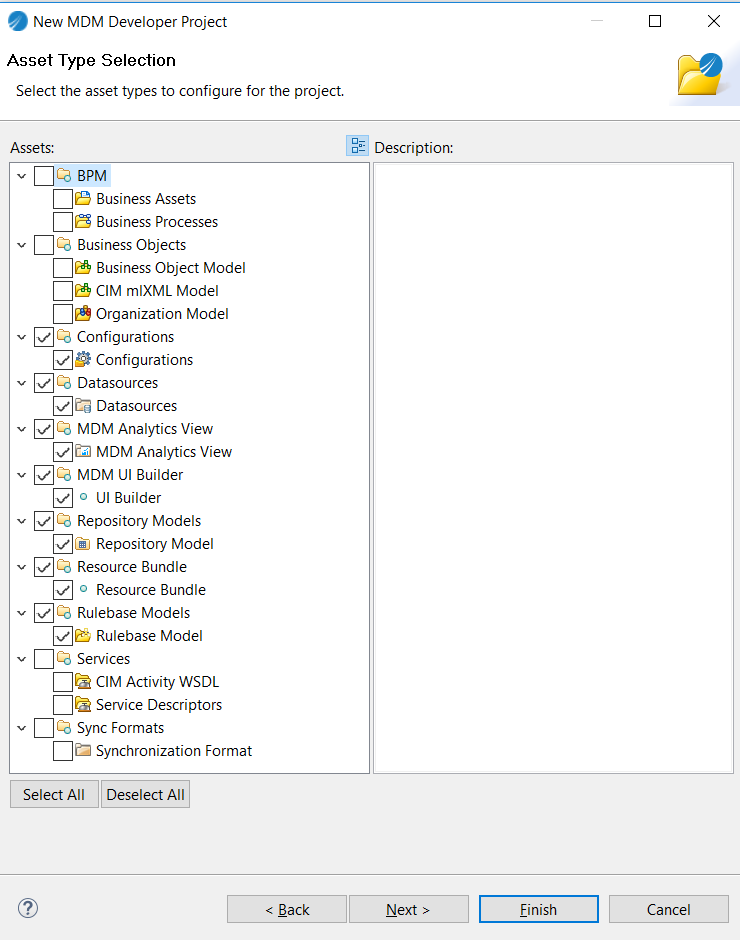

  4. Unselect Services and Sync Formats and click Next again.

  5. Click Next.
  6. Click Finish.

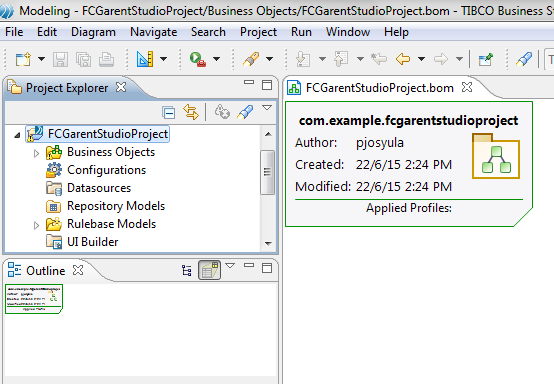

    The newly created TIBCO MDM project is displayed.

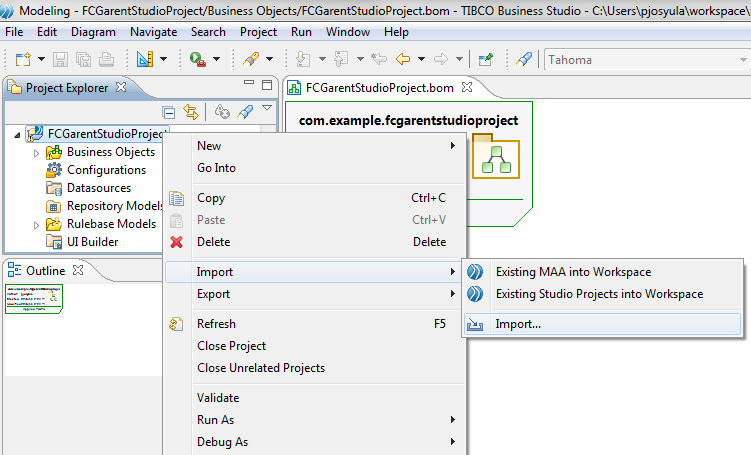

  7. Right-click the new project and click Import > Import.

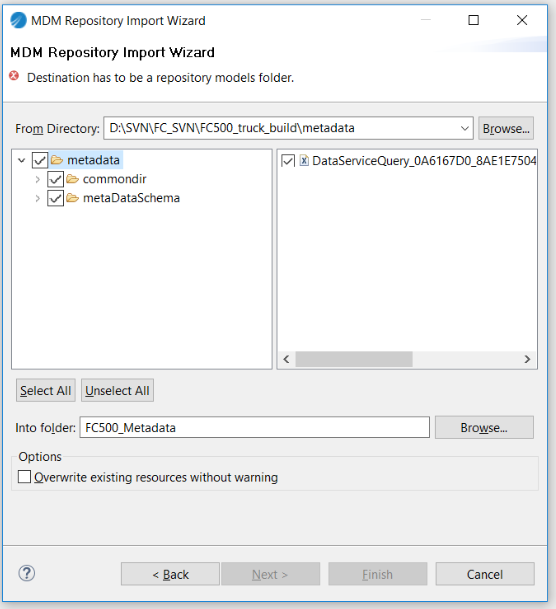

  8. The Import dialog box opens. Select MDM Repository Designer > Import Repository Meta Data. Click Next.
  9. Locate and select the file DataServiceQuery_0A6167D0_8AE1E7504F699F87014F69B4E48C02BFMember1 by clicking Browse. It is placed in the directory where the ZIP file was extracted. Perform the following steps to extract the ZIP file:
    1. Open the <AC_HOME>/samples directory and select the ProductAndServiceCatalog_Metadata.zip file.
    2. Extract the ZIP file and you will find the DataServiceQuery_0A6167D0_8AE1E7504F699F87014F69B4E48C02BFMember1.XML file.

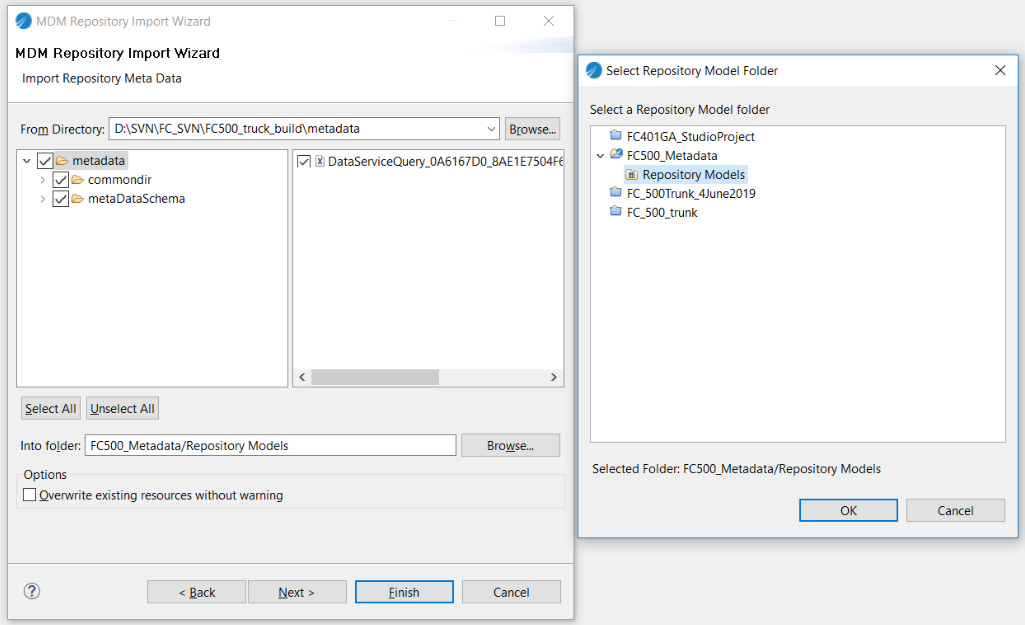

  10. Click Browse button beside the Into Folder field. The Select Repository Model Folder dialog opens. Select the Repository Models folder and click OK and then click Next.

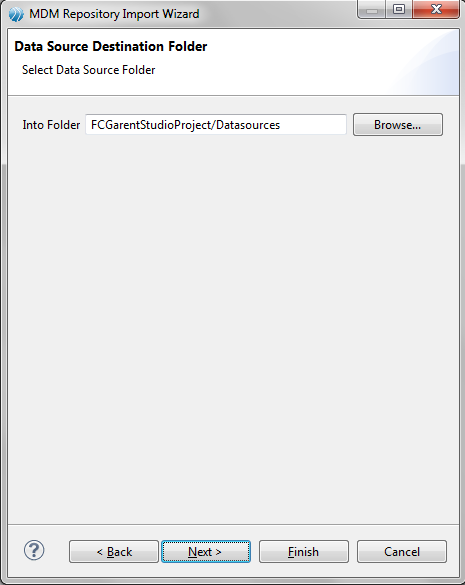

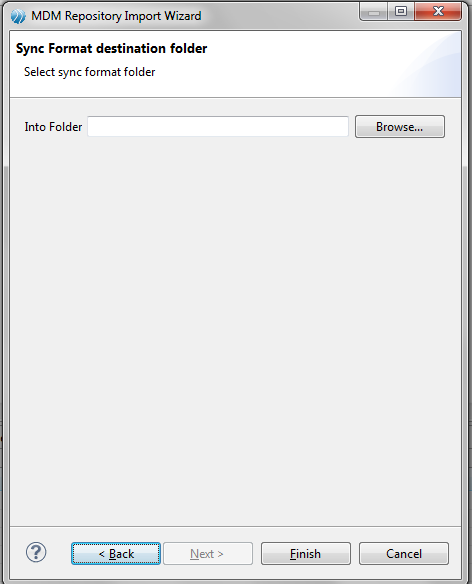

  11. Click Next.

  12. Click Finish.

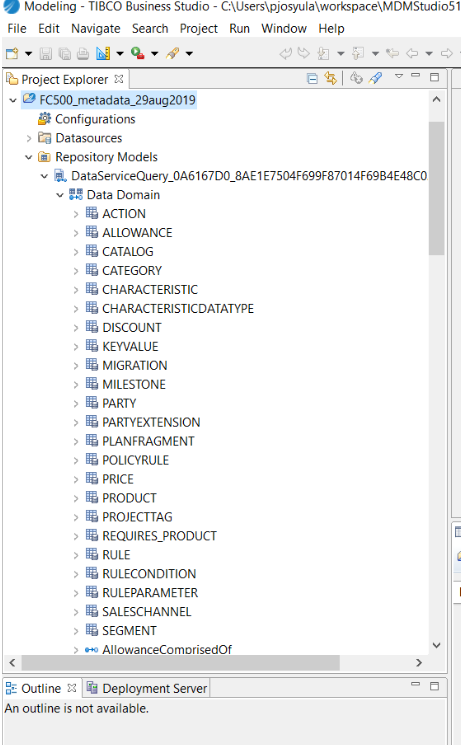

    This completes the Import of TIBCO Product and Service Catalog Metadata repositories, relationships, data sources, and input maps. Click the Problem tab. If 0 errors is displayed then the import is successful. The warnings can be ignored.
