Accessing User Interface for Partial Export of TIBCO Product and Service Catalog Data

To execute Partial Export using TIBCO Product and Service Catalog user interface, perform the following steps:

Procedure

Click TIBCO Product and Service Catalog Operation > Export PSC Data.
Select Full/Partial Enterprise Data Export.

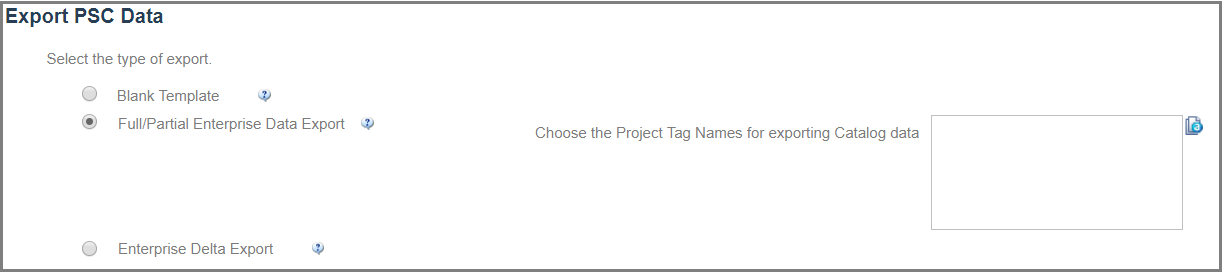

Export PSC Data Options
Click the icon for the Choose the Project Tag Names for exporting Catalog data field.
The Multi-value Attribute Details dialog opens.
Select the Project Tag Name, click the + sign and click the Done button.

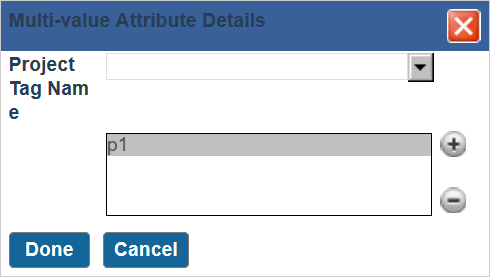

Multi-value Attribute Details Dialog Box
When you click the Export label, the workflow is invoked. If the workflow executes successfully, it generates the csv files of the data (repository and relationship instance(s)) which matches the one or more selected tag names. If there are multiple tags selected, it is an OR between the tags while finding the match. The output export file is available for download using a link in the event log.
The link to the output export file is illustrated as follows:

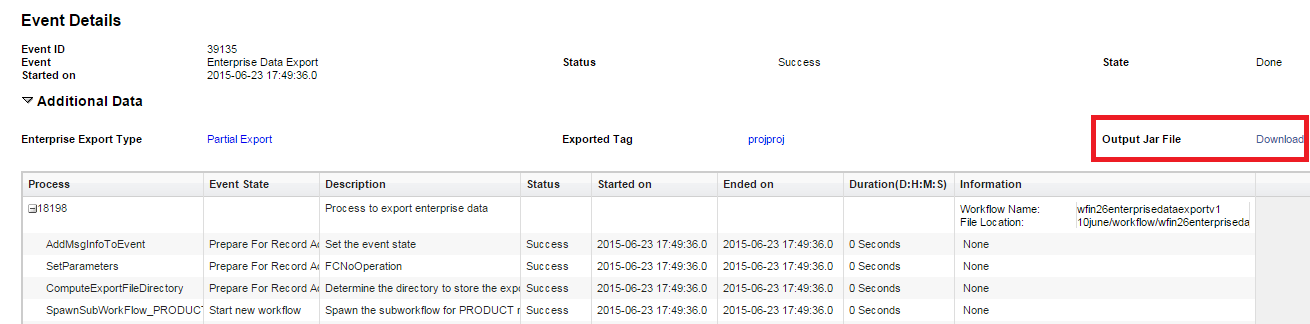

Link to Output Export File

Note:
The download link for the partial export will be available only if the partial export is successful. Click the Download link corresponding to the Output JAR File field.

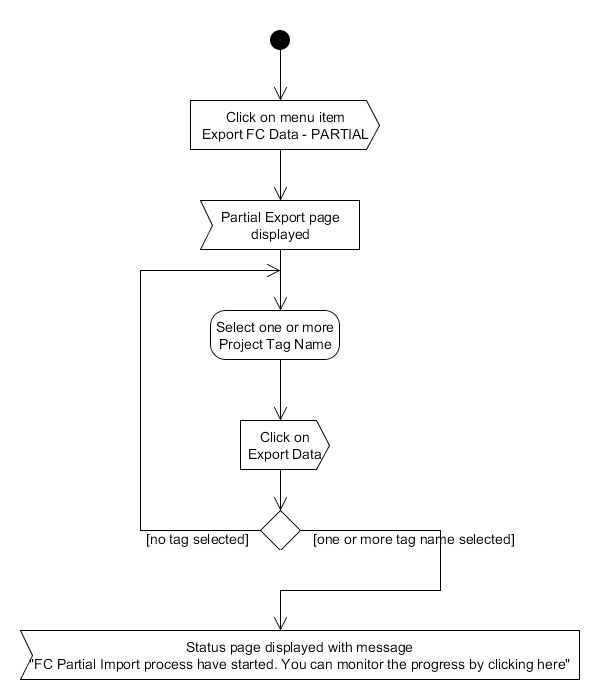

The control flow is described in the following diagram:

Partial Export of TIBCO Product and Service Catalog Data - Control Flow
