Creating Enterprise and Prepopulating Data

Create four or more enterprises.

Create BrandOwner Enterprise:

Create a BrandOwner Enterprise of type Supplier with Internal Name as bowner

Create a user admin with first name admin and last name admin. Assign the Work Supervisor and Admin roles to this user.

Import XML Pack for BrandOwner Enterprise, you can import an XML pack to prepopulate the enterprise with some data.
- Log in to the BrandOwner enterprise.

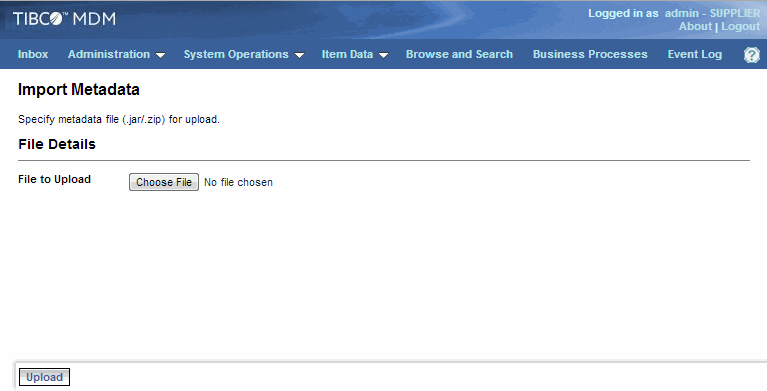

- Select System Operations > Import Meta Data.
- Provide the path to the following xml file: $MQ_COMMON_DIR/common/standard/samples/cim2cimmetadata/Brandowner/BrandOwner-MetaData.jar.
- Refer to Step 6 to view the data generated through XML pack import.

Create VeloselMarketplace Enterprise (This is just for subscription purposes. The real Velosel Marketplace Enterprise resides on Instance 2):

Create an Enterprise VeloselMarketplace of type Marketplace with Internal Name as Veloselm.

Create a user admin with first name admin and last name user.  Assign the Work Supervisor and Admin roles to this user.

Import XML Pack for VeloselMarketplace Enterprise, you can import an XML pack to prepopulate the enterprise with some data.
- Log in to the VeloselMarketplace enterprise.
- Select System Operations > Import Meta Data.
- Provide the path to the following xml file: $MQ_COMMON_DIR/standard/samples/cim2cimmetadata/VeloselMarketplace/VeloselMarketplace-MetaData.jar
- Refer to Step 6 to view the data generated through XML pack import.

Create Bottler1 Enterprise:

Create an Enterprise Bottler1 of type Supplier with Internal Name as Bottler1.

Create a user admin with first name admin and last name user. Assign the Work Supervisor and Admin roles to this user.

Import XML Pack for Bottler1 Enterprise, you can import an XML pack to prepopulate the enterprise with some data.
- Log in to the Bottler1 enterprise.
- Select System Operations > Import Meta Data.
- Provide the path to the following xml file: $MQ_COMMON_DIR/standard/samples/cim2cimmetadata/Bottler1/Bottler1-MetaData.jar.
- Refer to Step 6 to view the data generated through XML pack import.

Create Bottler2 Enterprise:

Create an Enterprise Bottler2 of type Supplier with Internal Name as Bottler2

Create a user admin with first name admin and last name user. Assign the Work Supervisor and Admin roles to this user.

Import XML Pack for Bottler2 Enterprise, you can import an XML pack to prepopulate the enterprise with some data.
- Log in to the Bottler2 enterprise.
- Select System Operations > Import Meta Data.
- Provide the path to the following XML file: $MQ_COMMON_DIR/standard/samples/cim2cimmetadata/Bottler2/Bottler2-MetaData.ja
- Refer to Step 6 to view the data generated through XML pack import.

Data generated through XML Pack Import: By importing the various XML packs, the respective enterprises are populated with the following:

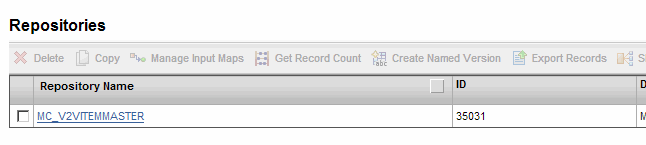

Repository: For example, MC_V2VITEMMASTER

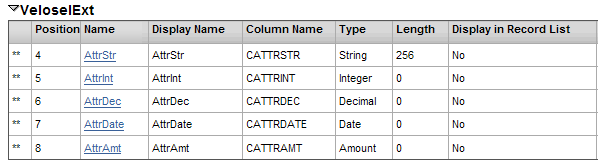

Attributes: some custom attributes in repository MC_V2VITEMMASTER

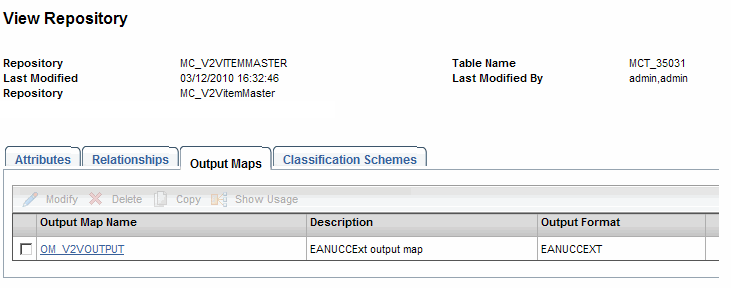

Output Maps: an output map OM_V2VOUTPUT based on the EANUCCExt Output format created in repository MC_V2VITEMMASTER

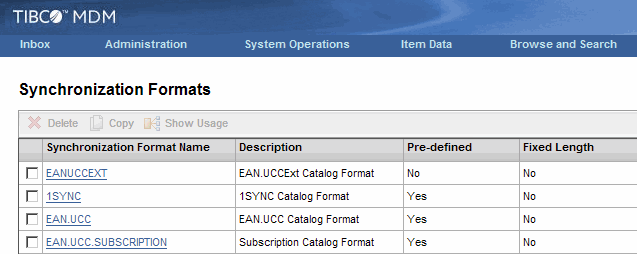

Synchronization Format: EANUCCEXT synchronization format with some custom attributes
The following Business Process rules are created:
- Brandowner enterprise: Custom Protocol Selection and Rulebase Selection
- VeloselMarketplace enterprise: Custom Protocol Selection, Rulebase Selection, and Repository Selection for Received Records
- Bottler1 and Bottler2 enterprises: Custom Protocol Selection and Repository Selection for Received Records

Procedure
