Clarity APIs

TIBCO Clarity provides a set of RESTful APIs. Integrated with Swagger, you can test these APIs in Swagger.

After launching TIBCO Clarity, click youraccount > Clarity APIs. The Clarity Swagger API page is displayed.

Note: In view mode, Clarity APIs are not available.

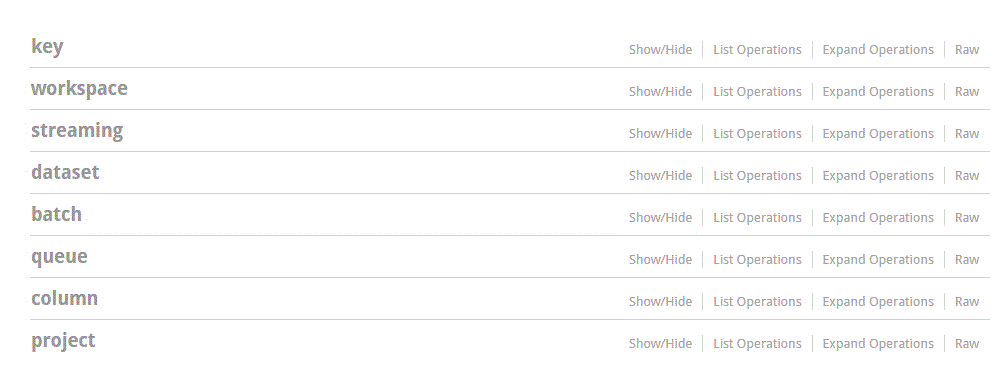

According to the function of each API, Clarity APIs can be classified into the following groups:
  • The key group contains a Generate Key API. You can use this API to generate an API key. This API key is used to authorize your account and is required when invoking Clarity APIs.
    Note: In the enterprise edition, the key group does not exist. The Generate Key API is moved to the workspace group and renamed as ApiKey.
  • The workspace group contains APIs used to manage datasets, such as clone, delete, or close datasets.

    A workspace is created when you launch TIBCO Clarity. It stores the datasets and projects that you have created.

  • The streaming group contains APIs used to manage streaming batch jobs, such as start a new streaming batch job, delete a streaming batch job, or query streaming batch jobs.
  • The dataset group contains APIs used to manage projects in a dataset, such as create, delete, or rename a project.
  • The batch group contains APIs used to manage batch jobs, such as create, delete, pause batch jobs, set source data of a batch job, and download batch job results.
  • The queue group contains APIs used to manage queues, such as create, delete a queue, query the queue schema, or list the queue names.
  • The column group contains APIs used to manage columns, such as delete and remove columns.
  • The project group contains APIs used to manage the project data in a project, such as refresh or download the project data.
  • Clarity API Tutorial
    This tutorial explains how to run a batch process/job on a different VFS data source and download the results to a desired VFS destination by invoking a set of Clarity APIs.
