Clarity API Tutorial

This tutorial explains how to run a batch process/job on a different VFS data source and download the results to a desired VFS destination by invoking a set of Clarity APIs.

Ensure that the data structures of the source file in TIBCO Clarity and the source file on which you want to perform the batch job/process in VFS are the same.

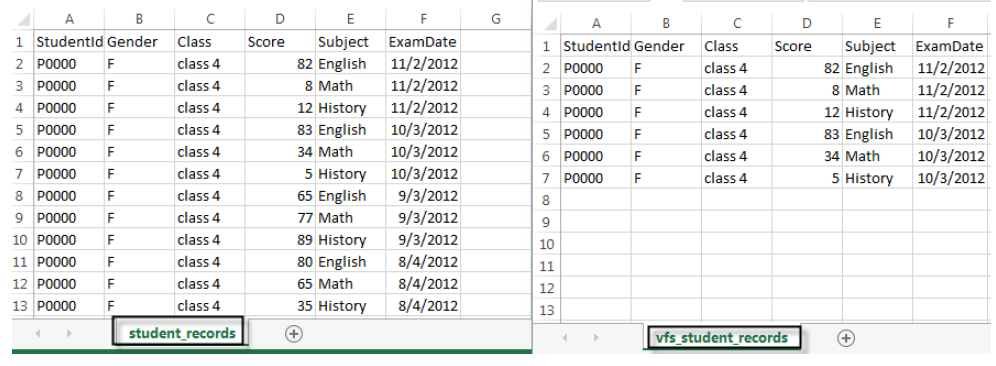

Take the Sample_students_records dataset as an example. There is a file named vfs_student_records on an FTP server. The file has the same data structure as the data source file used in the Sample_students_records dataset.



By invoking Clarity APIs, the batch operations performed on the Sample_students_records dataset can be applied to the vfs_student_records file on the FTP server.

    Procedure
  1. Click the project of the student_records dataset.
  2. On the project data page, double-click the Class column and change the column name to Class Number.
  3. Click Settings > Clarity APIs.
  4. Click workspace and select the get metadata of all projects and all datasets in user workspace operation. Click Try it out.
    In the Response Body area, you can find the dataset ID of the student_records dataset is 138382664536900 and the project ID of the project where you rename a column is 147382664541631.
  5. Click batch and select the Set source file used in batch job, must be apache VFS format operation. Configure the API parameters and click Try it out.
    dataset: 138382664536900
    source: students_records_new.csv
    new_value: http://54.227.201.75/vfs_student_records.csv
    The response status is OK if the source file format is correct.
  6. Click batch and select the Set Batch job result destination, must be apache VFS format operation. Configure parameters and click Try it out.
    dataset: 138382664536900
    new_value: ftp://test:test@54.227.201.75/batch_result
    The response status is OK if the destination file is accessible.
  7. Click batch and elect the Start a new batch job operation in the batch group. Configure the API parameters and click Try it out.
    dataset: 138382664536900
    project: 147382664541631

    The process/job ID is displayed in the response body.

  8. Click batch and select the Query one batch process using batch processId operation. Configure the API parameters and click Try it out.
    dataset: 138382664536900
    processId: batchProcess_1401181078549
    The job status becomes success when the batch job finishes successfully.
  9. Select the Download batch job result file according to processId operation in the batch group. Configure the API parameters and click Try it out.
    dataset: 138382664536900
    processId: batchProcess_1401181078549
    The status is OK when the batch job result is downloaded to the destination successfully.
Result

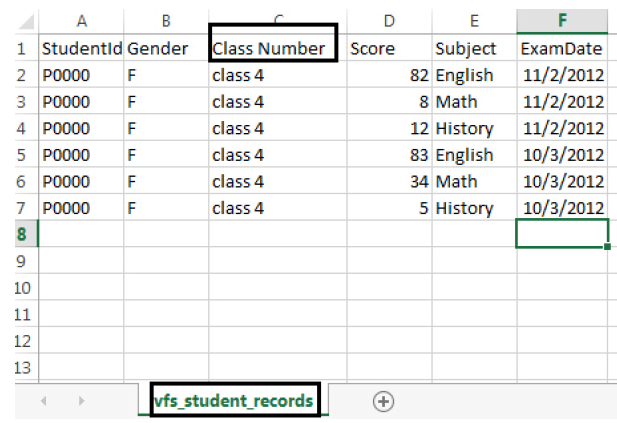

Go to the FTP server where the vfs_student_records file is located, and open the file. As shown, the column Class is changed to Class Number.
