Chapter 5 Repository Palette : Navigating the Repository Hierarchy

Navigating the Repository Hierarchy
The repository hierarchy in the project tree panel allows you to view repository servers, instances, directories, and objects. This section gives a brief overview of what you see.
Servers and Instances
Here’s an example of the first level of the hierarchy which shows both local and server-based instances:

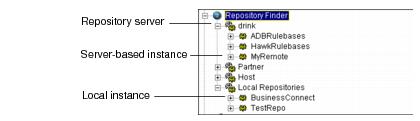

Figure 113 Local and Server Instances
At the first level of the hierarchy, you can see the following items:
Repository Server
A repository server manages repository instances. The instances can be local or remote, and can be files or stored in a database. The server uses TIBCO Rendezvous software to communicate with remote clients.
A repository server can support multiple remote repository instances. A repository server is identified by a name which must be unique among all repository servers on a network. The repository server communicates with repository instances via TIBCO Rendezvous.
Server-based Instance
A server-based instance can be on any computer on the network and can be in a file or a database.
Local Instance
A local instance is always a .dat file and accessed directly, not via TIBCO Rendezvous.
Directories and Objects
When you go lower in the hierarchy, you see repository directories and objects.
See Repository Directory and Repository Object for more information.

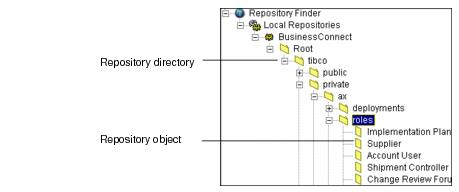

Figure 114 Repository Directories and Objects
Repository Palette
When you select Repository Finder or one of the resources below it in the project tree hierarchy, the Repository palette is displayed in the palette panel. Depending on the selected resource, you can either add a repository instance or a repository directory and object to the design panel.

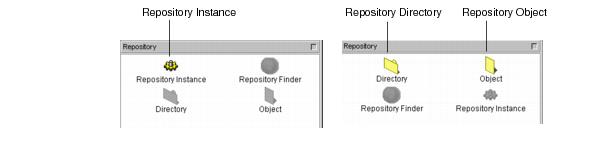

Figure 115 Repository Palette
Repository Instance
A repository instance is a named collection of data, usually metadata and configuration data that is persistently stored. A local repository instance is stored on the local file system and directly accessed by the client. A remote repository instance is managed by a repository server and accessed by a client using TIBCO Rendezvous.
See Introduction for information on the operations you can perform.
Repository Directory
A repository directory is a container for one or more directories as well as one or more objects. Directories are used for organizing objects so that they can then be referred to unambiguously.
Repository Object
A repository object is a container for the data. Data are organized as an ordered list of name:value pairs called an association list. In effect, an object is a named association list. The term object is used although there is no notion of inheritance or information hiding, nor does the object have any methods.
