Scriptable RCS Adapter

The scriptable RCS adapter allows you to integrate RCS environments not directly supported by TIBCO Designer into TIBCO Designer. The scriptable RCS adapter enables you to perform any required RCS operations in TIBCO Designer based on a custom script or program that you provide. The level of RCS integration with TIBCO Designer is flexible and can be suited for your business and project management needs.

The scriptable RCS adapter is simply a pass-through adapter. This means that the scriptable RCS adapter forwards RCS operation requests from TIBCO Designer to a script. To accomplish this level of integration the scriptable RCS adapter imposes a protocol (or interface) on RCS interactions that defines the arguments the script receives and what it is expected to return as results. It also means that the scriptable RCS adapter is subject to any limitations imposed by TIBCO Designer on the way that it uses RCS systems.

The scriptable RCS adapter communicates with your program by calling your script with specific arguments as defined by the scriptable RCS adapter protocol. In response to a request your script performs an operation that returns a response (by sending text to stdout). The response is parsed by the scriptable RCS adapter and displayed to the user in some specified way.

If your script does not use an RCS API, but forwards requests to an RCS system, it must perform extensive parsing of the output sent by the system and return output to the scriptable RCS adapter as specified later in this section. The language used to write your script has a significant impact on the complexity of the script.

Execution Environment

The script is typically called with a single argument indicating the command or action to be performed by TIBCO Designer. Commands that provide additional arguments to the script are indicated in the commands description (See the following sections).

Some RCS operations such as add, delete, and commit typically require a user comment. In such cases, the argument -comment is provided, followed by a quoted string indicating the text provided by the user. The general description of the host script is:

script command [-comment 'some text']

On execution, the script's current working directory is set to the TIBCO Designer project's root folder. Any file arguments required by an operation are passed using the standard input stream (stdin) of the script. All file paths are fully qualified. If the RCS system requires paths to be relative, the script implementation can remove the current working directory from the path provided.

If the requested operation returns a value, the value is passed using standard output (stdout) as text. If a command requests the return value to be true or false, the script will echo or print the textual value of the word true or false to stdout.

The exit value for the script should be zero (0) for normal or successful completion. If there's an error, the script can return a non-zero exit code, and write a message to standard error (stderr). In response to non-zero exit codes, TIBCO Designer displays the output found in stderr in a dialog.

User Authentication

The scriptable RCS adapter doesn't provide a mechanism to authenticate to a tool. The script can choose from a number of standard ways of storing usernames and passwords that match the security goals of your organization. It is recommended that you use the method provided by your RCS system to store usernames and passwords.

Special Files

There are two files that your script should be aware of:

•	Files named .folder

•	Files using the .substvar file extension

These files are important to scriptable RCS adapters that require parent directories to be registered with the RCS system [such as Subversion (SVN) or CVS]. If your system implicitly manages directories based on whether files are added or deleted, you can probably safely ignore these files and handle them as you would any other file in a project.

If your system requires special handling of directories, the add and delete operations must handle the parent directory as well. TIBCO Designer does not issue RCS commands for directories so these files also serve as parent directory notifications.

As can be inferred, an add operation involving these files also implies an add operation for the parent directory. A delete operation implies a delete of the file followed by a delete of the parent directory.

There are two general categories of commands sent by the scriptable RCS adapter: configuration commands and RCS Commands. The next section explains configuration commands. See page 77 for an explanation of RCS commands.

Configuration Commands

To provide better integration and flexibility, the scriptable RCS adapter sends several configuration commands to the script. These commands must return additional information that modifies how TIBCO Designer interacts with the scriptable RCS adapter and your script implementation.

The configuration commands are given in the next table.

Table 7 Configuration Commands

Command	Description
foldersRequireLockForParentWritability	Scripts should return true if the RCS system requires directories to be in editable or checked-out mode before items can be added or deleted from the directories.
foldersRequireRecursiveLock	This callback command implements restrictions on the editing and reverting of TIBCO Designer resources that are nested in folders. When the command is configured to true, TIBCO Designer requires that all folders leading to the desired resource be unlocked for editing. Similarly, when reverting, all folders containing the resource will be reverted and locked together.
specialVFileNames	This command is sent early on to the script to get a list of file names that should be ignored and hidden by TIBCO Designer. Each name should be returned in its own line. For example, SVN adds local RCS information to projects it controls. This information is stored in .svn directories. A script adapting SVN would return .svn as an ignored file name. Note that the names returned must match exactly the file names returned by the script. The scriptable RCS adapter doesn't apply any pattern matching to the specified name. If a valid project resource matches this name, it will be hidden from the user.
supportsCommit	This command returns true if your script can commit changes. If false is returned, the commit feature in TIBCO Designer is disabled and you must use your RCS system to commit your work.
supportsLocking	RCS systems that support locking keep files locked or non-editable unless they are checked-out for editing purposes. Scriptable RCS adapters are required to return true or to match this behavior. If the script returns true to this query and the file is locked, a user cannot edit the file unless the TIBCO Designer Acquire-Checkout command is applied to the resource in question. In response, TIBCO Designer sends the edit command to the script to perform the unlocking. Similarly, if the script returns true, revert operations will only be available when the resource is unlocked. This command is also required to return true even for RCS systems that don't enforce locking. The example SVN implementation (see page 80 ) returns true. This allows the system to revert, but TIBCO Designer will consider all files to be checked out.
supportsRecursiveLock	If the script returns true, and a user selects a container, the interpretation will edit or revert all contents. The scriptable RCS adapter forwards such requests as editRecursively or revertRecursively. If the script returns false, TIBCO Designer calls the scriptable RCS adapter (and your script) once per file and performs the recursion for you. In most cases the recursive operation performed by the script is much faster than recursion implemented by TIBCO Designer.
supportsSynchronize	This command is designed to be sent early on scriptable RCS adapter activation to determine if TIBCO Designer should enable its Synchronzie Project command. However, it is currently not supported by the scriptable RCS adapter. All the scripts return false to this request. The action to synchronize the project is disabled.
wantsCommentOnAdd	If the script returns true TIBCO Designer will prompt for user comments when performing an add operation.

RCS Commands

The RCS commands listed in the following table represent the RCS operations that are supported by TIBCO Designer. These commands are sent to your script based on user interaction with a TIBCO Designer project. The scriptable RCS adapter forwards the following commands from TIBCO Designer to the RCS system.

Table 8 Supported RCS Commands

Command	Description
add	This command adds a file to an RCS adapter. The command can be accompanied by the -comment flag followed by a quoted text message if the script returns true to wantsCommentsOnAdd. Scripts will ensure that it is legal to add the specified file, as other RCS restrictions such as adding parent directories may need to complete first. This logic will be implemented in your scriptable RCS adapter.
commit	This command submits all changes in the project to the RCS adapter. The command is accompanied by the -comment flag and a string typed by the user. If the commit fails due to out-of-date files or merge errors, the native RCS tools will be used to revert or integrate the changes. It is recommended that the commit implementation perform a release of configurations that were unlocked, but were not edited prior to the commit running. This removes files that show as having been edited in the RCS system when, in fact, they never changed. Similarly, an advanced script may want to perform an update after the commit to ensure that the user has the latest version of the project on disk. Returning false from supportsCommit disables this call.
commitPreview	This command is sent to the scriptable RCS adapter before a commit happens. The command will return text that describes the scope of the commit (such as what files will be committed). This information is presented to the user and, if approved, a commit operation follows. Note that while the preview shows what the commit will affect, the user cannot change the files that will be sent in the subsequent commit operation. If there are no files to commit, your script should return an error code, and write a message to stderr. An error dialog will be shown to the user with the message you provide.
delete	This command deletes files from RCS control. TIBCO Designer both sends the request and deletes the files.. The command is followed by the flag -comment and a user-entered comment. Depending on the RCS system, this comment may not be registered with the system because the edit may require a commit. In such cases it is safe to ignore the comment because it will be supplied during commit.
edit	This command is only sent when the script responds to supportsLocking with true and a file is locked in the file system. This means that RCS systems that do not lock files won't ever receive edit commands, because the files will never be read-only to the scriptable RCS adapter. When sent, the scriptable RCS adapter should issue an edit or checkout command for the file to put it into the appropriate edit mode and make it writable by the user. Edit command implementations will check if the file has been checked out or locked by another user and return an error in such cases. Similarly, it is valuable to implement an update edit type approach so that the user always edits the current version of the file.
editRecursively	This command is sent when the user wants to recursively edit the contents of a directory (and the directory itself, if appropriate). The argument provided is a directory path. The script should make all files and the directory editable. This command is called only if the script returns true from supportsRecursiveLock.
info	This command is sent in response to the user selecting the View RCS Info for Resource command in TIBCO Designer. The script should return information about the state of the resource by writing to stdout.
isRevisionControlled	This command informs TIBCO Designer whether a file is under revision control or not. When a file is not under revision control, TIBCO Designer displays a small yellow decoration next to its icon on the project tree. The status command returns true or false on stdout. The scriptable RCS adapter caches this information for the session unless the file is deleted from the project. After the file has been deleted, the request can be made again after the file is added back to the project.
revert	This command is sent in response to the user unlocking the file. In TIBCO Designer this means to abandon changes on the file and release it so other users can edit the file. The file will revert back to its initial contents.
revertRecursively	This command is sent when the user recursively reverts the contents of a directory (and the directory itself if appropriate). The argument provided is a directory path. The script should make sure all files and the directory are reverted. This command is only called if the script returns true from supportsRecursiveLock.
update	This command ensures that the user has the latest version of the project on disk.

Example Script Implementation

An example script for the scriptable RCS adapter follows. The script shows an integration with SVN for UNIX systems. The implementation is in Ruby.

There are two global variables in the script that must be defined to point to the correct locations on your system. They are as follows:

•	SVN. Points to the location of the Subversion revision control system directory.

•	SVN_LOG_FILE. Points to the location of the log file for the RCS system.

#!/usr/local/bin/ruby



# THIS CODE IS SAMPLE QUALITY CODE TO ILLUSTRATE INTERACTION BETWEEN THE

# SCRIPTABLE RCS ADAPTER AND TIBCO DESIGNER. SUITABILITY OR FITNESS FOR ANY

# OTHER PURPOSE IS NOT GUARANTEED NOR SUPPORTED.





# DEBUG TIP - save input/output to a file. In TIBCO Designer define the

# java property -DDEBUG_RCS_CMD=true, this will print the inputs and

# outputs of the process call.



# Some 'global' variables. Scripts that are deployed should probably

# obtain their configuration information from a file.

$SVN = "/opt/CollabNet_Subversion/bin/svn"

$SVN_LOG_FILE = "/home/tra/work/tmp/svnadapter.txt"



# A method to write errors to the stderr. It is more friendly as it

# provides context information from the script.

def logerr(message)

m = caller.first

$stderr.puts "#{m}: #{message}"

end



# A method to log messages to a file

def debug(message)

if($SVN_LOG_FILE != nil)

out = File.open($SVN_LOG_FILE, "a")

m = caller.first

out.puts "#{m}: #{message}"

out.flush

out.close

end

end



# returns the filename passed via stdin or nil if none

def getFileName()

filename = nil;

if $stdin.closed?

logerr("stdin is closed")

elsif $stdin.eof?

logerr("stdin reached eof!")

else

filename = $stdin.readline.chomp

end



return filename;

end



# Callback to return a list of files that should be ignored by TIBCO Designer

# for svn these are the '.svn' directories. TIBCO Designer will not show these

# files in the project. Return one file name per line, when specifying

# directories, TIBCO Designer will not traverse them, so no need to ommit names

# inside of ignored directories.

def specialVFileNames

$stdout.puts ".svn"

exit(0)

end



# Callback to return whether the RCS system supports file locking.

# For SVN this doesn't quite work because files are always writable.

# From the Svn's adapter perspective ALL files are always checkedout.

# If we return false, revert action is disabled.

# a lock.

def supportsLocking

$stdout.puts "true"

exit(0)

end





# The RCS integration infrastructure doesn't call this method unless you

# return true from supportsLocking AND the file is locked as read-only

# on the file system. SVN doesn't lock files in the file system so this

# method will never be called.

def edit()

exit(0)

end



def editRecursively(folderPath)

logerr("Non supported operation!")

exit(1);

end



# SVN requires that the folder containing a file added to revision control

# be under revision control. We use this to check for the existance of

# a ".svn" directory as this is a cheap check.

def can_add(path)

retVal = false

svnpath = nil

if(File.directory?(path))

svnpath = File.join(path,".svn")

elsif(File.file?(path))

dir = File.dirname(path)

svnpath = File.join(dir, ".svn")

end

return svnpath.nil? ? false : File.exist?(svnpath)

end







# Actual implementation to add files. Folders and substitution

# variables are treated similarly, because groups in substitution

# variables are just folders with additional '.substvar' files.

def do_add(path)

retVal = false;

fn = File.basename(path)

if(fn == ".folder" || fn.index(".substvar") != nil)

dir = File.dirname(path)

svnpath = File.join(dir, ".svn")

if(File.exists?(svnpath) == false)

parent = File.dirname(dir)

svnpath = File.join(parent, ".svn")

if(File.exists?(svnpath))

process = IO.popen("#{$SVN} add --non-recursive \"#{dir}\"", "r")

line = process.readline

unless line.nil?

if(line.index("A") == 0)

retVal = true

end

if(retVal == false)

logerr("#{line}")

end

end

end

end

end

if(can_add(path))

process = IO.popen("#{$SVN} add --non-recursive \"#{path}\"", "r")

line = process.readline

unless line.nil?

if(line.index("A") == 0)

retVal = true

end

if(retVal == false)

logerr("#{line}")

end

end

else

logerr("Unable to add #{path} to svn. The file is not in an svn managed directory.")

end

return retVal

end



# This is the method that we dispatch 'add' file requests

def add(file)

retVal = false;

if(file == ".folder")

if(do_add(File.dirname(file)))

retVal = do_add(file)

end

else

retVal = do_add(file)

end

exitCode = retVal ? 0 : 1;

exit(exitCode);

end



# Actual method that deletes things

def do_delete(file)

retVal = false

process = IO.popen("#{$SVN} delete --force \"#{file}\"", "r")

line = process.readline

unless line.nil?

if(line.index("D") == 0)

retVal = true

end

if(retVal == 1)

logerr("returned #{line}")

end

end



return retVal

end



# This is the method that we dispatch 'delete' path requests

# Check that the file really needs to be removed from RCS

def delete(comment)

retVal = false;

file = getFileName()

inrcs = do_isRevisionControlled(file);

if(inrcs)

retVal = do_delete(file)

if(retVal)

retVal = do_commit(file, comment)

end

end

if(retVal && inrcs)

fn = File.basename(file);

if(fn == ".folder" || fn.index(".substvar") != nil)

dir = File.dirname(file)

retVal = do_delete(dir)

if(retVal)

retVal = do_commit(dir, comment)

end

end

end

return retVal || inrcs ? 0 : 1

end



# This method returns the status of the project directory

# If there's nothing to check in we set the stderr with a

# message. The exit code of 1, will be interpreted as an error

# and TIBCO Designer will raise a Dialog.

def commitPreview()

retVal = 0;

cwd = Dir.getwd;



process = IO.popen("#{$SVN} status #{cwd}", "r")

lines = process.readlines

line = lines.join

if(line.length == 0)

$stderr.puts "Nothing to check-in!"

retVal = 1

else

$stdout.puts "#{$SVN} status #{cwd}:\n" << lines.join

end

exit(retVal);

end



# If the user provided a file, then TIBCO Designer had a selection. Only

# commit that file. Otherwise the entire project. Because SVN keeps

# track locally, we auto-commit deletions to try and clean up directories

# that are being deleted, in these cases we pass a specific file.

def do_commit(path, comment)

retVal = false

if(comment == nil || comment.length == 0)

comment = "[no comment supplied]"

end

process = nil

if(path.nil?)

process = IO.popen("#{$SVN} commit --non-interactive -m \"#{comment}\"", "r")

else

process = IO.popen("#{$SVN} commit --non-interactive -m \"#{comment}\" \"#{path}\"", "r")

end

lines = process.readlines

line = lines.join("\n")



if(line != nil && (line.index("Committed revision") != nil || line.index("Deleting") == 0) || line.length == 0)

retVal = true

end

if(retVal == false)

logerr(line)

end

return retVal

end



# The commit driver

def commit(comment)

exit(do_commit(nil,comment) ? 0 : 1);

end



# Performs an svn update recursively or for a single file depending on the

# user selection. Since svn will merge or create conflict files we interpret

# those as errors. A production version of a script would probably want to

# preview the update, and if there are conflicts or merges prevent the update.

# This way the user has a chance of reverting changes. Such implementation is

# left as an exercise.

def update(filename)

foundError = false

recurse = (filename == ".folder" || filename.index(".substvar") != nil)



inrcs = do_isRevisionControlled(filename)

if(inrcs)

process = nil

if(recurse)

process = IO.popen("#{$SVN} update --recursive \"#{filename}\"", "r")

else

process = IO.popen("#{$SVN} update \"#{filename}\"", "r")

end

lines = process.readlines

lines.each do |line|

status = line[0,1]

if(status == "C" || status == "G")

foundError = true

end

end

if(foundError)

$stderr.puts(lines)

end

end



exit(foundError ? 1 : 0)

end





def revertRecursively(folderPath)

logerr("Non supported operation!")

exit(1);

end



# Implementation of revert

def revert(filename)

retVal = false;

recurse = (filename == ".folder" || filename.index(".substvar") != nil)

inrcs = do_isRevisionControlled(filename)

if(inrcs)

process = nil

if(recurse)

process = IO.popen("#{$SVN} revert --recursive \"#{filename}\"", "r")

else

process = IO.popen("#{$SVN} revert \"#{filename}\"", "r")

end

lines = process.readlines.join("")

if(lines.length == 0 || lines.index("Reverted") != nil)

retVal = true;

else

$stderr.puts(lines)

end

else

retVal = true;

end

exit(retVal ? 0 : 1)

end



# implementation of info

def info(filepath)

svndir = File.join(File.dirname(filepath),".svn")

if(File.exists?(svndir))

process = IO.popen("#{$SVN} info \"#{filepath}\"", "r")

$stdout.puts process.readlines

else

$stdout.puts "#{filepath} is not in a svn manged directory"

end

exit(0);

end



# This callback controls whether folders require a

# recursive lock. If this returns true, a revert will trigger

# a recursive revert going up the project tree. Svn can revert

# individual files or folders.

def foldersRequireRecursiveLock()

$stdout.puts("false")

exit(0)

end



# This method is probably the most important and most frequently called.

# The results are cached by the ScriptableAdapter host. Essentially this

# tells TIBCO Designer whether the file is under revision control or not.

# Caution: TIBCO Designer WILL ask about child files that are in a container that

# is not revision controlled! Other methods call this to determine wether

# they should do any work or not.

def do_isRevisionControlled(filepath)

retVal = true

svndir = File.join(File.dirname(filepath),".svn")

if(File.exists?(svndir) == false)

logerr("The directory containing #{filepath} is not under svn control.")

retVal = false

elsif(File.exists?(filepath))

process = IO.popen("#{$SVN} status \"#{filepath}\"", "r")

lines = process.readlines

line = lines[0]

if(line != nil && line.index("?") == 0)

retVal = false;

end

else

# not yet on disk...

retVal = false;

end

return retVal

end



# The driver for status

def isRevisionControlled(filepath)

status = do_isRevisionControlled(filepath)

$stdout.puts status

exit(0)

end



#The Script always returns false to this command. All updates must be performed using the RCS's tools

def supportsSynchronize()

$stdout.puts "false"

exit(0)

end



def foldersRequireLockForParentWritability()

$stdout.puts "false"

exit(0)

end



# Let TIBCO Designer recurse it for us. Returning true from here

# could improve performance for some edit/revert operations

# at the expense of implementing recursive

def supportsRecursiveLock()

$stdout.puts "false"

exit(0)

end



# if true, TIBCO Designer will ask for comments on add

def wantsCommentOnAdd()

$stdout.puts "false"

exit(0)

end



# if false, TIBCO Designer won't allow commits via the RCS adapter

def supportsCommit()

$stdout.puts "true"

end







# This tells ruby, that this is only executable if the name

# of the program matches the file.

if __FILE__ == $0



require 'getoptlong'

# The script will be called with 1 or 3 arguments. The first argument

# is the name of the command. If TIBCO Designer collected a comment, the

# the option '-comment' is passed along with a quoted string. Depending

# on the script or RCS system, that comment may or may not be usable.

# The name of the file to operate on is passed via stdin. Currently

# rcs adapters only pass one file at a time.

# extract the command $* is the argv in ruby

command = $*.shift

# see if we have a comment flag, if we do extract the comment.

index = $*.index("-comment")

comment = nil;

unless index.nil?

comment = $*[index+1]

end



# if the command is empty put nonsense in it, to prevent dispatching

if command.nil?

command = "..."

end

case command

when "edit" then edit();

when "editRecursively" then editRecursively(getFileName());

when "add" then add(getFileName());

when "delete" then delete(comment);

when "commitPreview" then commitPreview();

when "commit" then commit(comment);

when "revert" then revert(getFileName());

when "revertRecursively" then revertRecursively(getFileName());

when "update" then update(getFileName());

when "info" then info(getFileName());

when "isRevisionControlled" then isRevisionControlled(getFileName());

when "foldersRequireLockForParentWritability" then foldersRequireLockForParentWritability();

when "foldersRequireRecursiveLock" then foldersRequireRecursiveLock();

when "supportsCommit" then supportsCommit();

when "supportsLocking" then supportsLocking();

when "supportsRecursiveLock" then supportsRecursiveLock();

when "supportsSynchronize" then supportsSynchronize();

when "specialVFileNames" then specialVFileNames();

when "wantsCommentOnAdd" then wantsCommentOnAdd();

else

logerr("Unknown command '#{command}'")

exit(1)

end

end

Working with the Scriptable RCS Adapter

This section explains how to work with the scriptable RCS adapter on UNIX operating systems using the example SVN script implementation (See page 80). SVN is an open-source version control system that is not directly supported by TIBCO Designer.

Prerequisites

To integrate SVN into TIBCO Designer using the scriptable RCS adapter, ensure that following procedures have been taken.

•	Install SVN software. Download the installer from http://subversion.tigris.org/project_packages.html.

−	SVN server must be installed and running.

−	An SVN client must be installed on the machine where TIBCO Designer runs.

•	Get the address of the SVN server and the port number on which it’s running.

•	Ensure that you have the appropriate permissions required to work in the SVN server.

•	Create an SVN Repository to store your RCS Adapter project data.

•	Install Ruby. Ruby is an open source programming language that is used to implement the example script. See http://www.ruby-lang.org/ for details. Download the installer from http://www.ruby-lang.org/en/downloads/.

•	Create a script or program based on the scriptable RCS adapter protocol. In this case, the example script is used.

•	Grant the executable permission to your script or program.

Creating or Modifying a Scriptable RCS Adapter Project

To Create a Scriptable RCS Adapter Project, follow these steps:

1.	Start TIBCO Designer.

2.	Select New empty project.

3.	In the Save Project dialog, specify the project directory in the Project Directory field.

4.	In the Multi-User System drop-down list, select Scriptable RCS Adapter.

5.	Provide the path to your script or program in the Script field.

6.	Leave the Interpreter field empty when using UNIX systems.

If you are working on Windows operating systems and do not use .bat or .exe as your script, you must provide the path to the tool used to implement your script or program in the Interpreter field. For example, C:\ruby\bin\ruby.exe.

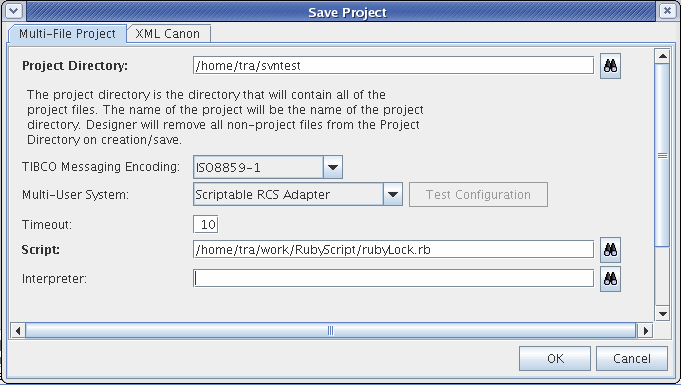

Figure 27 Save Project Options for a Scriptable RCS Adapter

7.	Start using the SVN repository that you created by doing a checkout of the RCS Scriptable Adapter project. For example, execute the following command using a shell:

./svn checkout svn://localhost:9133/ /home/tra/svntest

8.	Select the Project root folder, right click and select Add Resource to RCS.

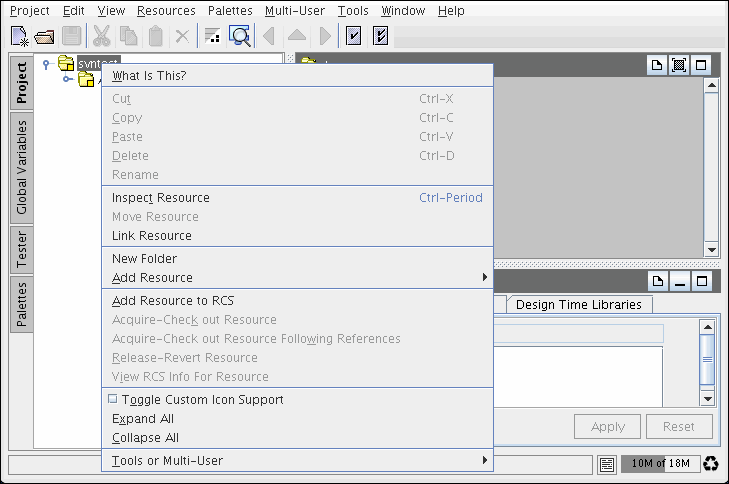

Figure 28 SVN Add Resource to RCS

9.	Select Multi-User > Check in Changes to check the project in SVN.

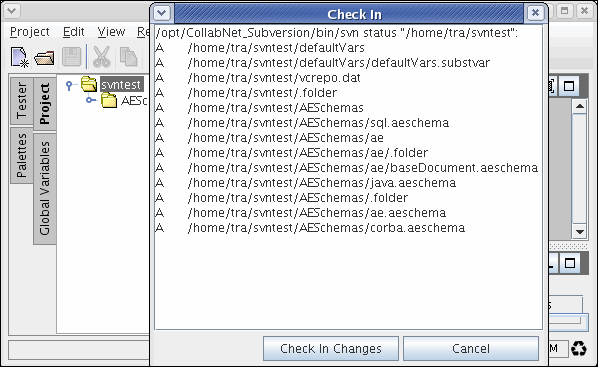

Figure 29 SVN Check In Dialog

To Modify a Scriptable RCS Adapter Project, follow these steps:

1.	Open the project.

2.	Modify the project, save it, then click Multi-User > Check In Changes.

If a new resource has been added to the project, it must first be added to the RCS using Add Resource to RCS before checking in the changes.

Copyright © Cloud Software Group, Inc. All Rights Reserved
