Event Streaming by Using Apache Kafka

Event streaming exposes the internal events that are generated in GridServer so that users can use the information for purposes such as monitoring. You can stream component-wise events by using Apache Kafka Message framework.

Configuring Event Streaming

Prerequisites

Procedure

  1. Log in to the GridServer Administration Tool with an account that has a Security Role with the Manager Configuration Edit feature enabled.

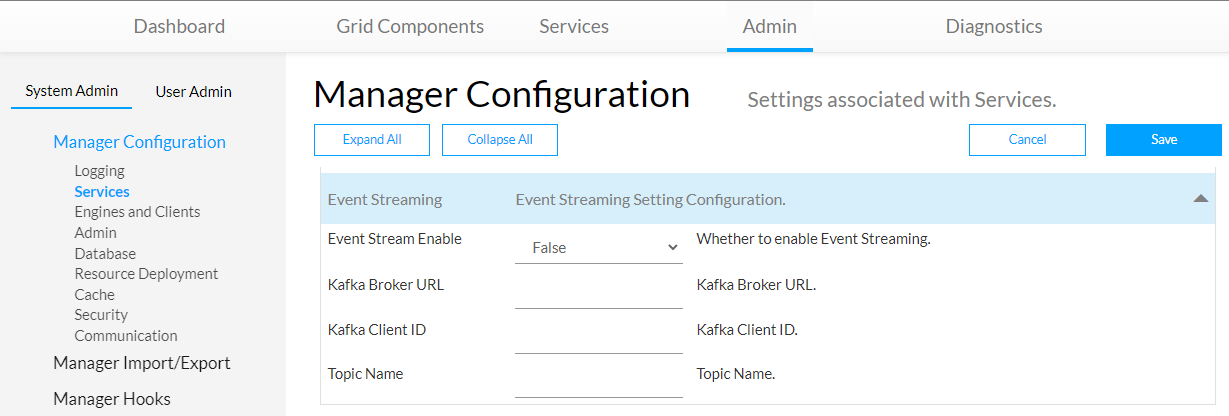

  2. Go to Admin > System Admin > Manager Configuration > Services > Event Streaming.

  3. On the Director, configure the values in the Event Streaming section. You can configure Kafka settings on the Primary and the Secondary Director.

    Manager Configuration



    Refer the following table to configure the Manager:

    Property Value
    Event Stream Enable

    Whether to enable event streaming.

    If it is set to True, you must also set the Kafka Broker URL, Kafka Client ID, and Topic Name properties.
    Kafka Broker URL

    Kafka Broker URL.

    The URL format must be:

    Kafka installed Machine HostName:Port Number.
    Kafka Client ID

    ID of the Kafka Client

    If you use event streaming, the Kafka Client ID value is appended with _Broker for a Broker and _Director for a Director.

    For example, if you enter the Kafka Client ID as Grid_Client, it is appended as follows:

    For Broker: Grid_Client_Broker

    For Director: Grid_Client_Director
    Topic Name Name of the topic

  4. Click Save.

Events Captured by Apache Kafka

The following events are captured by using Apache Kafka for GridServer:

Events Description
Broker Added Broker is added to the Director
Broker Removed Broker is removed from the Director

Driver Added

 Driver is added to the Broker
Driver Removed Driver is removed from the Broker
Engine Added Engine is added to the Broker
Engine Blacklisted Engine is blacklisted
Engine Daemon Added Engine Daemon is added to the Director
Engine Daemon Removed Engine Daemon is removed from the Director

Engine Died

 Engine dies (did not log off properly)

Engine Greylisted

 Engine is greylisted

Engine Removed

 Engine is removed from the Broker
Memory Warning Server exceeds the configured threshold of memory usage
Service Session Cancelled Service session is cancelled
Service Session Completed

Service session is completed
Service Session Started Service session starts
Task Assigned Task is assigned to an Engine

Task Completed

 Task is completed
Task Error Task fails

Task Submitted

 Task is submitted to the Broker
Note:

These events are recorded in the log file generated over Apache Kafka. You can also specify a custom log directory in the server.properties file of Apache Kafka. To capture streamed events, write your own consumer code.
