Configuring Engine Instrumentation

The GridServer Manager can use the engine_ins table, which contains details of the Engine balancing process.

Engine Instrumentation Requirements

To configure a database for Engine Instrumentation, you must have a supported third-party database. For a list of supported databases, see the readme file included with TIBCO GridServer®.

To Configure Engine Instrumentation

To configure Engine Instrumentation, you must perform the following steps:

1. Install the GridServer Manager and the GridServer Engine
2. Task A Configure the Database
3. Task B Configure the Manager(to use the database)
4. Restart the Manager (The JDBC JAR file is picked up by the Manager only after a restart.)

Task A Configure the Database

Create the table engine_ins in any supported database (Oracle, PostgreSQL, MSSQL). Use the syntax provided in the engine-ins-readme available in the DS_MANAGER/webapps/livecluster/WEB-INF/etc/db directory.

Task B Configure the Manager

  1. Log in to the GridServer Administration Tool with an account that has a Security Role with the Manager Configuration Edit feature enabled.

  2. Go to Admin > System Admin > Manager Configuration > Services > Engine Instrumentation.

  3. Configure the values in the Engine Instrumentation section on Primary Director by using the appropriate values given in the following table:

    Note that the hostname is the name of the host and dbName is the name of the database.

    Property Value
    Oracle
    Database URL jdbc:oracle:thin:@hostname:1521dbName
    Database Driver oracle.jdbc.OracleDriver
    Microsoft SQL Server
    Database URL

    jdbc:sqlserver://hostname:1433;DatabaseName=dbName; SelectMethod=cursor

    (SelectMethod=cursor is required)
    Database Driver com.microsoft.sqlserver.jdbc.SQLServerDriver
    PostgreSQL
    Database URL jdbc:postgresql://hostname:5432/dbName
    Database Driver org.postgresql.Driver

  4. Copy the corresponding JDBC driver's JAR file to the following Manager's directory: DS_MANAGER/webapps/livecluster/WEB-INF/lib.

  5. Restart the GridServer Manager.

To view the data, you require an account that has Security Role with the Engine Instrumentation feature enabled. The data can be viewed from the UI at Diagnostics > Engine Instrumentation.

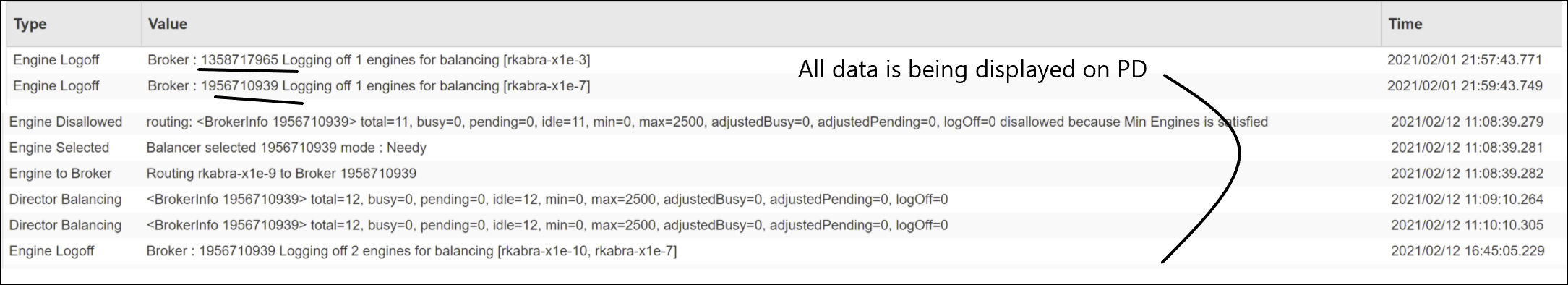

On the Director

Here, you can see two Brokers: 1358717965 and 1956710939 and related information.

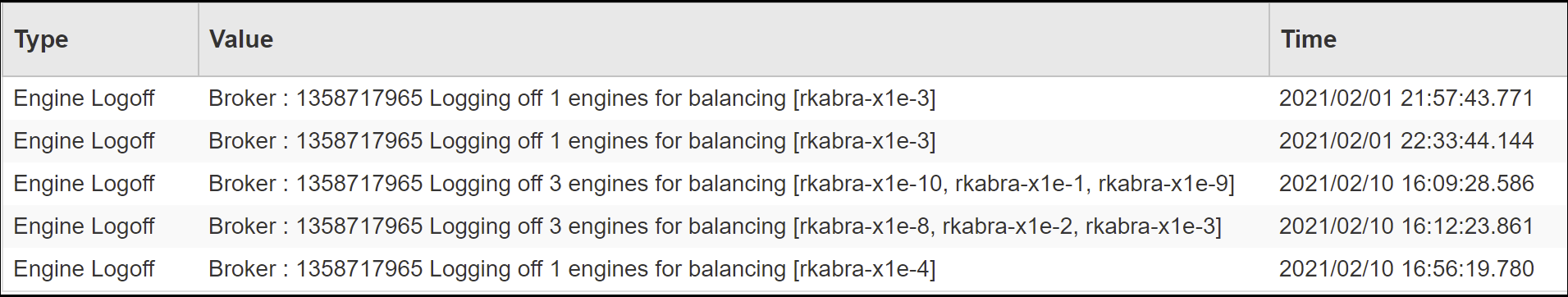

On the Broker

Here, the Broker 1358717965 contains only the data specific to it.
