Using the Graph view

Graph view applied to the repository

You can apply the EBX® Graph View Add-on to the EBX® Information Governance Add-on repository and exported data as highlighted below.

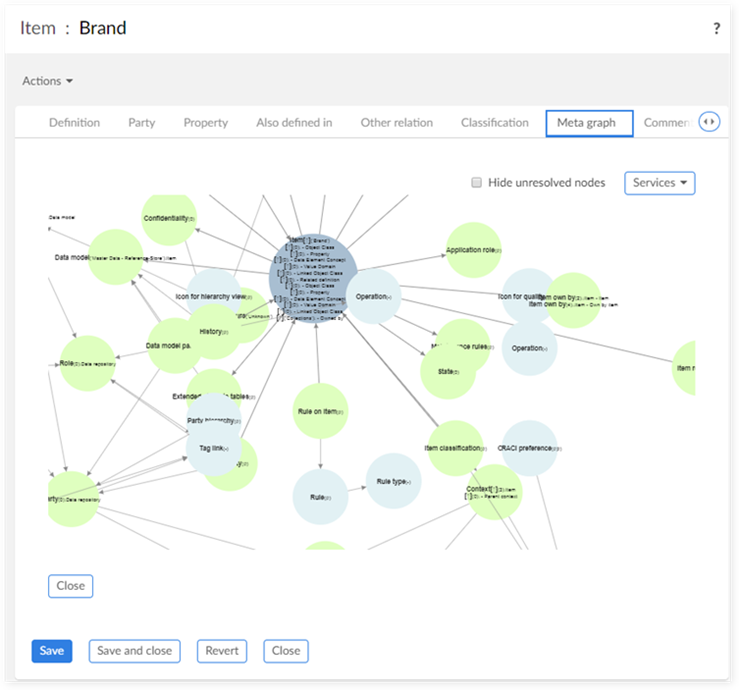

When viewing an Administered item, the 'Meta graph' tab shows a graph view of the selected item in relation to its metadata contained in the current governance repository. From this view, you can query the metadata and use services to perform other actions by clicking on the nodes.

/Graph_View_Applied_To_The_Repository.png

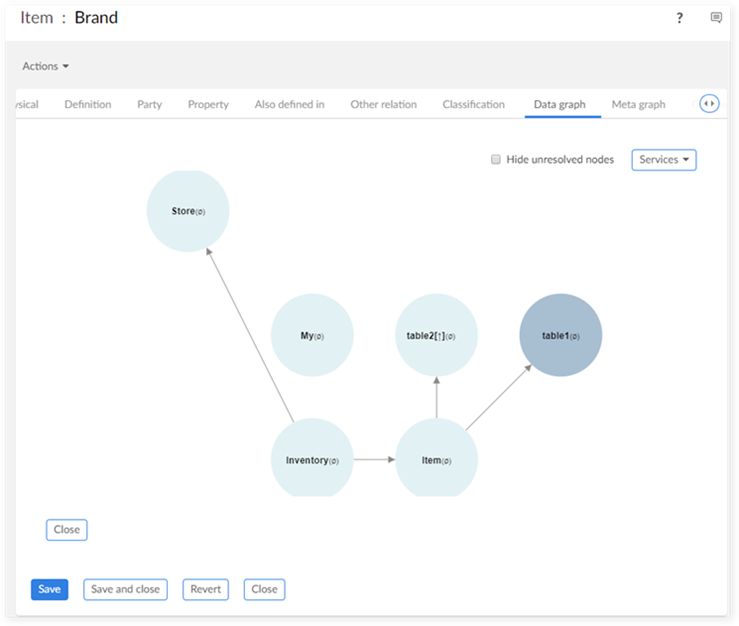

When the selected Administered item is a type of 'Object Class', the additional 'Graph' tab is available. It allows you to see the graphical view of the data model under the governance process. The EBX® Graph View Add-on must have previously been enabled for this table in order to the 'Graph' tab.

/Graph_View_Applied_To_The_Repository_2.png

Attaining your preferred node arrangement

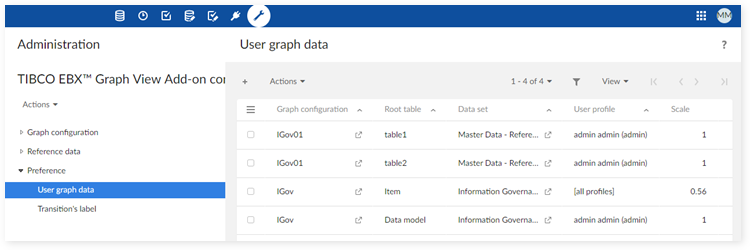

You can make your own node arrangement and save node positions using the 'Save layout' service. You also can reuse an existing arrangement for a data model by duplicating the records in the 'User graph data' table located under the Administration tab 'TIBCO EBX® Graph View Add-on' configuration domain (please refer to the EBX Graph View Add-on documentation for additional information).
