Archiving management

Archiving overview

You can specify that the add-on automatically archive monitoring log data based on the log size, or by configuring the EBX® scheduler.

Archiving based on the size of the log data

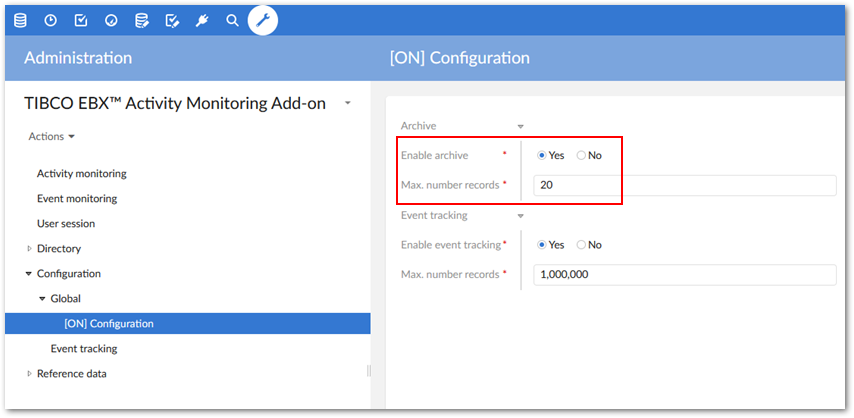

You can locate archive configuration settings under the 'Administration' → 'Repository management' → 'TIBCO EBX® Activity Monitoring Add-on' → 'Configuration' → 'Global' table's '[ON] Configuration' record. The 'Max number records' property declares the maximum number of stopped operations that the add-on can record before archiving older records. To activate the archive feature, set the 'Enable archive' property to 'Yes'.

/archive_setting.png

Archiving based on the EBX® scheduler

To apply the archiving process based on the EBX® scheduler, the task '[built-in] Monitoring clean up' must be used.

Each time the '[built-in] Monitoring clean up' is run, all stopped operations in the monitoring data are archived.

Restoring the archive files

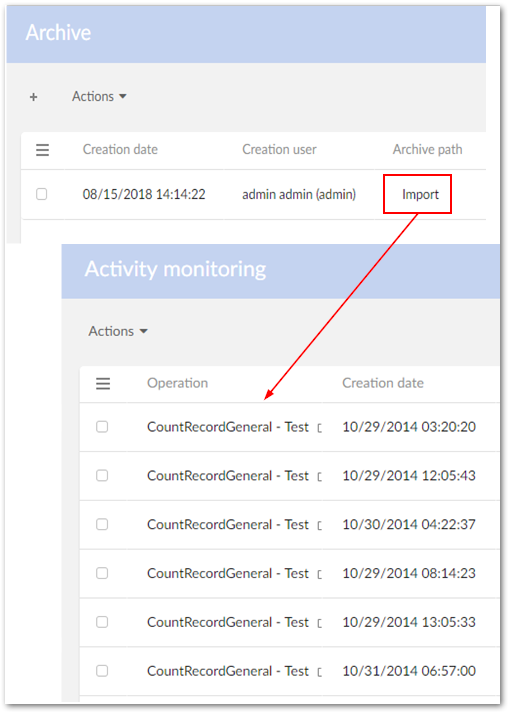

The archive files and the restore process are located in the 'TIBCO EBX® Activity Monitoring Add-on - Archive' data space. The action 'Import' allows you to load the archive file into the table 'Activity Monitoring'.

/import_archive.png
