Dashboards

Automated profiling dashboards

Dashboards generated when running the automated Launch data profiling service have an overview and a level you can drill down into and see more details on individual fields. The following image and table highlight the overview mode:

The following image and table highlight the options when viewing field details:

/automated-profiling-1.png

1)

Indicators that measure table data dimensions.

2)

Indicators for each of the table's fields. The indicator and dimension used at the top level depend on the field's data type.

3)

Double-click the icon to drill down and view additional indicators applied to each field.

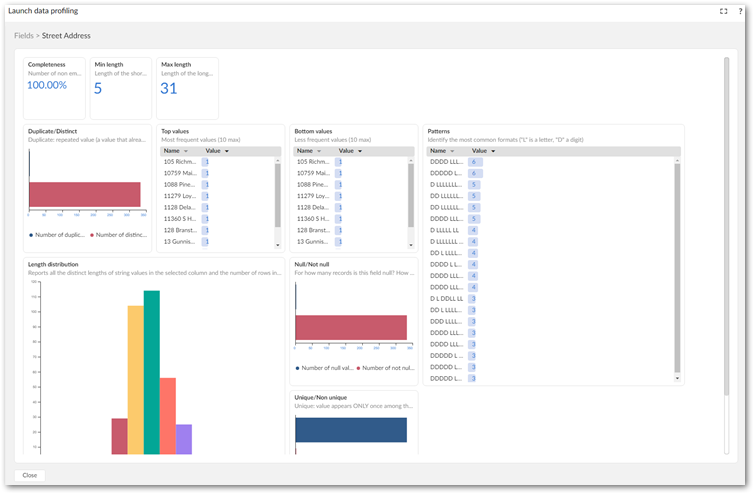

The following image shows an example dashboard after double-clicking to view additional field indicators:

/automated-profiling-2.png

Manually created profiling dashboards

Dashboards have the following two modes: view and edit.

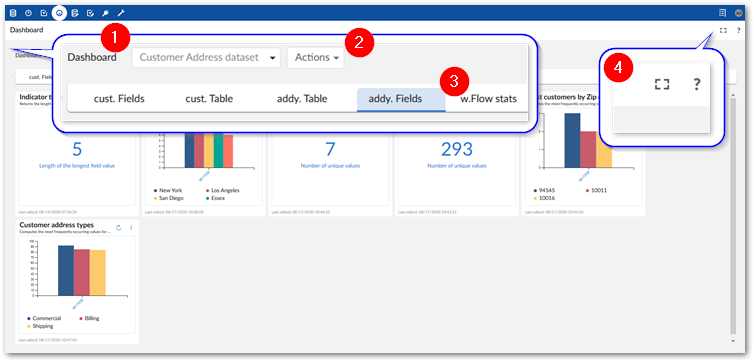

The following image and table highlight options in the view mode:

/dashboard-ui-view-mode-1.png

1) The Dashboard menu:

Displays the name of the current dashboard and allows you to select another one to display.

2) The Actions menu:

This menu contains the following services and allows you to:

  • Create a new dashboard

  • Edit dashboard: Edit the currently selected dashboard by adding and removing indicators and sections.

  • Configure dashboard: Change configuration settings for the currently viewed dashboard. This service allows owners to set dashboard specific permissions, such as ownership and sharing. Additionally, you can access the Theme settings tab to manage the theme associated with this dashboard. See the description below for more details.

  • Configure theme: Change the theme settings that determine display settings for this dashboard. The theme set at the dashboard level applies to all sections and indicators in the dashboard. However, you can override this behavior by specifying other themes and display options for individual indicators.

3) Section tabs:

Each tab displays the section name and highlights the currently viewed section.

4) Fullscreen and help icons:

Opens the dashboard in fullscreen mode and accesses the online documentation, respectively.

The following image and table highlight options available only in the edit mode:

/dashboard-ui-edit-mode-1.png

1) View icon:

Returns the dashboard to view mode.

2) Section tab options:

Double-click to change the section name, or select the 'x' icon to delete it.

3) Add section icon:

Creates a new section in this dashboard.

4) Add indicator icon:

Creates a new indicator in this section.
